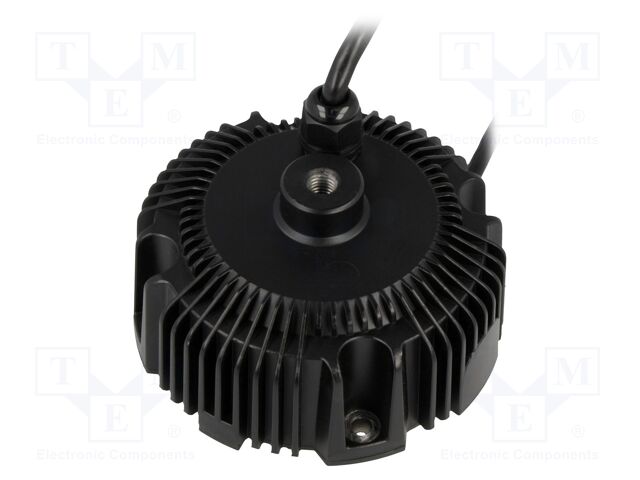

Mean Well Led Driver Psu, Ac-Dc, 36V, 2.7A - HBG-100-36A

<p><b>Features:</b></p> <p>Constant Current mode output</p> <p>MEAN WELL patented circular metal housing with class Ⅰ design(Patent No.:CN201220314551)</p> <p>Built-in active PFC function</p> <p>IP67 / IP65 rating for indoor or outdoor installations</p> <p>Function options: output adjustable via potentiometer; 3 in 1 dimming;DALI</p> <p>Typical lifetime > 50000 hours</p> <p>5 years warranty</p> <p></p> <p><b>General Specification:</b></p> <p>AC input voltage range:90~305VAC 127~431VDC(please refer to "STATIC CHARACTERISTIC" section</p> <p>AC inrush current (Typ.):COLD START 60A (twidth =550μs measured at 50% Ipeak) at 230VAC ;per NEMA 410</p> <p>AC adjustment range:24V: 2.4~4A , 36V: 1.62~2.7A, 48V: 1.2~2A, 60V: 1~1.6A</p> <p>Over voltage protection:24V: 28~35V, 36V: 41~49V ,48V: 54~63V, 60V: 65~75V ,Shut down o/p voltage, re-power on to recovery</p> <p>Over current protection: 95~108% Constant current limiting</p> <p>Over temperature protection: Shut down o/p voltage, re-power on to recovery</p> <p>Withstand voltage:I/P-O/P: 3.75KVAC ,I/P-F/G: 2KVAC ,O/P-F/G: 0.5KVAC</p> <p>Working temperature: Ta=-40 ~ +85ºC (please refer to "OUTPUT LOAD vs TEMPERATURE"section</p> <p>Safety standards:UL8750(type”HL”),CSA C22.2 No.250.13-12;ENEC EN61347-1,EN61347-2-13, independen,EN62384,GB19510.1,GB19510.14,BIS IS15885(for 36A,48A,60A only), EAC TP TC 004, IP65 or IP67 approved</p> <p>EMC standards: Compliance to EN55015, EN61000-3-2 Class C (@load≧60%）；EN61000-3-3,GB17743 and GB17625.1; Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level(surge immunity :Line-Earth:4KV,Line-Line:2KV),EAC TP TC 020</p> <p>Isolation resistance:I/P-O/P,I/P-F/G,O/P-F/G: 100M Ohms/500VDC/25ºC/70% RH</p> <p>Dimension (DxH) (mm):130x 66.5</p>

Mingweft power suppliers worldwide (DC output) ranked the third and the top 2 power plants mostly use ODM/OEM as the main source of revenue, while 99% of the proceeds come from standard power supply, is a power supply manufacturer with its own brand - MEAN WELL as the main operating strategy. The product is highly efficient and high quality and is generally covered by 3 years warranty

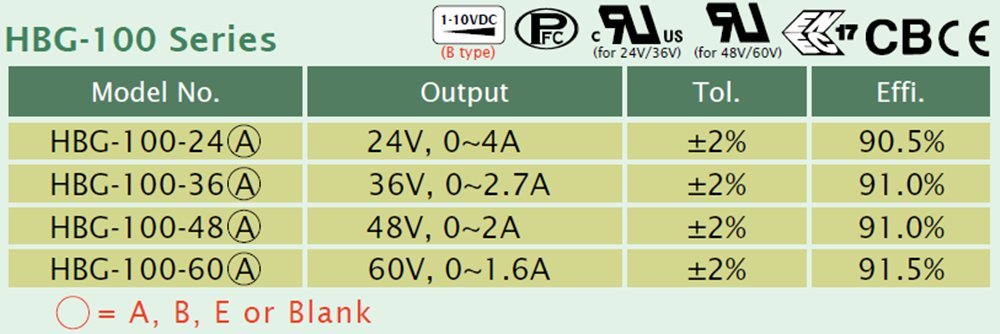

<b>Features</b><br>Constant current mode (HBG-60/100) Constant voltage+constant current modes (HBG-160/240)<br>Universal AC input (up to 305VAC)/ Full range (up to 295VAC for HBG-60)<br>High efficiency up to 93.5%<br>Patented metal housing design for HBG-100/160/240 (Patent No.: CN201220314551) Fully isolated plastic case (HBG-60)<br> Type HL LED Driver for use in Class I, Division 2 hazardous location luminaires (HBG-100/160)<br> Isolation class II, no F.G. (HBG-60)<br>Class 2 power unit (HBG-60) HBG-60 HBG-100 HBG-160 HBG-240<br>Suitable for dry, damp, and wet location<br>Protections: Short circuit / Over current / Over voltage / Over temp. (Short circuit / Over temp. for HBG-60)<br>Multiple models for HBG-100/160/240 A-Type: IP65 rated. Constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) Blank Type: IP67 rated. Cable for I/O connection<br>Optional CCC (100~240W) & RCM models available<br>5 years warranty
