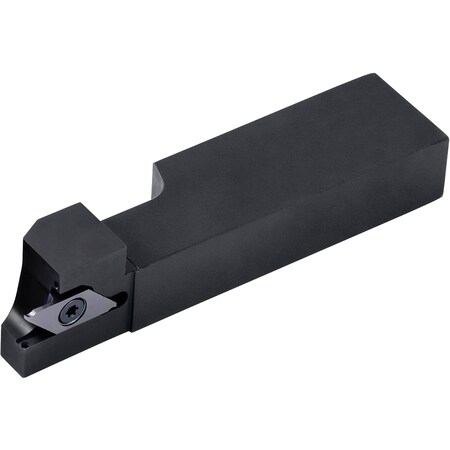

KTKFR 82516JCT

<li>Hand of Holder: Right-Hand</li><li>Series: KTKF-JCT</li><li>Toolholder Style: KTKF-JCT</li><li>[CDX] Max Depth of Cut (Decimal Inch): 0.3780</li><li>[CDX] Max Depth of Cut (mm): 9.60</li><li>[H] Shank Height (Decimal Inch): 0.6250</li><li>[H] Shank Height (mm): 15.88</li><li>[HF] Cutting Edge Height (Decimal Inch): 0.6250</li><li>[HF] Cutting Edge Height (mm): 15.875</li><li>[B] Shank Width (Decimal Inch): 1.0000</li><li>[B] Shank Width (mm): 25.40</li><li>[LF] Functional Length (Decimal Inch): 4.7500</li><li>[LF] Functional Length (mm): 120.65</li><li>[OAH] Overall Height (Decimal Inch): 0.9000</li><li>[OAH] Overall Height (mm): 22.86</li><li>[LH] Head Length (Decimal Inch): 0.9010</li><li>[LH] Head Length (mm): 22.89</li><li>[LN] Neck Length (Decimal Inch): 1.5820</li><li>[LN] Neck Length (mm): 40.18</li><li>[WF] Cutting Edge Distance (Decimal Inch): 0.6250</li><li>[WF] Cutting Edge Distance (mm): 15.88</li><li>[MHD] Mounting Hole Distance (Decimal Inch): 0.9840</li><li>[MHD] Mounting Hole Distance (mm): 24.99</li><li>[MHD2] Mounting Hole Distance Secondary (Decimal Inch): 1.8110</li><li>[MHD2] Mounting Hole Distance Secondary (mm): 46.00</li><li>Coolant Through: Yes</li><li>Insert Holding Method: Insert Screw</li><li>Multi-Use Tool: No</li><li>Application: Cut-Off</li><li>Toolholder Material: Steel</li><li>Unit of Measure: Inch</li><li>Compatible Insert Hand: Right-Hand</li><li>Compatible Inserts (Partial): TKFL16R…</li>
