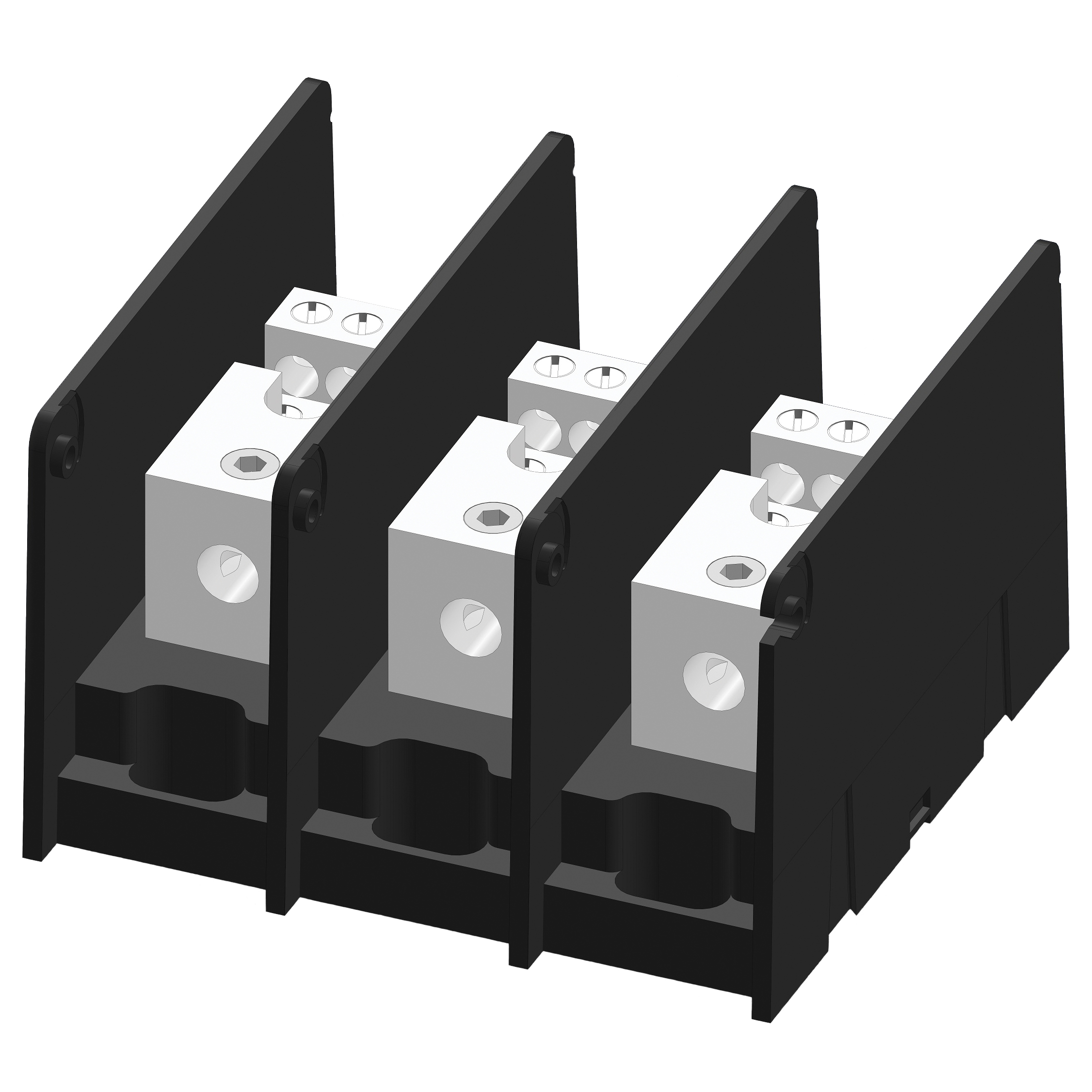

<p>Mersen MPDB67493 Power Distribution Block</p><p>Mersen Power Distribution Block, Intermediate Open Style, Series: MPDB, 600 VAC, 380 A, 3 Pole, 1 Primary Connections/Pole, 18 Secondary Connection/Pole, 4 AWG to 500 kcmil, 14 to 10 AWG Wire, 100 kA Short Circuit, Polycarbonate, TiN Coated, Black, 5.28 in W x 5 in D x 3.25 in H Dimensions</p><p><strong>Additional Description:</strong> MERS-MPDB67493 MPDB Series UL 1953 1000V 310A - 380A AL INT 3-Pole 1 - 18 500-#4 #10-#14</p><p><strong>Catalog Description:</strong> Open-Style PDB UL 1953 1000V 310A Tin-plated Aluminum - 380A 3-Pole 1 - 18 openings; 500-#4 --- #10-#14 Box to Box</p>

' Power Distribution Block, Max. Amps 380, Number of Poles 3, Primary Connections/Pole 1, Primary Wire Range (AWG) 4 AWG to 500 MCM, Secondary Connection/Pole 18, Secondary Wire Range (AWG) 14 to 10 AWG, Voltage Rating 600VAC/DC, Power Distribution Block Design Open, Length 5.00 In., Depth 3.25 In., Width 5.28 In., Standards UL 1953, CSA Class 6228-01 '

This efficient aluminum block splices cables or splits primary power into a wide range of secondary circuits and provides a fixed tap-off point. It accepts aluminum or copper wire, and saves splicing and taping time for contractor rework.<br /><br /> Item: Power Distribution Block<br /> Max. Amps: 380<br /> Number of Poles: 3<br /> Primary Connections/Pole: 1<br /> Primary Wire Range (AWG): 4 AWG to 500 MCM<br /> Secondary Connection/Pole: 18<br /> Secondary Wire Range (AWG): 14 to 10 AWG<br /> Voltage Rating: 600VAC/DC<br /> Power Distribution Block Design: Open<br /> Length: 5.00"<br /> Depth: 3.25"<br /> Width: 5.28"<br /> Standards: UL 1953, CSA Class 6228-01<br />
