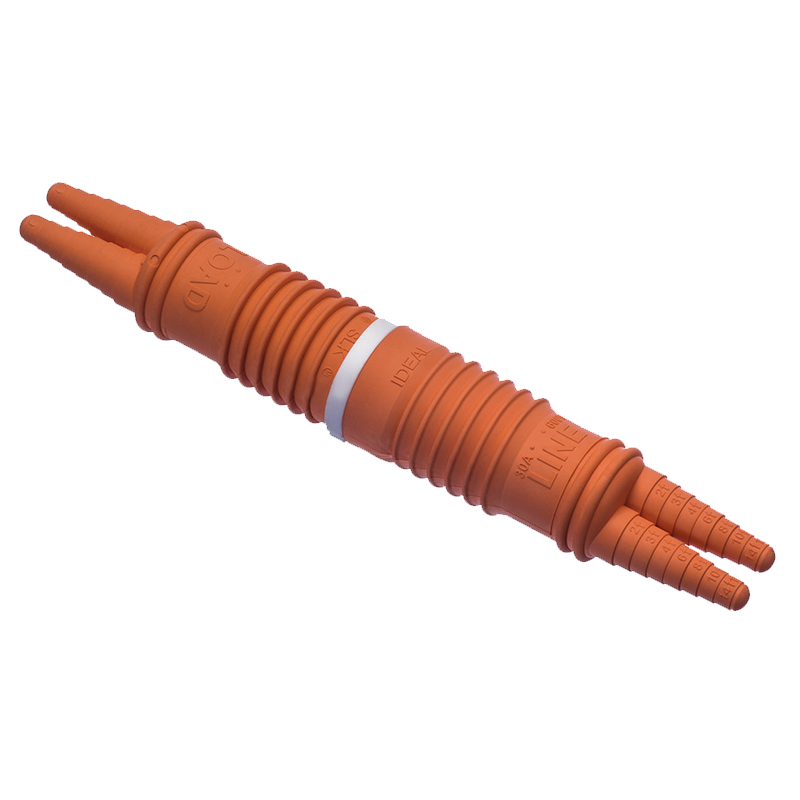

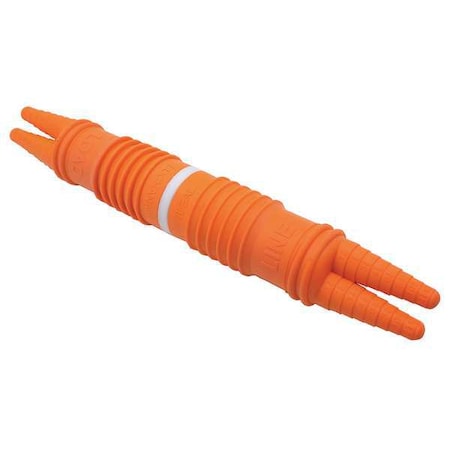

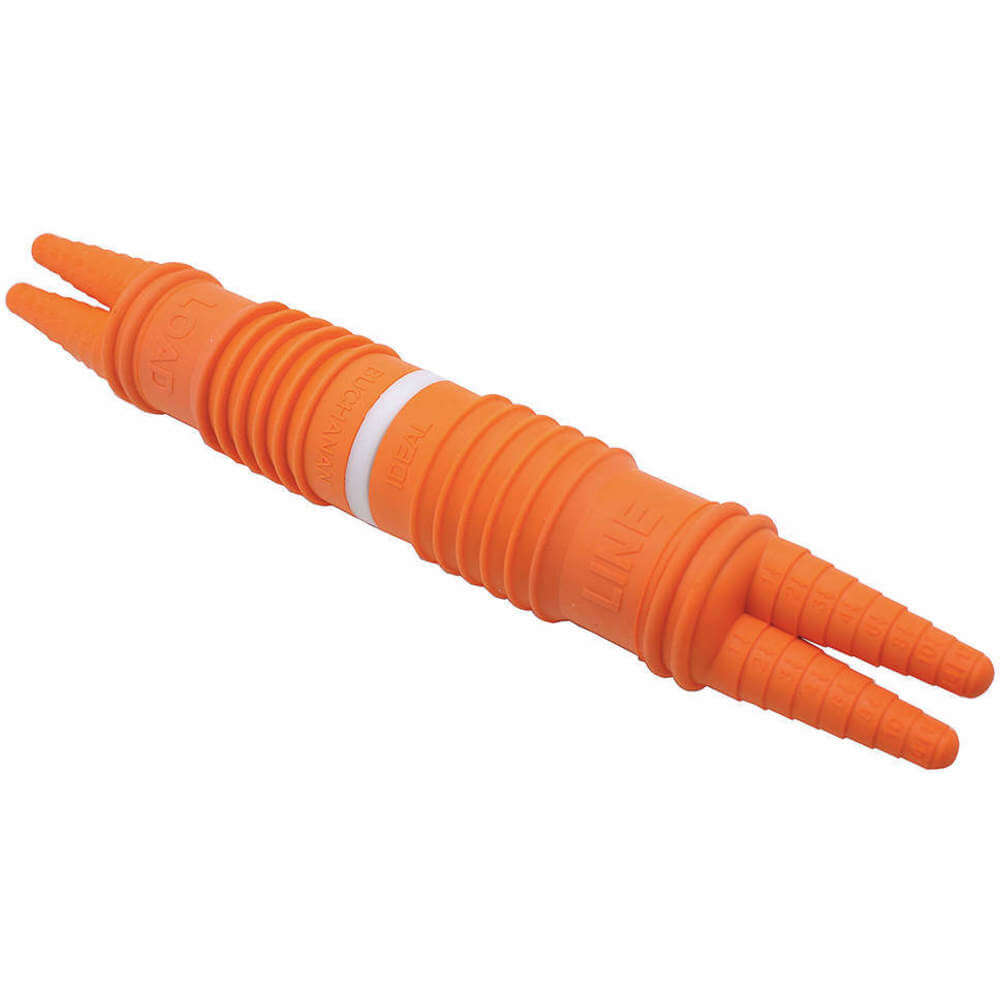

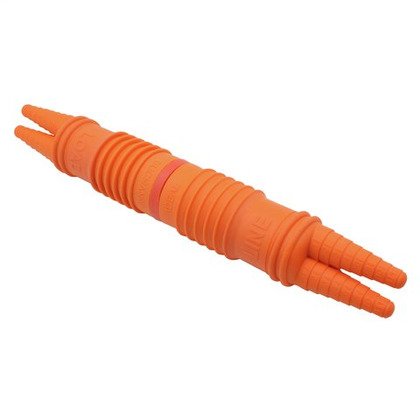

Ideal Slk 2-Pole Breakaway, Crimp, Non-Fused - 30-C2022N

The IDEAL SILK Disconnect Fuse Kit is a waterproof breakaway safety device that de-energizes roadway lights, streetlights, parking lot lights, and other freestanding electrical fixtures in the event of a knockdown, or when the fixtures need maintenance. This helps protect first responders, bystanders, and service personnel from potentially life-threatening electrical shock hazards. IDEAL worked directly with roadway installation electricians, DOT maintenance crews, and specifying engineers to find out what features would really make a difference. The result is an entirely new product that not only performs well but is easier to install, and quite robust. This listing is for each. Technical Specification Item Street Light Disconnect Connection Type Crimp Breakaway/Non-Breakaway Breakaway Style Y-Tap Design Non-Fused Primary Connections/Pole 2 Primary Wire Range 2 to 4 AWG Secondary Connections/Pole 2 Secondary Wire Range 6 to 8 AWG Color Orange Max. Temp. 105 Degrees C Max. Voltage 600V AC Overall Length 8 1/2 in Insulation Polypropylene, TPE Connection Material Tin-Plated Brass Standards UL 486A/B; AUL 486D; UL 498; UL 1682; Conforms to AASHTO's Roadway Lighting Design Guide, Chapter 8, Oct. 2005

Y-Tap Breakaway, crimp; non-fused; 2 wire line side, 2-4 AWG; 2 wire load side, 6-8 AWG Features Waterproof breakaway fuseholder for use in roadway and street lighting, parking lot and area lighting, and free-standing electric vehicle charging stations UL Listed for submersible installations Bright orange color for ease of visibility Large selection of configurations Wide wire range Set screw or crimp terminations available Accepts 13/32" x 1-1/2" midget-style fuse Wire Range: 2-14 AWG (Cu and Al rated) Ratings: 30A, 600V, 105 C The IDEAL SLK Disconnect Fuse Kit is a waterproof breakaway safety device that de-energizes roadway lights, streetlights, parking lot lights, and other freestanding electrical fixtures in the event of a knockdown, or when the fixtures need maintenance. This helps protect first responders, bystanders, and service personnel from potentially life-threatening electrical shock hazards. IDEAL worked directly with roadway installation electricians, DOT maintenance crews, and specifying engineers to find out what features would really make a difference. The result is an entirely new product that not only performs better but is easier to install and more robust than any other disconnect fuse kit on the market today.
