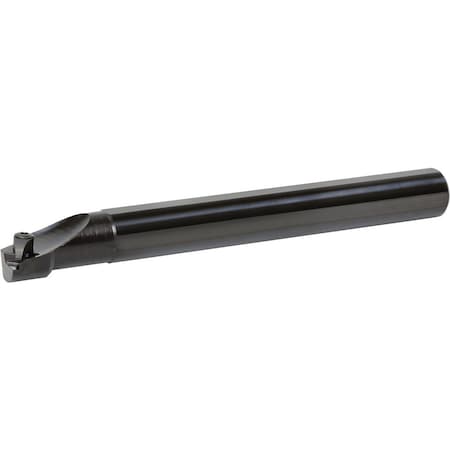

S20QCTUPR1127 Right-Hand

<ul><li>5 (Axial), -0 (Radial) Rake Angle General Purpose Boring Bar</li><li>Great for Boring Applications</li><li>Compatible with Left-Hand TPMR22…, TPGR22…, TPM22…, TPG22… Inserts</li></ul><p>Product Details:</p><ul><li>Toolholder Style: S...CTUP</li><li>Hand of Holder: Right-Hand</li><li>Rake: Positive</li><li>Rake Angle (Degree): 5 (Axial), -0 (Radial)</li><li>Series: General Purpose</li><li>Lead Angle (Degree): 3</li><li>[DMIN] Minimum Bore Diameter (mm): 27.00</li><li>[DCON] Shank Diameter (mm): 20.00</li><li>[H] Shank Flat Width (mm): 18.00</li><li>[LF] Functional Length (mm): 180.00</li><li>[LH] Head Length (mm): 40.00</li><li>[WF] Cutting Edge Distance (mm): 13.50</li><li>[WF2] Cutting Edge Distance Secondary (mm): 1.30</li><li>[RE] Standard Corner Radius (mm): 0.40</li><li>Maximum Overhang Length (L/D): ~3.0</li><li>Coolant Through (Yes/No): No</li><li>Insert Holding Method: Top Clamp</li><li>Insert Shape: 60 Degree Triangle</li><li>[IC] Insert Inscribed Circle (mm): 6.35</li><li>[S] Insert Thickness (mm): 3.18</li><li>Multi-Use Tool (Yes/No): No</li><li>Application: Boring</li><li>Bar Type: Steel</li><li>Unit (inch/mm): mm</li><li>Compatible Insert Hand : Left-Hand</li><li>Compatible Inserts (Partial): TPMR22…, TPGR22…, TPM22…, TPG22…</li></ul>
