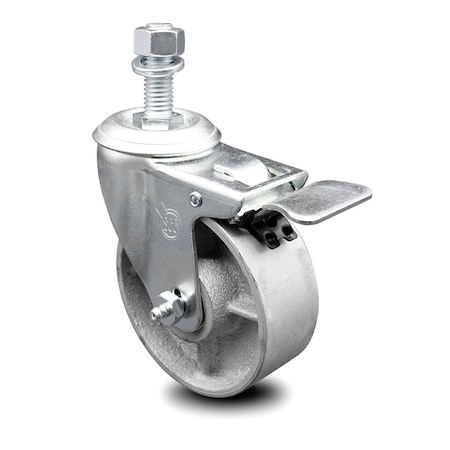

Semi Steel Swivel TS Caster w/Roller Bearing-4" Wheel&12MM Stem w/Total Lock BRK

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Brand, Label, Publisher, StudioService Caster
Attribute00, Attribute02, Attribute05, length, width1.5
Attribute015-1/8"
Attribute034
Attribute0412MM
Attribute064" x 1-1/2"
Attribute07, Attribute16Threaded Stem
Attribute08Roller Bearing
Attribute09-45 degrees F to 600 degrees F
Attribute10swivel caster w/ total lock brake
Attribute11Bright Zinc Plated Finish
Attribute12300
Attribute13, Attribute15Total lock brake
Attribute14, Material, MaterialTypeSemi Steel Cast Iron
Attribute17, Model, ModelNumber, Model_numberSeries #20
Attribute181.75
Attribute19, moq, multiple, tierMinQty1, Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity1
AttributeKey00, width_AttribWheel Width
AttributeKey01, height_AttribMounting Height
AttributeKey02, length_AttribStem Length
AttributeKey03Wheel Dia.
AttributeKey04Stem Dia.
AttributeKey05Thread Length
AttributeKey06Size
AttributeKey07Caster Stem Type
AttributeKey08Wheel Bearing Type
AttributeKey09Caster Temp. Range
AttributeKey10Includes
AttributeKey11Finish
AttributeKey12Load Capacity
AttributeKey13Caster Swivel Lock Type
AttributeKey14Material
AttributeKey15Features
AttributeKey16Mounting Type
AttributeKey17Model
AttributeKey18Thread Pitch
AttributeKey19Package Quantity
CategoryId6744
DimensionUnitinch
GraingerSku, MPN, PartNumber, Part_numberSCC-TSTTL20S415-SSR-M1215
Extra Product NameSemi Steel Swivel TS Caster w/Roller Bearing-4" Wheel&12MM Stem w/Total Lock BRK
UPC670533931814
WeightUnitlbs
extendedLead26
extendedQty-2
height5.125
jsonUrlData924526ffbdad25e5923b
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG805426767
tierPrice161.70
urlhttps://www.zoro.com/service-caster-semi-steel-swivel-ts-caster-wroller-bearing-4-wheel12mm-stem-wtotal-lock-brk-scc-tsttl20s415-ssr-m1215/i/G805426767/
ASINB07ZHN3JX5 B0897Z6RBJ
AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
Amount0.00
AsinB07ZHN3JX5
Bullet_pointAll casters feature a 12mm diameter (1.75 TPI x 1-1/2”) threaded stem. Threaded stems can be difficult to measure. Service Caster recommends having existing threads checked on a thread gauge to determine correct thread size before ordering. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button. Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position. Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing. These Service Caster Series #20 Semi Steel Cast Iron casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 4” Wheel: 5-1/8” mounting height; 5” Wheel: 6-1/8” mounting height. Weight Capacity: 3", 4", and 5": 300 lbs Capacity/Caster
ClassificationId383662011 511228
ColorSwivel - Total Lock Brake - Silver
Currency, CurrencyCodeUSD
Decimal_value4.0
DisplayNameHardware
Externally_assigned_product_identifier, Identifier0670533931814 670533931814
FetchTime1697391447 1704522084
Height1000 1584 500 75
IdentifierTypeEAN UPC
ItemClassificationBASE_PRODUCT
ItemName, Item_nameSemi Steel Cast Iron Swivel Threaded Stem Caster w/Roller Bearing - 4" x 1.5" Silver Wheel and 12MM Metric Stem & Total Locking Brake - 300 lbs Capacity/Caster - Service Caster Brand
Item_type_keywordstem-casters
KeywordSCC-TS20S415-SSR-M1215-2-TLB-2
Linkhttps://m.media-amazon.com/images/I/41GgH6fqLCL._SL75_.jpg https://m.media-amazon.com/images/I/41GgH6fqLCL.jpg https://m.media-amazon.com/images/I/41sbSx9umOL._SL75_.jpg https://m.media-amazon.com/images/I/41sbSx9umOL.jpg https://m.media-amazon.com/images/I/51Gip4493WL._SL75_.jpg https://m.media-amazon.com/images/I/51Gip4493WL.jpg https://m.media-amazon.com/images/I/51LV+m0h59L.jpg https://m.media-amazon.com/images/I/51zcMF6ZBUL._SL75_.jpg https://m.media-amazon.com/images/I/51zcMF6ZBUL.jpg https://m.media-amazon.com/images/I/61JIFrh6NcL.jpg https://m.media-amazon.com/images/I/61kcSe40aqL.jpg https://m.media-amazon.com/images/I/712tOQWTmjL.jpg https://www.amazon.com/gp/bestsellers/hi/511228 https://www.amazon.com/gp/bestsellers/industrial https://www.amazon.com/gp/bestsellers/industrial/383662011
List_price0.0
Load_capacity300.0
Marketplace_idATVPDKIKX0DER
Mounting_typeStem Mount
Name, ThemeCOLOR_NAME/SIZE_NAME
ParentAsinsB0897Z6RBJ
ProductCategoryId383662011 511228 biss_display_on_website
ProductGroupBISS Basic
ProductType, ProductTypeNameINDUSTRIAL_CASTERS
Product_descriptionListing is for one (1) Service Caster Series #20 swivel caster with a 4" diameter by 1-1/2" wide semi steel cast iron wheel and a 12mm-1.75 X 1-1/2" metric threaded stem with total lock brake capable of supporting 300 lbs./caster.When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 20 roller bearing semi-steel cast iron casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition, while the semi-steel wheels are abrasion resistant and rugged, maintaining effortless rolling under heavier loads, and provides a cost-effective solution over steel wheels. The roller bearing is capable of carrying greater loads while also providing smoother rolling motion. It has a split outer race shell into which the roller assembly is inserted. Combination seal/thrust retainer washers protect the bearing from dirt, water, and chemicals. They also help absorb thrust friction (Note: roller bearing must be used with hardened spanner bushing or hardened shaft). Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.
Product_site_launch_date2019-10-23T19:55:17.641Z
Rank1741 1864 361519 380236 845755 869626
Size4" Wheel
Supplier_declared_dg_hz_regulationnot_applicable
TitleHardware Industrial & Scientific Semi Steel Cast Iron Swivel Threaded Stem Caster w/Roller Bearing - 4" x 1.5" Silver Wheel and 12MM Metric Stem & Total Locking Brake - 300 lbs Capacity/Caster - Service Caster Brand Stem Casters
TypeSwivel VARIATION ean upc
URLhttps://m.media-amazon.com/images/I/41sbSx9umOL._SL75_.jpg
Unitinches pounds
Unitspixels
VariantMAIN PT01 PT02 PT03
VariationThemecolor size
WebsiteDisplayGroupautomotive_display_on_website biss_display_on_website
WebsiteDisplayGroupNameAutomotive Parts and Accessories
Width1000 1224 2.0 386 500 58 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG805426767111 @ $61.70

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Semi Steel Cast Iron Swivel Threaded Stem Caster w/Roller Bearing - 4" x 1.5" Silver Wheel and 12MM Metric Stem & Total Locking Brake - 300 lbs Capacity/Caster - Service Caster Brand
Brand: Service Caster
Listing is for one (1) Service Caster Series #20 swivel caster with a 4" diameter by 1-1/2" wide semi steel cast iron wheel and a 12mm-1.75 X 1-1/2" metric threaded stem with total lock brake capable of supporting 300 lbs./caster.When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 20 roller bearing semi-steel cast iron casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition, while the semi-steel wheels are abrasion resistant and rugged, maintaining effortless rolling under heavier loads, and provides a cost-effective solution over steel wheels. The roller bearing is capable of carrying greater loads while also providing smoother rolling motion. It has a split outer race shell into which the roller assembly is inserted. Combination seal/thrust retainer washers protect the bearing from dirt, water, and chemicals. They also help absorb thrust friction (Note: roller bearing must be used with hardened spanner bushing or hardened shaft). Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.
Details
  • These Service Caster Series #20 Semi Steel Cast Iron casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 4” Wheel: 5-1/8” mounting height; 5” Wheel: 6-1/8” mounting height.
  • Weight Capacity: 3", 4", and 5": 300 lbs Capacity/Caster
  • All casters feature a 12mm diameter (1.75 TPI x 1-1/2”) threaded stem. Threaded stems can be difficult to measure. Service Caster recommends having existing threads checked on a thread gauge to determine correct thread size before ordering. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button.
  • Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
  • Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing.
Listing
Product groupBISS Basic
Product typeINDUSTRIAL_CASTERS
ModelSeries #20
Part numberSCC-TSTTL20S415-SSR-M1215
Items per pack1
LabelService Caster
ManufacturerService Caster
