Order RHP-3W2F-LCD by Dwyer RHP-W Wall Point Transmitter - US Mega Store

Dwyer . RHP-3W2F-LCD

Gallery

Attributes

Brand name, Manufacturer name, BrandDwyer
ManufacturerDwyer Dwyer Instruments, Inc.
Attribute00, Attribute19Range: 0 to 100% RH
Attribute01, Attribute20-40 to 140°F (-40 to 60°C) for thermistor and RTD sensors. -20 to 140°F (-28.9 to 60°C) for solid state band gap temperature sensors
Attribute02, Attribute21-20 to 140°F (-28.9 to 60°C); 0 to 100°F (-17.8 to 37.8°C); 40 to 90°F (4.4 to 32.3°C); -4 to 140°F (-20 to 60°C) field selectable ranges
Attribute03, Attribute22±3% 20-80% RH @ 25°C
Attribute04, Attribute23±1%
Attribute05, Attribute24±0.1% typical
Attribute06, Attribute25Operating: -40 to 140°F (-40 to 60°C); Storage: -40 to 176°F (-40 to 80°C)
Attribute07, Attribute26-4 to 140°F (-20 to 60°C)
Attribute08, Attribute27Power Requirements: 10-35 VDC. Output Signal: 4-20 mA, 2 channels for humidity/solid state temperature sensor models (loop powered on RH). Switch selectable RH/dew point. Switch selectable normal or reverse output
Attribute09, Attribute28Switch selectable, -20 to 140°F (-28.9 to 60°C); 0 to 100°F (-17.8 to 37.8°C); 40 to 90°F (4.4 to 32.3°C); -4 to 140°F (-20 to 60°C)
Attribute10, Attribute2915 seconds
Attribute11, Attribute30Screw terminal block
Attribute12, Attribute31<1% RH/year
Attribute13, Attribute32Capacitance polymer
Attribute14, Attribute33Warm gray polycarbonate
Attribute15, Attribute34LCD
Attribute16, Attribute35RH: 1%; Temperature: 0.1&#176;F (0.1&#176;C); Dew Point: 1&#176;F (1&#176;C)
Attribute17, Attribute360.3 lb (0.14 kg)
Attribute18, Attribute37CE
AttributeKey00, AttributeKey19Relative Humidity Range
AttributeKey01, AttributeKey20Temperature Range
AttributeKey02, AttributeKey21Dew Point Temperature Range
AttributeKey03, AttributeKey22Accuracy
AttributeKey04, AttributeKey23Hysteresis
AttributeKey05, AttributeKey24Repeatability
AttributeKey06, AttributeKey25Temperature Limits
AttributeKey07, AttributeKey26Compensated Temperature Range
AttributeKey08, AttributeKey274-20 mA Loop Powered Output
AttributeKey09, AttributeKey28Solid State Band Gap Temp Sensor Output Ranges
AttributeKey10, AttributeKey29Response Time
AttributeKey11, AttributeKey30Electrical Connections
AttributeKey12, AttributeKey31Drift
AttributeKey13, AttributeKey32RH Sensor
AttributeKey14, AttributeKey33Enclosure Material
AttributeKey15, AttributeKey34Display
AttributeKey16, AttributeKey35Display Resolution
AttributeKey17, AttributeKey36, Weight_AttribWeight
AttributeKey18, AttributeKey37Agency Approvals
CategoryL1Process Control & Automation
CategoryL2Transmitters
CategoryL3Temperature
CategoryL4Dwyer RHP-3W2F-LCD
ConditionNEW
Extra Product NameOrder RHP-3W2F-LCD by Dwyer RHP-W Wall Point Transmitter - US Mega Store
Weight0.3 0.30
WeightUnitlbs
moq, multiple, tierMinQty1, Case, NumberOfItems, PackageQuantity1
MPN, SKU, Part Number, PartNumberRHP-3W2F-LCD
qtyInStockContact Us

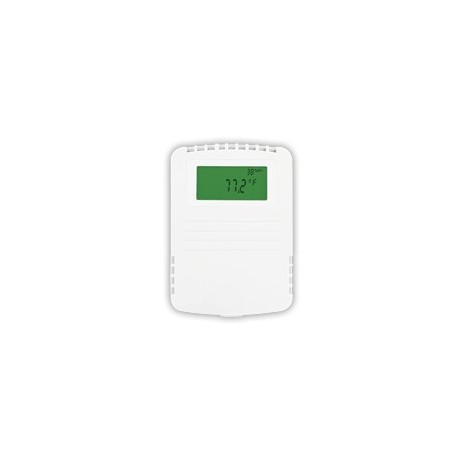

snippet<p><strong>Dwyer, RHP-3W2F-LCD, Series RHP-W Wall Mount Humidity/Temp/Dew Point Transmitter, 3%, CurveF </strong> </p> <p>LCD Display, Replaceable Sensors </p> <p><strong>The Series RHP-W Wall Mount Humidity/Temperature/Dew Point Transmitter </strong> is the most versatile room transmitter on the market. The stylish housing is well vented to provide air flow across the sensor to improve measurement accuracy. The LCD display indicates the ambient temperature along with the humidity or dew point. The transmitter has internal dip switches to select the temperature engineering units and whether the transmitter outputs humidity or dew point. </p> <p>The humidity and temperature sensors are field replaceable to reduce service cost and inventory. The humidity and the dew point are measured using a capacitive polymer sensor that completely recovers from 100% saturation. The humidity and dew point can have either a current or voltage output, while the optional temperature output can be a current, voltage, RTD or thermistor. For models with current or voltage for the temperature output, the temperature range is field selectable. </p>
tierPrice1203.6
Product Group, ProductGroupBISS
ASIN, AsinB00GP2RX4S
Amount146.25
CatIndustrial & Scientific
CatId16310091
CatTree16310091 16310161 256346011
CurrencyCodeUSD
FeatureMANUFACTURER DIRECT
FetchTime1542338004
Height, Width75
Label, Man, Publisher, StudioDwyer Instruments, Inc.
ProductTypeNameMECHANICAL_COMPONENTS
TitleDwyer Wall Mount Humidity/Temperature/Dew Point Transmitter, RHP-3W2F-LCD, 3% Accuracy, 0-10V
URLhttp://ecx.images-amazon.com/images/I/31fY1v1hlHL._SL75_.jpg
Unitspixels pounds

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comRHP-3W2F-LCD1Contact Us11 @ $203.60
heavydutydepot.comRHP-3W2F-LCD111 @ $203.50
MegadepotRHP-3W2F-LCD11
industrialzone.comRHP-3W2F-LCD2-211 @ $165.00
KeleRHP-3W2F-LCD111 @ $230.76
Allied Electronics7144480011
RadwellRHP-3W2F-LCD11
TranscatRHP-3W2F-LCD111 @ $167.50
