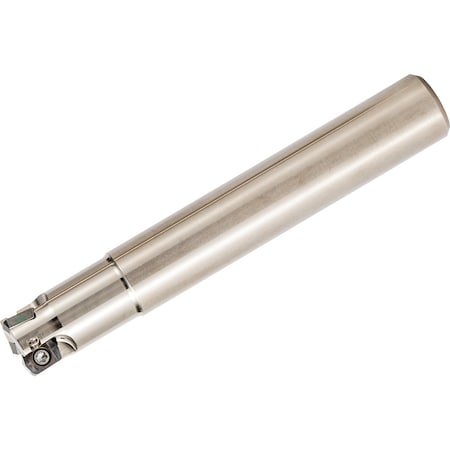

Kyocera

<ul><li>Reduce cycle time during roughing applications</li><li>Low resistance and durable design aids in chatter resistant machining</li><li>Molded convex cutting edge controls initial impact when entering the workpiece</li><li>Wide range of machining applications</li><li>Can replace solid end mills to reduce machining costs</li></ul><p>Product Details</p><ul><li>Cutter Style: MFH</li><li>Hand of Holder: Right-Hand</li><li>Series: MFH-Micro</li><li>Lead Angle (Degree): 10</li><li>Shank Type: Standard Length</li><li>Weldon Flat: No</li><li>[DC] Cutting Diameter (Decimal Inch): 0.3228</li><li>[DC] Cutting Diameter (mm): 8.20</li><li>[DCX] Maximum Cutting Diameter (Decimal Inch): 0.4724</li><li>[DCX] Maximum Cutting Diameter (mm): 12.00</li><li>[DCON] Shank Diameter (Decimal Inch): 0.4724</li><li>[DCON] Shank Diameter (mm): 12.00</li><li>[LF] Functional Length (Decimal Inch): 3.1496</li><li>[LF] Functional Length (mm): 80.00</li><li>[LH] Head Length (Decimal Inch): 0.7874</li><li>[LH] Head Length (mm): 20.00</li><li>[APMX] Maximum Depth of Cut (Decimal Inch): 0.0197</li><li>[APMX] Maximum Depth of Cut (mm): 0.50</li><li>[A.R.] Axial Rake Angle (Degree): +5</li><li>[RMPX] Maximum Ramping Angle (Degree): 2</li><li>Number of Inserts: 3</li><li>Number of Flutes: 3</li><li>Maximum RPM: 14,000 </li><li>Multi-Use Tool: Yes</li><li>Coolant Through: Yes</li><li>Insert Holding Method: Screw</li><li>Toolholder Material: Steel</li><li>Application: Shouldering, Facing, Slotting, Ramping, Helical Milling, Plunging</li><li>Unit of Measure: Metric</li><li>Compatible Insert Hand: Right-Hand</li><li>Compatible Inserts: LPGT01…</li><strong>MFH Raptor</strong>Brochure(PDF 1MB)</ul>
