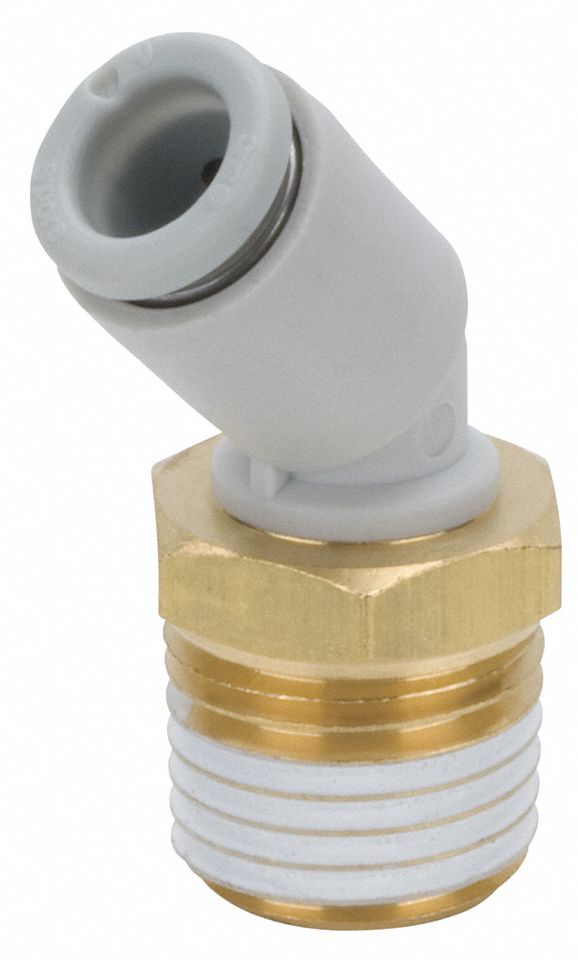

Smc Male Elbow,45 Deg,4mm,TubexMale BSPT KQ2K04-02AS ZO-G5002724 - SIM Supply

Male Elbow, Application Air, Non-Potable Water, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type MBSPT, Fitting Side B Pipe Size 1/4 in, Fitting Side A Tube Outer Diameter 4 mm, Fitting Material Brass, Color White, Includes Pre-Applied Thread Sealant Yes, Maximum Operating Pressure 145 psi, Maximum Operating Temperature 140 Degrees F, Overall Length 14 13/32 mm, Specific Fitting Shape 45 Degrees Elbow Adapter, Release Type Button, Standards JIS B0203, RoHS

<p>KQ2 one-touch, metric and inch size fittings are available in a wide variety of sizes, body styles and thread types. The specially designed packing provides positive sealing under pressure without the reduced flow common with compression fittings. The KQ2 release collar releases both the chuck and collet to provide a low disconnection force for easy removal of the tubing. KQ2 fittings are available to order in multiples of 10.<span style="color:#ff0000;">The current KQ2 series fitting has been discontinued. SMC has introduced an improved version of KQ2 series, and recommends that you utilize the new series for your product designs. <ul><li>Accepts nylon and urethane tubes</li><li>Applicable for both vacuum and positive pressure applications</li><li>Release collar allows easy removal of tubing without damaging the tube</li><li>Maximum vacuum pressure of 1.0MPa</li></ul><br /></p>
