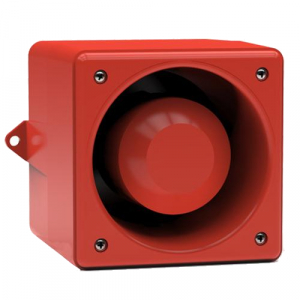

Order 23111800601 by Pfannenberg DS10-SIL Sounder Conforming - US Mega Store

Pfannenberg . 23111800601

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerPfannenberg
Attribute00, Attribute1519-29 V
Attribute01, Attribute16420 mA
Attribute02, Attribute17230 V / 80 mA
Attribute03, Attribute1820 mA
Attribute04, Attribute19110 dB(A)
Attribute05, Attribute2032 / 4 tones are externally selectable
Attribute06, Attribute21-25 °C / +55 °C
Attribute07, Attribute22-40 °C / +70 °C
Attribute08, Attribute2390 %
Attribute09, Attribute24IP 66 | IP 67
Attribute10, Attribute25100 %
Attribute11, Attribute26die-cast aluminium GD-AI Si12 Cu
Attribute12, Attribute27epoxy resin paint RAL 3000, flame red
Attribute13, Attribute282x M20 (1x chrome-plated brass cable fitting, 1x chrome-plated brass blanking plug)
Attribute14, Attribute298-12 mm
AttributeKey00, AttributeKey15Operating range
AttributeKey01, AttributeKey16Nominal current consumption
AttributeKey02, AttributeKey17Diagnostics channel switching power
AttributeKey03, AttributeKey18Diagnostics channel current consumption
AttributeKey04, AttributeKey19Sound pressure level
AttributeKey05, AttributeKey20Alarm tones
AttributeKey06, AttributeKey21Operating temperature
AttributeKey07, AttributeKey22Storage temperature
AttributeKey08, AttributeKey23Relative humidity
AttributeKey09, AttributeKey24Protection system according to EN 6052
AttributeKey10, AttributeKey25Duty cycle
AttributeKey11, AttributeKey26Material
AttributeKey12, AttributeKey27Surface coating
AttributeKey13, AttributeKey28Cable bushing
AttributeKey14, AttributeKey29Clamping range of the cable fitting
CategoryL1Safety
CategoryL2Emergency Lights & Sirens
CategoryL3Pfannenberg 23111800601
ConditionNEW
Extra Product NameOrder 23111800601 by Pfannenberg DS10-SIL Sounder Conforming - US Mega Store
moq, multiple, tierMinQty11
MPN, SKU23111800601
qtyInStock-2
qtySourceFieldMap
snippet<p><strong>Pfannenberg, 231 1180 0601, DS10-SIL Sounder Conforming for Safety Instrumented Systems, 19 to 29 VAC </strong> </p> <p><strong>Features: </strong> </p> <ul><li>Designed to be implemented in Safety Instrumented Systems (SIS) up to SIL 2 / Performance Level PL d </li> <li>31 alarm tones with 4 stages </li> <li>Stage programmability </li> <li>Internal volume control </li> <li>Horn loudspeaker type tone generator </li> <li>IP 66, IP 67 cast aluminum housing </li> <li>5.2 inch (134 mm) h x 5.2 inch (134 mm) w x 5.6 inch (143 mm) d </li> <li>Certifications: SIL </li> </ul>
tierPrice1728

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.com231118006011-211 @ $728.00
heavydutydepot.com23111800601111 @ $728.00
Megadepot23111800601111 @ $721.00
Galco23111800601-PFNG111 @ $728.00
MRO Supply2488268111 @ $728.00
motorsandcontrol.com23111800601111 @ $792.20
Radwell2311180060111
