Mean Well Adapter, Ac-Dc, 15V, 4A - GSM60A15-P1J

Mingweft power suppliers worldwide (DC output) ranked the third and the top 2 power plants mostly use ODM/OEM as the main source of revenue, while 99% of the proceeds come from standard power supply, is a power supply manufacturer with its own brand - MEAN WELL as the main operating strategy. The product is highly efficient and high quality and is generally covered by 3 years warranty

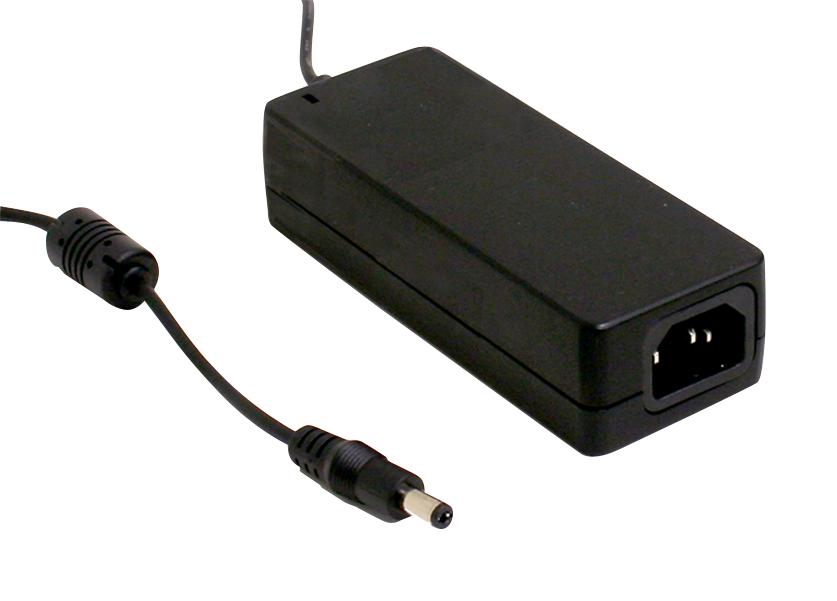

Plug-In Adapter Single-OUT 15V 4A 60W Medical

Welcome,you can buy all of the MEAN WELL power supplies in <strong>Power home</strong>.<br /> <br /> We are MEAN WELL agents,there are more than 5000 kinds of products in stock,ensure rapid delivery,price advantage,if you are business customer or purchase <strong>more than 20 pcs</strong>,please contact us for a more favorable price!<br /> <br /> Note:too cheap products may be imitation or defective products,usually a few months later may be broken,the original product can be used for 5 years or more,the power will not burn the equipment,this is the real bargain!

Medical Level Adapter 60W 15V 4A GSM60A15-P1J Meanwell AC-DC SMPS GSM60A Series MEAN WELL Switching Power Supply

<b>Features</b><br>Universal AC input / Full range<br>Medical safety approved(2xMOPP)<br>Suitable for BF application with appropriate system consideration (B-Type only)<br>low leakage current <50uA(100uA for A Type)<br>No load power consumption <0.1W<br>Energy efficiency Level VI (5~9V for Level V)<br>Comply with EISA 2007/DoE, NRCan, AU/NZ MEPS, EU ErP and meet CoC Version 5<br>High efficiency up to 91.5%<br>A-Type: Class I(with earth Pin) B-Type: Class II(without earth Pin)<br>Protections: Short circuit / Overload / Over voltage / Over temp.(GSM60 A/B)<br>Fully enclosed plastic case<br>LED indicator for power on<br>Optional lock type DC plug<br>3 years warranty

<p><b>Features:</b></p> <p>3 pole AC inlet IEC320-C14 , Class I power unit</p> <p>Medical safety approved (2 x MOPP) accroding to ANSI/AAMI ES60601-1 and IEC/EN60601-1</p> <p>Extremely low leakage current</p> <p>No load power consumption< 0.1W</p> <p>Energy efficiency Level VI and meet CoC Version 5(Except 5~9V for Level V)</p> <p>-30~ +70ºC wide range working temperature</p> <p>Protections: Short circuit / Overload / Over voltage / Over temperature </p> <p>LED indicator for power on</p> <p>Lifetime > 105K hours</p> <p>3 years warranty</p> <p></p> <p><b>General Specification:</b></p> <p>AC input voltage range: 80~264VAC 113~370VDC</p> <p>AC inrush current (Typ.):Cold start 30A/115VAC 60A/ 230VAC</p> <p>AC adjustment range: 5V: 0.1~6A, 7.5V: 0.1~6A, 9V: 0.1~6A, 12V: 0.1~5A, 15V: 0.1~4A, 18V: 0.1~3.33A, 24V: 0.1~2.5A ,48V: 0.1~1.25A</p> <p>Over voltage protection: 5V: 5.2~7V, 7.5V: 7.8~10.2V, 9V: 9.4~12.2V, 12V: 12.6~16.2V, 15V: 15.7~20.3V, 18V: 18.9~24.3V, 24V: 25.2~32.4V ,48V: 50.4~64.8V, Protection type : Shut down o/p voltage, re-power on to recover</p> <p>Overload protection: 105 ~ 160% rated output power,Protection type :Hiccup mode, recovers automatically after fault condition is removed</p> <p>Over temperature: Shut down o/p voltage, re-power on to recover</p> <p>Withstand voltage:I/P-O/P: 4KVAC ,I/P-F/G: 2KVAC ,O/P-F/G: SHORT</p> <p>Working temperature: -30~ +70ºC (Refer to "Derating Curve")</p> <p>Safety standards:IEC60601-1,TUV EN60601-1,ANSI/AAMI ES60601-1(3.1 version),CAN/CSA-C22.2 No.60601-1:14-Edition 3, EAC TP TC 004 approved</p> <p>EMC standards: EN55011 (CISPR11), FCC PART 15/ CISPR22,CAN ICES-3(B)/NMB-3(B) Class B, EN61000-3-2,3,EN61000-4-2-3,4,5,6,8,11</p> <p>Isolation resistance:I/P-O/P , I/P-F/G:100M Ohms/500VDC/25ºC/70% RH</p> <p>Dimension (LxWxH) (mm):125x 50x 31.5</p>
