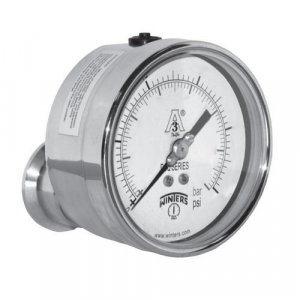

Order PSQ15802B by Winters PSQ 2.5", Quality Sanitary Gauge - US Mega Store

Winters . PSQ15802B

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerWinters
Attribute00, Attribute200/30 PSI/Bar
Attribute01, Attribute212.5" (63mm)
Attribute02, Attribute03, Attribute22, Attribute23304 SS, polished
Attribute04, Attribute24Polycarbonate
Attribute05, Attribute2525% up to 600 PSI (41 Bar), 15% over 600 PSI (41 Bar)
Attribute06, Attribute26250°F (121°C) continuous
Attribute07, Attribute27266°F (130°C) 1 hour, dry
Attribute08, Attribute28316 SS
Attribute09, Attribute10, Attribute29, Attribute30304 SS
Attribute11, Attribute31IP65/NEMA 4X
Attribute12, Attribute32Food grade glycerin standard (Mineral oil, silicone and Neobee-20 optional)
Attribute13, Attribute33Food grade glycerin standard (Dry, mineral oil, silicone and Neobee-20 optional)
Attribute14, Attribute34Adjustable micrometer pointer (4" (100mm) dial only)
Attribute15, Attribute35316L SS, Ra = 8 microinches
Attribute16, Attribute36Glycerin filled: 40°F to 150°F (4°C to 65°C)
Attribute17, Attribute370°F to 250°F (-18°C to 121°C)
Attribute18, Attribute38±1.5% of full scale
Attribute19, Attribute393A standard 74-05
AttributeKey00, AttributeKey20Pressure Range
AttributeKey01, AttributeKey21Dial
AttributeKey02, AttributeKey22Case
AttributeKey03, AttributeKey23Bezel
AttributeKey04, AttributeKey24Lens
AttributeKey05, AttributeKey25Over Pressure Limit
AttributeKey06, AttributeKey26CIP Temperature Limit
AttributeKey07, AttributeKey27SIP Temperature Limit
AttributeKey08, AttributeKey28Bourdon Tube
AttributeKey09, AttributeKey29Socket
AttributeKey10, AttributeKey30Movement
AttributeKey11, AttributeKey31Enclosure Rating
AttributeKey12, AttributeKey32System Fill
AttributeKey13, AttributeKey33Case Fill
AttributeKey14, AttributeKey34Re-zero Feature
AttributeKey15, AttributeKey35Wetted Parts
AttributeKey16, AttributeKey36Ambient Temperature
AttributeKey17, AttributeKey37Process Temperature
AttributeKey18, AttributeKey38Accuracy
AttributeKey19, AttributeKey39Agency Compliance
CategoryL1Process Control & Automation
CategoryL2Gauges
CategoryL3Pressure & Vacuum
CategoryL4Winters PSQ15802B
ConditionNEW
Extra Product NameOrder PSQ15802B by Winters PSQ 2.5", Quality Sanitary Gauge - US Mega Store
moq, multiple, tierMinQty11
MPN, SKUPSQ15802B
qtyInStock-2
qtySourceFieldMap
snippet<p><strong>Winters, PSQ15802B, PSQ 2.5", 0/30 PSI/Bar, 1.5" Tri-Clamp Back 3A All-Purpose Quality Sanitary Gauge </strong> </p> <p><strong>Features: </strong> </p> <ul><li>Quality series for all sanitary gauge systems </li> <li>Food grade glycerin filling standard </li> <li>Electro-polish finish </li> <li>Industrial grade polycarbonate lens standard </li> <li>Clean-In-Place and steam-in-place design </li> <li>1.5" Tri-Clamp&reg; connection bottom </li> <li>ASME B 40.100 compliant </li> <li>CRN registered </li> <li>5 year warranty </li> </ul> <p><strong>Applications: </strong> </p> <ul><li>Built to withstand all sanitary applications where 3A approval is required including food, beverage and dairy installations </li> </ul>
tierPrice1539

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comPSQ15802B1-211 @ $539.00
MegadepotPSQ15802B111 @ $539.00
heavydutydepot.comPSQ15802B1-211 @ $539.00
RadwellPSQ15802B11
