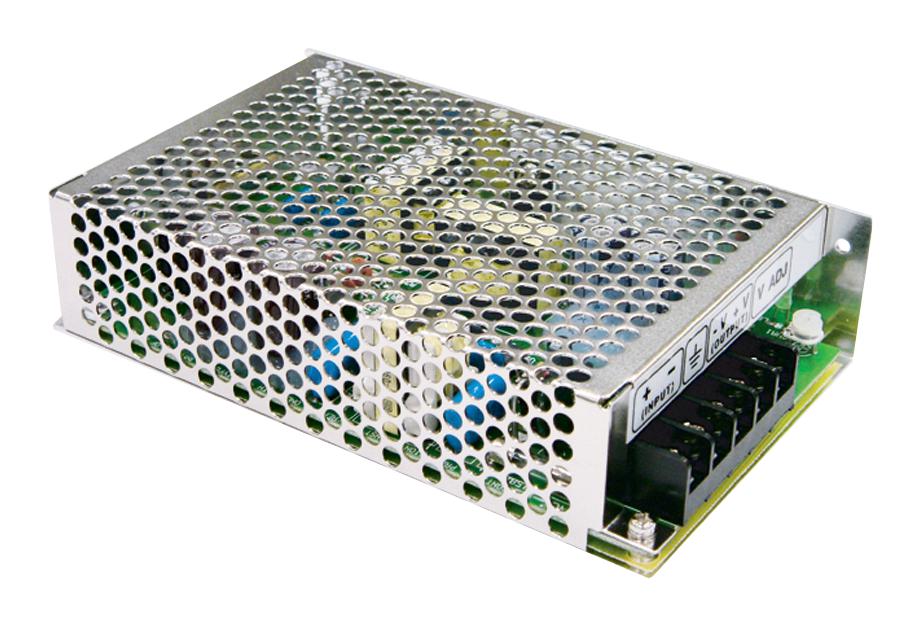

Mean Well Dc-Dc Converter, 12V, 4.2A - SD-50B-12

<p><b>Features:</b></p> <p>2:1 wide input range</p> <p>Protections:Short circuit / Overload / Over voltage</p> <p>1500VAC I/O isolation</p> <p>Built-in EMI filter ,low ripple noise</p> <p>100% full load burn-in test</p> <p>Fixed switching frequency at 83KHz</p> <p>Low cost</p> <p>High reliability</p> <p>2 years warranty</p> <p></p> <p><b>General Specification:</b></p> <p>AC input voltage range:A: 9.2~18VDC; B: 19~36VDC ;C: 36~72VDC</p> <p>DC adjustment range:5V: 4.5~5.5VDC, 12V: 11~16VDC, 24V: 23~30VDC</p> <p>Over voltage protection:5V: 5.75~6.75V/10% load, 12V: 16.8~20V/10% load, 24V: 31.5~37.5V/10% load , Protection type :Hiccup mode, recovers automatically after fault condition removed</p> <p>Overload protection: 105~150% rated output power , Protection type: Hiccup mode, recovers automatically after fault condition removed</p> <p>Withstand voltage:I/P-O/P: 1.5KVAC ,I/P-F/G: 2KVAC ,O/P-F/G: 0.5KVAC</p> <p>Working temperature: -10~ +60ºC(Refer to "Derating Curve")</p> <p>Safety standards:Design refer to LVD , EAC TP TC 004 ,AS/NZS 62368.1 approved</p> <p>EMC standards: Compliance to EN55032 (CISPR32) Class B, Compliance to EN61000-4-2,3,4,6,8,;ENV50204, heavy industry level, criteria A ,EAC TP TC 020</p> <p>Isolation resistance:I/P-O/P,I/P-F/G,O/P-F/G: 100M Ohms/500VDC/25ºC/70% RH</p> <p>Dimension (LxWxH) (mm):159x 97x 38</p>

50 W Single Group Output DC-DC Converter

Welcome,you can buy all of the MEAN WELL power supplies in <strong>Power home</strong>.<br /> <br /> We are MEAN WELL agents,there are more than 5000 kinds of products in stock,ensure rapid delivery,price advantage,if you are business customer or purchase <strong>more than 20 pcs</strong>,please contact us for a more favorable price!<br /> <br /> Note:too cheap products may be imitation or defective products,usually a few months later may be broken,the original product can be used for 5 years or more,the power will not burn the equipment,this is the real bargain!
