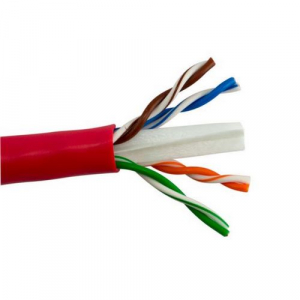

Order HNCPRO-RD by SCP Enhanced UTP Cable, 350MHz, 24 AWG BC, Red, 1000ft - US Mega Store

SCP . HNCPRO-RD

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSCP
Attribute00, Attribute13Solid Bare Copper
Attribute01, Attribute1424AWG X 4P
Attribute02, Attribute151/0.50+/-0.004mm
Attribute03, Attribute16HDPE
Attribute04, Attribute170.188mm
Attribute05, Attribute180.20mm
Attribute06, Attribute190.9+/-0.01mm
Attribute07, Attribute20- 20°C + 75°C
Attribute08, Attribute21Max 93.8 ohm/km at 20°C
Attribute09, Attribute22Min AC1.5KV
Attribute10, Attribute23Max 300Volts
Attribute11, Attribute24100+/-15OHM
Attribute12, Attribute25Max 3300pF/km
AttributeKey00, AttributeKey03, AttributeKey13, AttributeKey16Material
AttributeKey01, AttributeKey14Size
AttributeKey02, AttributeKey15Construction
AttributeKey04, AttributeKey17Min.Thickness
AttributeKey05, AttributeKey18AVG.Thickness
AttributeKey06, AttributeKey19, length_Attrib, width_AttribDiameter
AttributeKey07, AttributeKey20Operating Temperature Range
AttributeKey08, AttributeKey21Conductor Resistance
AttributeKey09, AttributeKey22Dielectric Strength
AttributeKey10, AttributeKey23Rated Voltage
AttributeKey11, AttributeKey24Characteristic Impedance
AttributeKey12, AttributeKey25Pair-to-Ground Capacitance Unbalance
CategoryL1Networking & Wiring
CategoryL2Cables
CategoryL3Twisted Pair
CategoryL4SCP HNCPRO-RD
ConditionNEW
DimensionUnitmm
Extra Product NameOrder HNCPRO-RD by SCP Enhanced UTP Cable, 350MHz, 24 AWG BC, Red, 1000ft - US Mega Store
diameter, length, width0.9
moq, multiple, tierMinQty11
MPN, SKUHNCPRO-RD
qtyInStockContact Us
snippet<p><strong>Structured Cable Products, HNCPRO-RD, Enhanced UTP Cable, 350MHz, 24 AWG Solid BC, 4PR, ANSI/TIA, Red, 1000ft </strong> </p> <p>HNCPRO UTP cables consistently outperform standard Category 5e UTP cables are certified to meet todays demanding commercial and residential Networking and A/V applications for Twisted Pair cables. Structured Cable Products HNCPRO UTP cables exceed performance standards for: TIA/EIA 568-C.2 Category 5e, ISO/IEC 11801 Ed2 Class D; and EN 50173-1:2011. Each HNCPRO UTP cable is performance optimized with 4 balanced twisted pairs on 24 AWG insulated solid bare copper conductors. HNCPRO UTP cables are constructed to create a round and flexible cable for easy pulling and stripping of the PVC jacket. All HNCPRO UTP cables are packaged in a special Black SCP Pull Box with guaranteed tangle free pulling. These cables are UL and CMR rated. </p>
tierPrice1147.6

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comHNCPRO-RD1Contact Us11 @ $147.60
