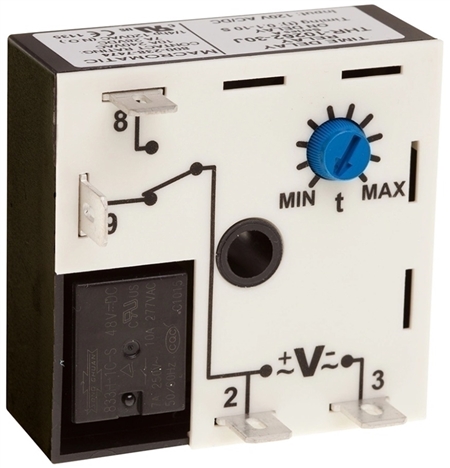

Macromatic THR-13162-04J is an encapsulated repeat cycle OFF time delay relay with internal jumper and input voltage of 120V AC/DC. Timing range from 0.05 to 5 seconds

Macromatic . THR-13162-04J

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMacromatic
Attribute00Repeat Cycle OFF
Attribute01Surface Mount with #8 or #10 Screw
Attribute020.25" Male Quick Connect Terminals
Attribute030.05 - 5 sec
Attribute04, Voltage120V AC/DC
Attribute0510 Amps SPDT
Attribute06AC Operation: +10/-15% of nominal at 50/60 Hz. DC Operation: +10/-15% of nominal voltage
Attribute07Max. 2VA
Attribute08Maximum Setting (Adjustable): +5%, -0% Minimum Setting (Adjustable): +0%, -50%
Attribute09The greater amount of +/- 0.1% or +/- 0.04 Sec
Attribute10100ms
Attribute110.05 sec
Attribute120.01 sec
Attribute13-28 C to 65 C (-18 F to 149 F)
Attribute14-45 C to 85 C (-49 F to 185 F);
Attribute1510A @ 240VAC / 7A @ 28VDC SPDT, 1/4 hp @ 120VAC (N.O.)
Attribute16Mechanical: 10,000,000 operations, Full Load: 100,000 operations
Attribute17C UR US, CE
AttributeKey00Relay Function
AttributeKey01Mounting Style
AttributeKey02Termination
AttributeKey03Relay Timing Range
AttributeKey04Input Voltage
AttributeKey05Output
AttributeKey06Voltage Tolerance
AttributeKey07Load
AttributeKey08Setting Accuracy
AttributeKey09Repeat Accuracy
AttributeKey10Reset Time
AttributeKey11Startup Time
AttributeKey12Maintain Function Time
AttributeKey13Operating Temperature
AttributeKey14Storage Temperature
AttributeKey15Output Contacts
AttributeKey16Life
AttributeKey17Approvals
Weight0.5
WeightUnitlbs
moq, multiple1
MPN, SKUTHR-13162-04J
qtyInStock0
snippetMacromatic THR-13162-04J is an encapsulated repeat cycle OFF time delay relay with internal jumper and input voltage of 120V AC/DC. Timing range from 0.05 to 5 seconds

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Products For AutomationTHR-13162-04J11
Walker IndustrialTHR-13162-04J13 to 5 Days11 @ $76.88
GalcoTHR-13162-04J-MCRM111 @ $84.79
blackhawksupply.comTHR-13162-04J1-211 @ $74.95
GuardianMACRO-THR-13162-04J1-21
RadwellTHR-13162-04J11
