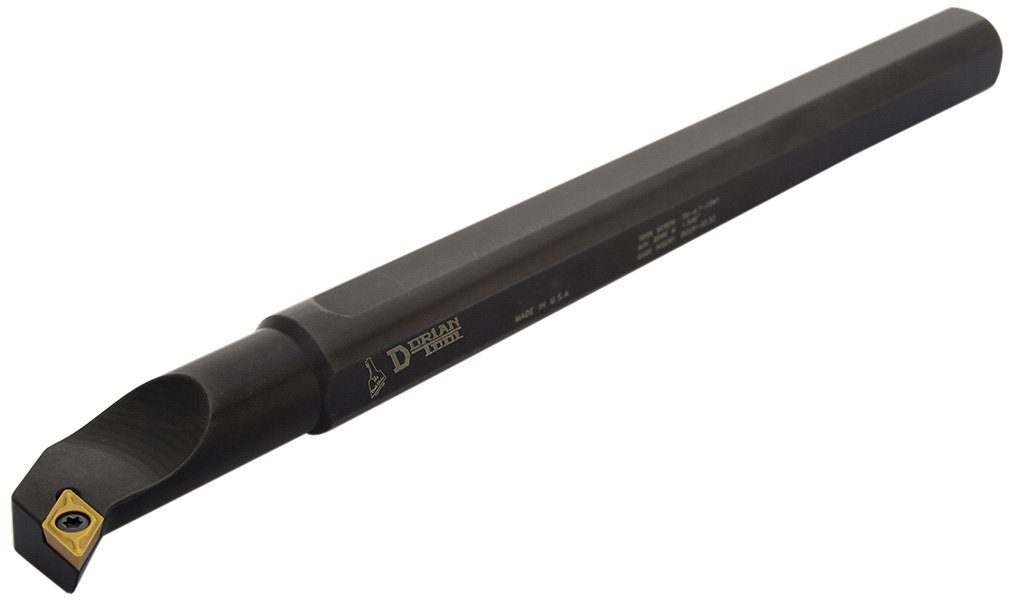

Indexable Boring Bar, Insert Shape 55 Degrees Diamond, Overall Length 5 in, S08K-SDUCR-2, 0.3083 in, T-8 Torx Key, TS-25.45-6M2 Insert Torx Screw, Boring, Right Hand

Indexable Boring Bar, Insert Shape 55° Diamond, Overall Length 5 in This listing is for each. Technical Specification Item Indexable Boring Bar Insert Style DC.T Insert Shape 55 Degrees Diamond Insert Clearance Angle 7 Degrees Overall Length 5 in Shank Dia. 1/2 in Number of Inserts 1 ANSI Code S08K-SDUCR-2 Center to Cutting Tip 0.3083 in Compatible Hardware T-8 Torx Key, TS-25.45-6M2 Insert Torx Screw Cutting Application Boring Cutting Direction Right Hand Features Clearance Angle of Insert in Relation to Cutting Edge Gives Micro Finish, Small Hole Boring Capacity Can Now Bore Holes That Were Once Reamed Head Material Steel Insert Holding Type Screw On Insert Inscribed Circle 1/4 in Insert Size 21.51 ISO Number S08K-SDUCR-2 Max. Bore Depth 0.3830 in Min. Bore Dia. 0.6100 in Rake Negative Shank Length 3-7/8 in Shank Material High Speed Steel Side Cutting Edge Angle 3 Degrees
