BEP BAT SW PI 400A EZ MOUNT DP MC10

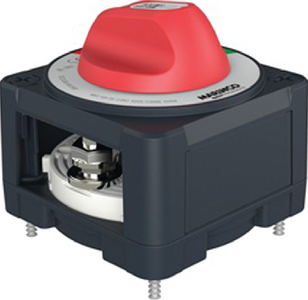

Pro Installer 400A EZ-Mount Double Pole Battery Switch - MC10An addition to our multi award winning Pro Installer EZ Mount range, this battery switch provides Double Pole On/Off functionality so that both positive and negative battery terminals can be isolated. Most commonly used on metal hulled craft, full isolation ensures there is no risk of stray currents that may cause galvanic corrosion, and also guarantees optimum safety during servicing or mishap, for example with mining equipment. As easy as 1, 2, 3, these revolutionary battery switches allow you to wire from the front for the easiest surface mounting. With their shared interconnection height, EZ-Mount battery switches cluster directly with the Pro Installer Busbar Range, resulting in the fastest, most compact installations. Optimized cable access makes installation a breeze.Features:Tested to UL1107 ignition protection, CETinned copper 10 mm (3/8 in) studsStainless steel washers and nutsFiber reinforced plastics400A Continuous / 600A 5 minutes Intermittent / 1500A 10 seconds Cranking (cable size to achieve ratings 120mm}, 4/0, smaller cable size will reduce the Amp rating)Waterproof to IP67Same interconnection height as Pro InstallerRemovable knob allows isolation during servicing3 removable side plates for protectionIndustry standard 3.85 x 3.85 inch footprintSurface mount onlyEach Pro Installer battery switch is fully tested for pressure sealing, Rotation force and electrically load testedSpecificationsMounting: Surface OnlyVoltage: 48v DC (for 12-48v systems)Rating: 400 Cont / 600 Inter / 1500 CrankDims: 3.85 x 3.85 x 3.62Operation: On/OffStud: 4x 10 mm (3.8)
