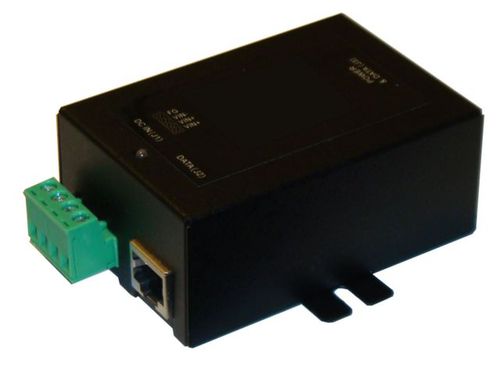

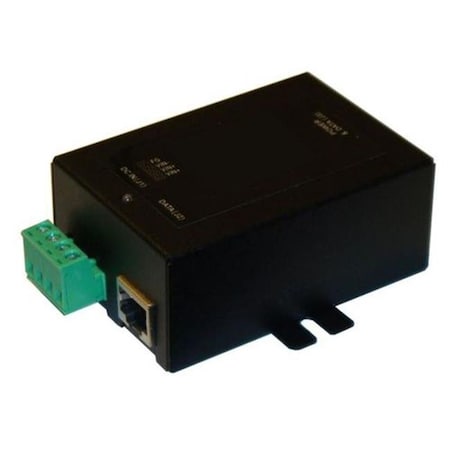

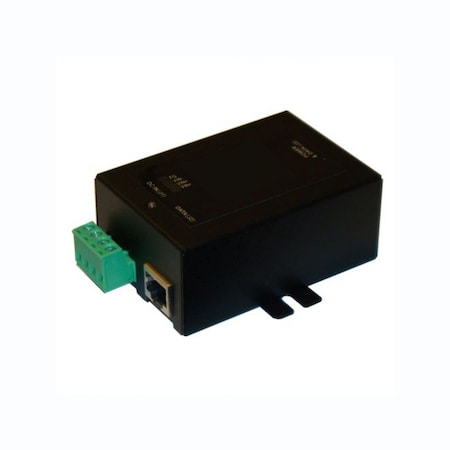

TYCON SYSTEMS, INC TP-DCDC-1248-M 9-36VDC IN 48VDC OUT DC TO DC CONVERTER
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| homeessentialsdirect.com | TP-DCDC-1248-M | 1 | -2 | 1 | 1 @ $91.06 |
| spaceboundsolutions.com | SBS-853623 | 1 | 1 | 1 @ $83.14 | |
 Zoro | G4579708 | 1 | -2 | 1 | 1 @ $84.65 |
| Digi-Key | 17047313 | 1 | 1 | 1 @ $82.45 | |
 Zoro | G303918481 | 1 | 1 | 1 @ $99.73 | |
| Digi-Key | 11479981 | 1 | 1 | 1 @ $77.00, 100 @ $71.41 | |
 unbeatablesale.com | TYCN130 | 1 | -2 | 1 | 1 @ $67.85 |
 PCNation | 7416AY | 1 | In Stock | 1 | 1 @ $53.90 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Tycon Systems TP-DCDC-1248-M 48V DC Out 24W DC to DC Converter and POE Inserter
Brand: Tycon Power Systems
Details
- The TP-DCDC-1248M offered by Tycon Power is a low cost and high reliability solution for those requiring 48VDC Power over Ethernet voltage from a 12 or 24V battery system
- They have an integrated POE injector to apply the 48VDC to the CAT5/6 Ethernet cable
- The output is regulated 18V, 24V or 48VDC from an input voltage between 9VDC and 36VDC
- They have a common (-) and two (+) for connecting 2 power sources, such as a primary with a backup power source. A metal enclosure model is available for industrial applications
- Applications: 12V / 24V Battery Systems; Wireless Access Points and Client Devices; IP Phone and Security Camera Systems
Listing
| Binding | Electronics |
|---|---|
| Product group | CE |
| Product type | POWER_CONVERTER |
| Model | TP-DCDC-1248-M |
| Part number | TP-DCDC-1248-M |
| Items per pack | 1 |
| Label | Tycon Power Systems |
| Manufacturer | Tycon Power Systems |
Catalog
| Feature | Input voltage 9-36VDC |
|---|---|
| Category | Electronics |
| MPN | TP-DCDC-1248-M |
| UPC | 633090397011 |
| EAN | 633090397011 |
| Product group | CE |
| Product type | POWER_SUPPLIES_OR_PROTECTION |
| Manufacturer | Tycon Systems |
9-36VDC in 48VDC 24W Out DC to DC Converter and Passive PoE inserter, Wire Terminal Input, PoE Pinout 4,5V+;7,8V-, Shielded, 10/100MB, Low Voltage Disconnect, Black Metal Enclosure
Brand: Tycon Power Systems
The TP-DCDC-1248M offered by Tycon Power is a low cost and high reliability solution for those requiring 48VDC Power over Ethernet voltage from a 12 or 24V battery system. They have an integrated POE injector to apply the 48VDC to the CAT5/6 Ethernet cable. The output is regulated 18V, 24V or 48VDC from an input voltage between 9VDC and 36VDC. They have a common (-) and two (+) for connecting 2 power sources, such as a primary with a backup power source. A metal enclosure model is available for industrial applications. They accept data-in to a shielded RJ45 Jack and provide data-out and POE power on the shielded RJ45 output jack. They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-). An IEEE 802.3af compliant model is available for those applications requiring 802.3af handshake. They have various protections for surge, short circuit and overload. The DCDC converters are DIN rail mountable using DIN Rail adaptors pn: DIN-ClipKit-UNI (not included).
Details
- The TP-DCDC-1248M offered by Tycon Power is a low cost and high reliability solution for those requiring 48VDC Power over Ethernet voltage from a 12 or 24V battery system
- They have an integrated POE injector to apply the 48VDC to the CAT5/6 Ethernet cable
- The output is regulated 18V, 24V or 48VDC from an input voltage between 9VDC and 36VDC
- They have a common (-) and two (+) for connecting 2 power sources, such as a primary with a backup power source. A metal enclosure model is available for industrial applications
- Applications: 12V / 24V Battery Systems; Wireless Access Points and Client Devices; IP Phone and Security Camera Systems
Listing
| Product group | BISS Basic |
|---|---|
| Product type | ELECTRONIC_COMPONENT |
| Model | TP-DCDC-1248-M |
| Part number | TP-DCDC-1248-M |
| Items per pack | 1 |
| Label | Tycon Power Systems |
| Manufacturer | Tycon Power Systems |
TP-DCDC-1248M Tycon Power Syatems DC to DC Converter
Brand: Tycon Power Systems
<p>Offers 18V to 48VDC PoE voltage from a 12 or 24V battery system ALso accepts data-in to a shielded RJ45 Jack and provide data-out and POE power on the shielded RJ45 output jack.</p><p>Applications include 12V / 24V Battery Systems, Wireless Access Points and Client Devices, IP Phone and Security Camera Systems.</p>
Details
- Has 2 isolated inputs for connecting 2 input power sources
- Supports both 802.3af compliant model and non-compliant models
- Offers short Circuit, Over Current and Reverse/Over Voltage Protection
Listing
| Binding | Misc. |
|---|---|
| Product group | Sports |
| Product type | POWER_CONVERTER |
| Model | TP-DCDC-1248-M |
| Part number | TP-DCDC-1248-M |
| Label | Tycon Power Systems |
| Manufacturer | Tycon Power Systems |
Tycon Systems 9-36VDC in 48VDC Out 24W DC to DC Converter and PoE Ins., TP-DCDC-1248-M (to DC Converter and PoE Ins. Black Metal Enclosure. Industrial Applications)
Brand: Tycon Systems
to DC Converter and PoE Ins. Black Metal Enclosure. Industrial Applications
Details
- TP-DCDC-1248-M
Listing
| Product group | CE |
|---|---|
| Product type | POWER_CONVERTER |
| Part number | TP-DCDC-1248-M |
| Label | Tycon Systems |
| Manufacturer | Tycon Systems |
TP-DCDC-1248-M - 10-36VDC Input, 48V Passive PoE Output, 20W
Brand: Tycon Power
9-36VDC IN. 48V 24W Passive PoE OUT. DC to DC Converter and PoE Injector. Metal Housing
Details
- 48V 24W Passive PoE Inserter
- 9-36VDC Wire Terminal Input
- For vehicle and other battery systems
- Black Metal Housing
- Low Voltage Disconnect
