SPARKFUN . DEV-13956
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| kr4.us | DEV-13956 | 1 | 1 | ||
| SF-DEV-13956 | 1 | 1 | |||
| DEV-13956 | 1 | 1 | |||
| 474-DEV-13956 | 1 | 22 | 1 | ||
| Digi-Key | 6797648 | 1 | 34 | 1 | 1 @ $42.95 |
| 474-DEV-13956 | 1 | 1 | 1 @ $39.95, 10 @ $39.95, 100 @ $39.95, 1000 @ $39.95, 10000 @ $39.95 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

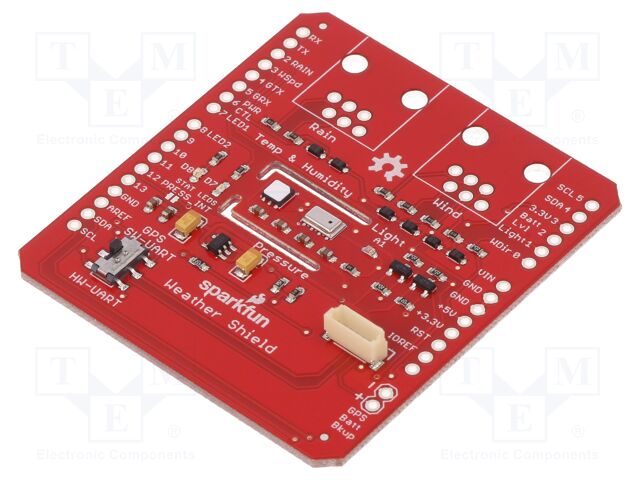

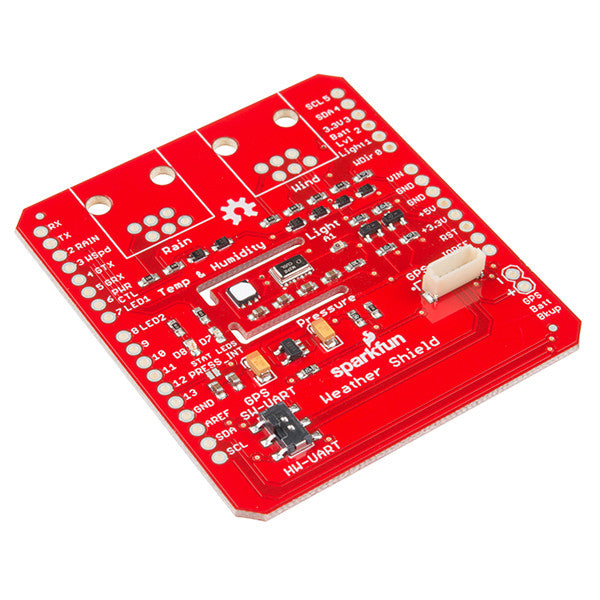

SparkFun Weather Shield utilizes The Si7021 Humidity/Temperature Sensor, The MPL3115A2 barometric Pressure Sensor and The ALS-PT19 Light Sensor
Brand: SparkFun
The SparkFun Weather Shield is an easy-to-use shield that grants you access to barometric pressure, relative humidity, luminosity and temperature. There are also connections on this shield to optional sensors such as wind speed, direction, rain gauge and GPS for location and super accurate timing. <br>The Weather Shield utilizes the Si7021 humidity/temperature sensor, the MPL3115A2 barometric pressure sensor and the ALS-PT19 light sensor. The shield relies on the Si7021 and MPL3115A2 libraries. Each shield comes with two unpopulated RJ11 connector spaces (for optional hookup of rain and wind sensors) and a 6-pin GPS connector (for optional hookup of a GP-735 GPS module). Finally, each Weather Shield can operate from 3.3V up to 16V and has built-in voltage regulators and signal translators.
Details
- The SparkFun Weather Shield is an easy-to-use Arduino shield that grants you access to barometric pressure, relative humidity, luminosity and temperature.
- The Weather Shield utilizes the Si7021 humidity/temperature sensor, the MPL3115A2 barometric pressure sensor and the ALS-PT19 light sensor. The shield relies on the Si7021 and MPL3115A2 libraries.
- This Weather Shield Features: Humidity/Temperature Sensor --- Si7021. Barometric Pressure --- MPL3115A2. Light Sensor --- ALS-PT19
- Each shield comes with two unpopulated RJ11 connector spaces (for optional hookup of rain and wind sensors) and a 6-pin GPS connector (for optional hookup of a GP-735 GPS module). Finally, each Weather Shield can operate from 3.3V up to 16V and has built-in voltage regulators and signal translators.
- Note: The Weather Shield comes as a stand-alone board. Headers, connectors and additional sensors will need to be purchased separately.
