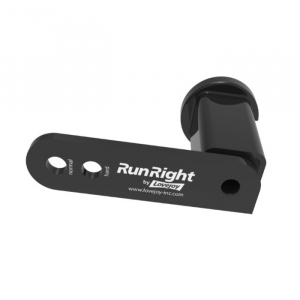

Order 68514485269 by Lovejoy RunRight RT 45 Tensioner, Black, Metric - US Mega Store

Lovejoy . 68514485269

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerLovejoy
Attribute00, Attribute21Chain/Belt Tensioner
Attribute01, Attribute22Natural Rubber
Attribute02, Attribute23Elastomeric
Attribute03, Attribute24, colorBlack
Attribute04, Attribute25RT 45-M
Attribute05, Attribute26M20 x 50
Attribute06, Attribute27115 mm (4.53 in)
Attribute07, Attribute28200 mm (7.87 in)
Attribute08, Attribute2920.5 mm
Attribute09, Attribute30260 mm (10.24 in)
Attribute10, Attribute31225 mm (8.86 in)
Attribute11, Attribute32180 mm (7.09 in)
Attribute12, Attribute3350 mm
Attribute13, Attribute3412 mm (0.47 in)
Attribute14, Attribute3518 mm (0.71 in)
Attribute15, Attribute3612.5 mm (0.49 in)
Attribute16, Attribute3770 mm (2.76 in)
Attribute17, Attribute38-40 to 180 °C (-40 to 80 °F)
Attribute18, Attribute39410 N/m (3629 in/lb)
Attribute19, Attribute401300 N (292.5 lb)
Attribute20, Attribute4178 mm (3.1 in)
AttributeKey00, AttributeKey21Type
AttributeKey01, AttributeKey22Element Material
AttributeKey02, AttributeKey23Style
AttributeKey03, AttributeKey24Color
AttributeKey04, AttributeKey25Tensioner
AttributeKey05, AttributeKey26Mounting Bolt Size
AttributeKey06, AttributeKey27, height_Attrib, width_AttribOutside Diameter (Dim D)
AttributeKey07, AttributeKey28, length_AttribOverall Length (Dim E)
AttributeKey08, AttributeKey29Dimension T
AttributeKey09, AttributeKey30Dimension L
AttributeKey10, AttributeKey31Dimension J-1
AttributeKey11, AttributeKey32Dimension J-2
AttributeKey12, AttributeKey33Dimension M
AttributeKey13, AttributeKey34Dimension G
AttributeKey14, AttributeKey35Dimension O
AttributeKey15, AttributeKey36Dimension P
AttributeKey16, AttributeKey37Dimension K
AttributeKey17, AttributeKey38Normal Temperature Range
AttributeKey18, AttributeKey39Mounting Bolt Torque
AttributeKey19, AttributeKey40Force at 20° Angle of Pretension (Normal Force Level) (Dimension F)
AttributeKey20, AttributeKey41Distance at 20° Angle of Pretension (Normal Force Level) (Dimension S)
CategoryL1Machines & Power Tools
CategoryL2Power Transmission Solutions
CategoryL3Lovejoy 68514485269
ConditionNEW
DimensionUnitmm
Extra Product NameOrder 68514485269 by Lovejoy RunRight RT 45 Tensioner, Black, Metric - US Mega Store
diameter, height, width115.0
length200.0
moq, multiple, tierMinQty11
MPN, SKU68514485269
qtyInStock-2
qtySourceFieldMap
snippet<p>RunRight Tensioner devices offer a full range of belt and chain tensioning options. They are manufactured with the standard Tensys 10 rubber inserts and can be used for applications operating within a -40&deg; to 180&deg;F (-40&deg; to 80&deg;C) temperature range. </p> <p>The housings are manufactured from powder metal, anything larger is manufactured out of cast iron. All arms and inner squares are cast iron. All of the tensioners include a zinc plated mounting screw and locking washer. </p> <p><strong>Note: </strong> </p> <ul><li>The recommended angle of pretension is 20&deg;. This provides the tensioner a maximum capability to absorb vibrations and shock loads, while also maintaining a range of motion to address the system's belt or chain stretch. </li> <li>Mounting accessories into the"Hard" Position results in approximately 25% higher tensioning force over the"normal" position. </li> <li>Metric standard tensioner units all come with a mounting screw, but do not come with the sprocket idler bolt (which is supplied instead with RunRight metric idler sprockets). </li> </ul>
tierPrice1363.7

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.com685144852691-211 @ $363.70
MRO Supply286450011
kscdirect.comLOV 68514485269111 @ $474.16
heavydutydepot.com68514485269111 @ $352.70
Raptor SuppliesAN9WAZ111 @ $525.46
midwestapplianceparts.com68514485269-LJ-P111 @ $515.00
Applied Industrial11399224211
