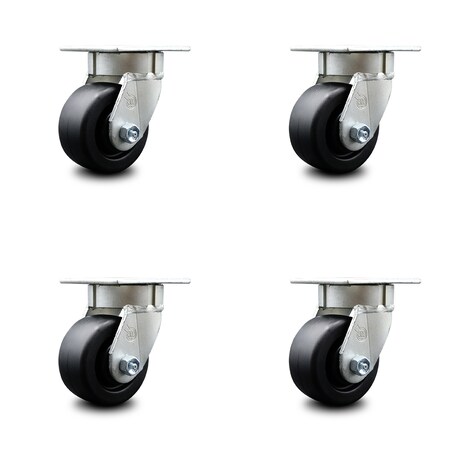

4 Inch Kingpinless Polyolefin Wheel Swivel Top Plate Caster SCC, 4PK

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Brand, Label, Publisher, StudioService Caster
Attribute00, atoms, NumberOfItems, Number_of_items4
Attribute012
Attribute024" x 4-1/2"
Attribute035-5/8"
Attribute044" x 2"
Attribute053/8" (hardware not included)
Attribute062000
Attribute072-5/8" x 3-5/8" to 3" x 3"
Attribute08Bright Zinc Plated Finish
Attribute0970D
Attribute10-20 degrees F to 180 degrees F
Attribute11, Model, ModelNumber, Model_numberSeries#KP30
Attribute12Top Plate
Attribute13(4) Swivel caster
Attribute14, Material, MaterialTypePolyolefin
Attribute15Roller Bearing
AttributeKey00, length_AttribWheel Dia.
AttributeKey01, width_AttribWheel Width
AttributeKey02Plate Size
AttributeKey03, height_AttribMounting Height
AttributeKey04Size
AttributeKey05Bolt Size
AttributeKey06Capacity (Lb.)
AttributeKey07Plate Caster Bolt Hole Pattern
AttributeKey08Finish
AttributeKey09Durometer
AttributeKey10Caster Temp. Range
AttributeKey11Series
AttributeKey12Caster Mounting Type
AttributeKey13Type
AttributeKey14Material
AttributeKey15Bearing Type
CategoryId, CategoryIdL46740
CategoryIdL1, CategoryIdL214394
CategoryIdL34473
CategoryL1Material Handling
CategoryL2Casters & Wheels
CategoryL3Casters
CategoryL4Plate Casters
DimensionUnitinch
Extra Product Name4 Inch Kingpinless Polyolefin Wheel Swivel Top Plate Caster SCC, 4PK
UPCNone
WeightUnitlbs
diameter, length, Unit_count4.0
extendedLead26
extendedQty-2
height5.625
jsonUrlData924526ffbdad25e5923b
moq, multiple, tierMinQty1, Item_package_quantity, PackageQuantity1
MPN, PartNumber, Part_numberSCC-KP30S420-POR-4
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG605430575
tierPrice1378.00
urlhttps://www.zoro.com/service-caster-4-inch-kingpinless-polyolefin-wheel-swivel-top-plate-caster-scc-4pk-scc-kp30s420-por-4/i/G605430575/
width2.0
ASINB08K1K3WCC B08KHMKWQX
AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
Amount0.00
AsinB08K1K3WCC
Bullet_pointBrake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster. Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing. These Service Caster Series #KP30 Polyolefin casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height. Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on. Weight capacity ranges from 500 lbs on the 4” caster, 650 lbs on the 5”, 700 lbs on the 6” and 900 lbs. on the 8”.
ClassificationId511228
Color4 Swivel - No Brake - Black
Compatible_with_vehicle_typeTruck
Currency, CurrencyCodeUSD
DisplayNameHardware
FetchTime1697340458 1704399921
Height, Width1000 500 75
ItemClassificationBASE_PRODUCT
ItemName, Item_name, TitleKingpinless Polyolefin Swivel Top Plate Caster Set of 4 w/4" x 2" Black Wheels - Includes 4 Swivel - 2000 lbs Total Capacity - Service Caster Brand
Item_type_keywordplate-casters
KeywordSCC-KP30S420-POR-2-SLB-2
Linkhttps://m.media-amazon.com/images/I/318X6AJ+qPL._SL75_.jpg https://m.media-amazon.com/images/I/318X6AJ+qPL.jpg https://m.media-amazon.com/images/I/41LOh-AZ0UL._SL75_.jpg https://m.media-amazon.com/images/I/41LOh-AZ0UL.jpg https://m.media-amazon.com/images/I/518eGvpuqIL.jpg https://m.media-amazon.com/images/I/51FV2zSLYTL.jpg https://m.media-amazon.com/images/I/51ZgTzo+QlL._SL75_.jpg https://m.media-amazon.com/images/I/51ZgTzo+QlL.jpg https://m.media-amazon.com/images/I/51qDPfKpVZL._SL75_.jpg https://m.media-amazon.com/images/I/51qDPfKpVZL.jpg https://m.media-amazon.com/images/I/51zL-ecbp+L._SL75_.jpg https://m.media-amazon.com/images/I/51zL-ecbp+L.jpg https://m.media-amazon.com/images/I/61OqvDl1kCL.jpg https://m.media-amazon.com/images/I/61PP01j6zlL.jpg https://m.media-amazon.com/images/I/71PWtkJ1J-L.jpg
List_price0.0
Load_capacity500.0
Marketplace_idATVPDKIKX0DER
Name, ThemeSIZE_NAME/COLOR_NAME
ParentAsinsB08KHMKWQX
ProductGroup, WebsiteDisplayGroupNameBISS Basic
ProductType, ProductTypeNameWHEEL
Product_descriptionListing is for a set of four (4) Service Caster Series #KP30 swivel casters with 4" diameter by 2" wide polyolefin wheels capable of supporting a total weight of 2,000 lbs. (500 lbs. per caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster Series KP30 polyolefin wheel casters. The Service Caster Series KP30 features light weight polyolefin wheels that are resistant to shock, chemicals and abrasion, and finely crafted with a bright zinc plated finish and heat-treated ball bearing raceway. Featuring a Kingpinless hot forged STM1045 steel design that increases caster durability and integrity, the series KP30 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features 3/8” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series KP30 casters are finely crafted with grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series KP30, keeping you moving forward.
Product_site_launch_date2020-09-24T20:19:20.061Z
Size4" Wheel
Supplier_declared_dg_hz_regulationnot_applicable
TypeVARIATION
URLhttps://m.media-amazon.com/images/I/318X6AJ+qPL._SL75_.jpg
Unitpounds
Unitspixels
VariantMAIN PT01 PT02 PT03 PT04
VariationThemecolor size
WebsiteDisplayGroupbiss_basic_display_on_website
Website_shipping_weight23.0

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG605430575111 @ $378.00

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Kingpinless Polyolefin Swivel Top Plate Caster Set of 4 w/4" x 2" Black Wheels - Includes 4 Swivel - 2000 lbs Total Capacity - Service Caster Brand
Brand: Service Caster
Listing is for a set of four (4) Service Caster Series #KP30 swivel casters with 4" diameter by 2" wide polyolefin wheels capable of supporting a total weight of 2,000 lbs. (500 lbs. per caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster Series KP30 polyolefin wheel casters. The Service Caster Series KP30 features light weight polyolefin wheels that are resistant to shock, chemicals and abrasion, and finely crafted with a bright zinc plated finish and heat-treated ball bearing raceway. Featuring a Kingpinless hot forged STM1045 steel design that increases caster durability and integrity, the series KP30 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features 3/8” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series KP30 casters are finely crafted with grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series KP30, keeping you moving forward.
Details
  • These Service Caster Series #KP30 Polyolefin casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height.
  • Weight capacity ranges from 500 lbs on the 4” caster, 650 lbs on the 5”, 700 lbs on the 6” and 900 lbs. on the 8”.
  • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.
  • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.
  • Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing.
Listing
Product groupBISS Basic
Product typeWHEEL
ModelSeries#KP30
Part numberSCC-KP30S420-POR-4
Items per pack4
LabelService Caster
ManufacturerService Caster
