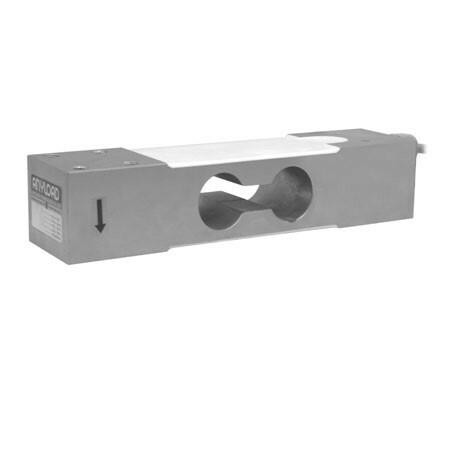

Anyload 108WH-400kg Single Point Load Cell - Scales Plus

Anyload . 108WH-400KG

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Attribute00Anyload
Attribute01108WH-400kg
Attribute02CE, RoHS, and Ex
Attribute03400 kg
Attribute04150% capacity
Attribute057.87"
Attribute061.57"
Attribute071.97"
Attribute08M8 Depth20, M4 Depth5
Attribute09Alloy Steel
Attribute10Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
Attribute1110 V (maximum of 15 V)
Attribute122.0 mV/V ?10%
Attribute13400 (? 15) ohms
Attribute14350 (? 3) ohms
Attribute1514?F to 104?F/-10?C to 40?C
Attribute16Environmentally sealed
Attribute17IP66
Attribute182 m
AttributeKey00Manufacturer
AttributeKey01Model
AttributeKey02Approvals
AttributeKey03Capacity
AttributeKey04Safe Overload
AttributeKey05, length_AttribLength
AttributeKey06, height_AttribHeight
AttributeKey07, width_AttribWidth
AttributeKey08Hole Thread
AttributeKey09Construction
AttributeKey10Cable Color Code
AttributeKey11Rated Excitation
AttributeKey12Full Scale Output
AttributeKey13Input Resistance
AttributeKey14Output Resistance
AttributeKey15Compensated Temperature Range
AttributeKey16Seal Type
AttributeKey17IP Rating
AttributeKey18Cable Length
DimensionUnitinch
Extra Product NameAnyload 108WH-400kg Single Point Load Cell - Scales Plus
height1.57
keywordsIndustrial Scales, Digital Scales, Laboratory Balances, Calibration Weights, Cannabis Scales, Jewelry Scales, NTEP Certified Scales, Load Cells
length7.87
moq, multiple, tierMinQty11
MPN, SKU108WH-400KG
qtyInStock0
snippetScales Plus is YOUR expert team for sales and product support for all your Anyload 108WH-400kg needs. Free product support!
tierPrice1316
width1.97

Distributor offers

SellerSKUMOQIn stockMultiplePrices
scalesplus.com108WH-400KG111 @ $316.00
