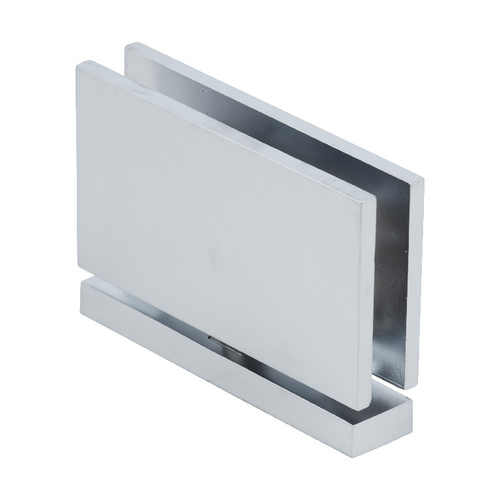

CRL ALUM-SRCAR01SC-VCP-1 Satin Chrome Senior Cardiff Series Hinge

CRL-USALUM . ALUM-SRCAR01SC-VCP-1

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerCRL-USALUM
Attribute00, Attribute152-5/8
Attribute01, Attribute10Satin Chrome
Attribute0236 in (914 mm)
Attribute031/2 in (12 mm) Glass
Attribute04, Attribute174-3/4
Attribute05145 lbs (66 kg)
Attribute06, Attribute14Head & Sill Mount
Attribute07Brass
Attribute081/2
Attribute0936
Attribute11Yes
Attribute12, Attribute13, Attribute16, Weight145
AttributeKey00Height
AttributeKey01Finish
AttributeKey02Maximum Width
AttributeKey03For Use With
AttributeKey04Width
AttributeKey05, Weight_AttribMaximum Weight
AttributeKey06Mounting Type
AttributeKey07Material
AttributeKey08Glazing Thickness
AttributeKey09Maximum Door Width
AttributeKey10Finish/Color
AttributeKey11Self-Centering
AttributeKey12Maximum Door Weight - 2 Hinges (Pounds)
AttributeKey13Maximum Door Weight
AttributeKey14Mounting Style
AttributeKey15Height (Inches)
AttributeKey16Max Dr Weight - 2 Hinges (Lbs)
AttributeKey17Width (Inches)
CategoryIdL3Top and Bottom Pivot Mount Hinges
CategoryL1Bathroom Hardware
CategoryL2Shower Door Hinges & Hinge Replacement Parts
Extra Product NameCRL ALUM-SRCAR01SC-VCP-1 Satin Chrome Senior Cardiff Series Hinge
WeightUnitlbs
atoms, moq, multiple, tierMinQty11
extendedQty, qtyInStock0
MPNALUM-SRCAR01SC-VCP-1
qtySourceupdateFromUrlEntry
snippet<br/><b>CRL Senior Cardiff Series Top and Bottom Mount Pivot Hinges</b> are designed for use with 1/2" (12 mm) thick tempered safety glass. Some advantages of the Top and Bottom Mount Pivot Hinges include the fact that they carry the majority of the door weight on the bottom hinge, and have the ability to be inset from the door edge, enabling sufficient clearance for towel bars or other projections.<br/> Senior Cardiff Hinges are self-centering, with four strong springs for maximum retention strength. The Senior Cardiff Hinge is adaptable to our Deluxe Header System for enclosures not reaching the ceiling, by utilizing our Senior Adapter Block. <b>NOTE:</b> Must order SRHAB01 Adaptor Block separately. They also can be simply floor and ceiling mounted for doors that do reach the ceiling.<br/><b>Using two hinges</b> with 1/2" glass (12 mm) the hinge will hold up to 145 lbs. (66 kg) with a maximum door width of 36" (914 mm).<br/><b>SPECIFICATIONS:</b><br/><b>Glass Thickness:</b> 1/2" (12 mm) Tempered Safety Glass<br/><b>Special Features:</b> Top and Bottom Mount allows more glass exposure. Can also save on glass fabrication costs when compared against use of side mount glass-to-glass hinges requiring more cut-outs.<br/><b>Construction:</b> Solid Brass<br/><b>Hinge Swings:</b> Full Rotation<br/><b>Closing Type:</b> Self-Centering when within 15 degree of closed position.<br/><b>Cut-Out Required</b><br/><b>Includes:</b> Gaskets, Screws, and Glass Fabrication Dimensions<br/><b>This hinge series is patented (Patent No. 5,297,313).</b><br/><b>NOTE:</b> Use SRP1VP1N (sold separately) 5 degree Pivot Pins for 1/2" (12 mm) Thick Glass Option for 5 degree tighter door closer. Sold as a set, one for top hinge and one for bottom hinge.<br/><b>Product Warning:</b><br/><b>CRL Shower Door Hinges</b> are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.<br/> Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.<br/><p>.</p>
tierPrice1146.63

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareALUM-SRCAR01SC-VCP-1111 @ $146.63
