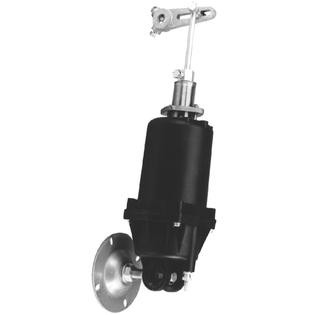

</br><b>Brand/Manufacturer</b>: Johnson Controls</br><b>Part #</b>: M9106-GGA-2</br><b>Volts</b>: 24V</br></br>Spring Return Actuator w/Plenum Cable 70 lb-in 24V</br> 2.2 Lbs</br></br></br><b>Category</b>: Ventilation/IAQ >> Indoor Air Quality >> Zoning</br><b>Keywords</b>: M9106-GGA-2JOHNSONCONTROLSROTA

Designed to position balancing, control, round, and zone dampers in HVAC systems. This non-spring return electric actuator is also designed to position blades in a VAV box, or it can be used in VVT 2-position zone applications. Long life brushless synchronous drive motor technology helps provide constant running time independent of load. The small, compact design allows installation in tight-fitting locations designed for zone damper actuator applications. Simple direct coupling helps reduce installation time and improves reliability by eliminating damper linkages. No additional linkages or couplers are required. A single screw coupling provides 3-pt. shaft gripping.<br /><br /> Item: Electric Actuator<br /> Mounting Type: Direct Mount<br /> Spring Return: No<br /> Shaft Type: Self-Centering Clamping<br /> Torque: 53 in.-lb.<br /> Stroke Deg.: 90<br /> Height: 6"<br /> Width: 4-1/4"<br /> Depth: 2-11/16"<br /> Electrical Connections: Spade Terminals<br /> Signal Type: Proportional<br /> Motor Direction: CW or CCW<br /> Ambient Temp. Range: -4 Degrees to 125 Degrees F<br /> Power Consumption: 3.2VA<br /> Timing: 60 sec.<br /> Voltage: 24VAC<br /> For Use With: Dampers and Valves<br /> Replaces Honeywell Motors: Mfr. No. MN7505A2001<br /> Includes: Anti Rotation Bracket<br />
