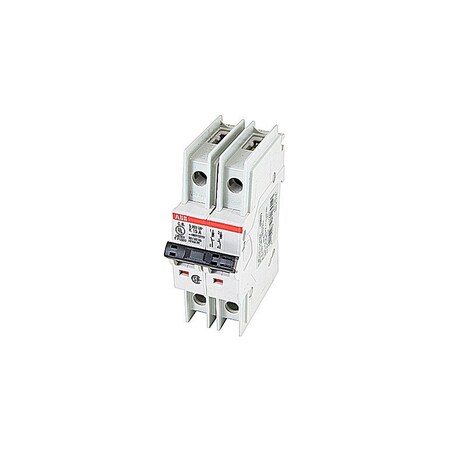

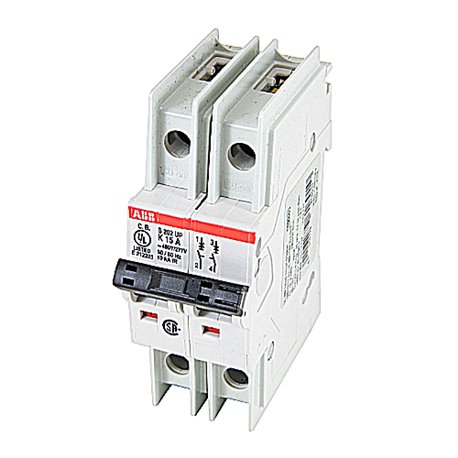

ABB - S202UP-K15 - Circuit Breaker, Branch Protection, K Curve, 2-P, 15A, 10kA, 480Y/277VAC, UL489 - RS

Part Number: 662019170473 <br> Part: ABB S202UP-K15 15A, 480Y/277V, 10 kAIC, K-Curve, UL 489 CB <br> Miniature Circuit Breaker, 15 Amps, 480Y/277V AC. K - Curve. 10 kAIC. S200 Series. Branch Circuit Protection. UL 489, CSA C 22.2. <br> Mounting:DIN Rail <br> Amps:15 <br> Volts AC:480, 277 <br> Poles:2 <br> Type:K Curve, Breaker <br> Interrupt Rating AC:10000 <br> Also known as: 662019170473, circuit breaker, din rail, 2-Pole, 480Y, 277V, K curve, ABBS202UPK15, ABB, S202UP-K15, 2-Pole Din Rail Mount Circuit Breakers, Circuit Breakers - Din Rail Mount, Circuit Breakers, Power Distribution <br> Equivalent to: <ul></ul>

ABB S200UP-K Low voltage 2-pole miniature circuit breaker has 480Y/277 VAC voltage rating and 15 A amp rating with a interrupt rating of 10 kA. Brand Name|ABB#MFR Part Number|S202UP-K15#UPC|662019170473#UNSPSC|39121603#Item|Miniature Circuit Breaker#Type|Low Voltage#Series|S200UP-K#Voltage Rating|480Y/277 VAC#Amperage Rating|15 A#Frequency Rating|50/60 Hz#Interrupt Rating|10 kA#Trip Type|Thermal/Magnetic#Trip Range|8 - 12 A Magnetic and 1.05 - 1.2 A Thermal#Number of Poles|2#Actuator Type|Toggle#Wire Size|18 - 8 AWG Busbar, 18 - 4 AWG Conductor#Terminal Type|Screw#Enclosure Type|IP20#Mounting Type|DIN-Rail#Temperature Rating|-25 to 55 deg C#Dimensions|100 mm Height x 35 mm Width x 71 mm Depth#Material|Insulation Group II, RAL 7035#Standard/Approvals|IEC/EN 60947-2, UL 489, CSA 22.2 No 5#Application|Equipment Protection in Commercial Appliances, Protection of Control Circuits Against Overcurrent Faults, Computer Equipment and Other Computer Peripheral Devices
