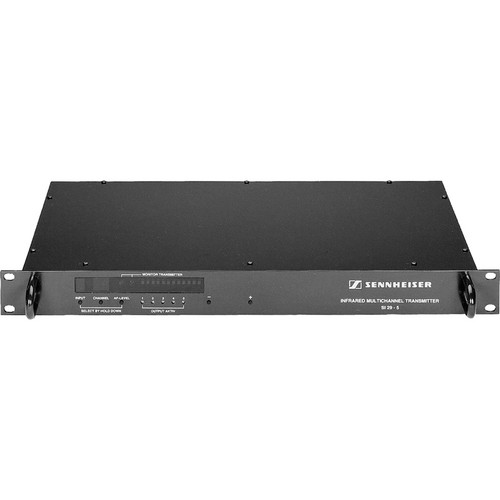

Sennheiser . SI29-5/NT

Each of these one-rack-space-high modulators can handle up to five narrowband channels and has the capability of being daisy-chained with additional SI29-5s to configure systems of up to 32 channels. Using Phase Locked Loop frequency synthesis, the five channels can be programmed to transmit on any of the 32 available frequencies. If systems of less than five channels are required, non-active channels may be turned off, resulting in increased transmission range from SZI 1029 or SZI 1015 emitter panels. The SI 29-5 requires an NT 29-120 AC power supply. FEATURES Five narrowband channels Programmable to transmit on any of 32 frequencies SPECIFICATIONS Modulation: Narrow-band FM Nominal/peak deviation: +/-6kHz / +/-7kHz Amplitude limitation: Limiting amplifer (max 30dB) Deviation display: peak / 5dB / 1dB / 0dB / -1dB / -3dB / -5dB / -7dB / -10dB / -15dB / -20dB Audio channels per chassis: 5 Channel frequencies: 55Hz - 1,335kHz AF inputs I: Transformer balanced XLR-3F sockets, optional phantom powering AF inputs II: 25-pin sub-D connector, in parallel with AF inputs I, optional phantom powering Input Sensitvity: 50mV - 3V (line), optional 0.5mV - 30mV (microphone) AF frequency response: 50Hz - 12,000Hz THD: AF signal-to-noise ratio: > 75dB(A) eff RF output: 2 x BNC, short-circuit proof RF cascading socket: 2 x BNC Output impedance: 50 ohms Suppression of harmonics: > 60dB Power supply: 12VAC, via plug-in mains unit Power consumption: max 17W Dimensions: 19.09" x 1.77" x 13.39"
