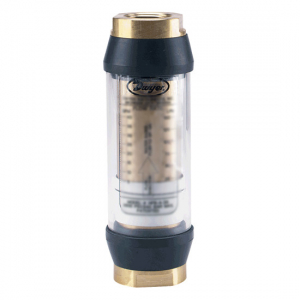

Order HFB-1-002 by Dwyer HF In-Line Flow Monitor, Brass - US Mega Store

Dwyer . HFB-1-002

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDwyer
Attribute00, Attribute08Compatible gases or liquids
Attribute01, Attribute09brass casing, Buna-N seals, PTFE coated Alnico magnet, stainless steel disk
Attribute02, Attribute10500 SSU
Attribute03, Attribute11240°F (116°C)
Attribute04, Attribute12600 psig (41 bar) for air and gas, 3500 psig (241 bar) for liquids;
Attribute05, Attribute13±4% FS over entire range; ±2.5% over center third of the measuring range
Attribute06, Attribute14±1% of full scale
Attribute07, Attribute152 lb (0.9 kg)
AttributeKey00, AttributeKey08Service
AttributeKey01, AttributeKey09Wetted Materials
AttributeKey02, AttributeKey10Maximum Viscosity
AttributeKey03, AttributeKey11Temperature Limits
AttributeKey04, AttributeKey12Pressure Limits
AttributeKey05, AttributeKey13Accuracy
AttributeKey06, AttributeKey14Repeatability
AttributeKey07, AttributeKey15, Weight_AttribShipping Weight
CategoryL1Process Control & Automation
CategoryL2Monitors
CategoryL3Flow
CategoryL4Dwyer HFB-1-002
ConditionNEW
Extra Product NameOrder HFB-1-002 by Dwyer HF In-Line Flow Monitor, Brass - US Mega Store
Weight2
WeightUnitlbs
moq, multiple, tierMinQty11
MPN, SKUHFB-1-002
qtyInStockContact Us
snippet<p><strong>Dwyer, HFB-1-002, Series HF In-Line Flow Monitor, Brass, 1/4" Female NPT Dry Seal, 4-23 SCFM Air </strong> </p> <p>&#177;2.5% Accuracy, Unrestricted Mounting </p> <p><strong>Low Cost, Series HF In-Line Flow Monitors </strong> have a design based on a floating sharp-edged orifice disk and variable area flow measurement to yield accuracy of &#177;2.5% over center one-third of scale. This unique design allows accurate performance with fluid viscosities up to 500 SSU. All internal wetted parts are contained inside a sealed metal tubular casing assuring a virtually maintenance-free unit. Flowing media forces linear motion of a spring loaded, sharp edge orifice disk and ring shaped transfer magnet which both ride on a tapered center shaft. The transfer magnet drives a clearly visible magnet follower located outside the flow tube, protected under the clear polycarbonate tube. A ring on the magnet follower indicates flow rate on the direct reading scale. Rubber bumpers are provided for external impact resistance. </p> <p>Designed for single-direction flow, Series HF Monitors are recommended for use with system filtration of at least 74 microns or a 200 mesh screen. Some applications may also require magnetic filtration. These flowmeters do not require inlet or outlet straight plumbing and can be mounted horizontally, vertically, or inverted. </p> <p><strong>Product Applications </strong> </p> <ul><li>Used to set flow rates, fluid motor and cylinder speeds. </li> <li>Check pump high pressure performance, pressure relief valve settings, fluid handling systems in agricultural, construction or industrial machinery, power tools and equipment. </li> <li>Monitor petrochemical operations with brass or stainless steel models. </li> <li>Industrial pneumatic systems air flow can be monitored with the HFA models which are calibrated at 100 psig inlet pressure. </li> </ul>
tierPrice1415.7

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comHFB-1-0021Contact Us11 @ $415.70
MegadepotHFB-1-00211
RadwellHFB-1-00211
