15062-001 | Lenco 101XD Extreme Duty Actuator - 24V - 2-1/4" Stroke - 5/16" Hardware - 15062-001

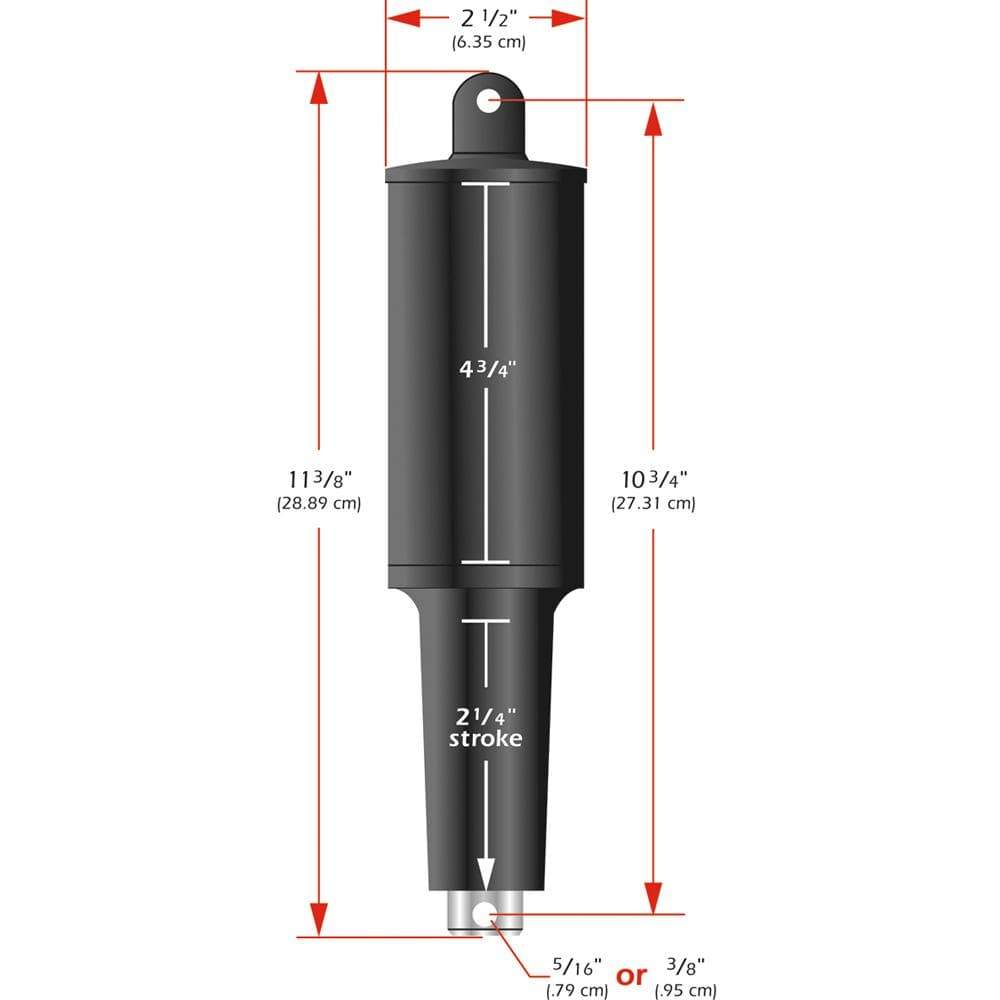

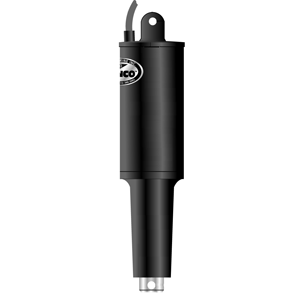

101 XD Extreme Duty ActuatorPart # (Superseded #)15062-001(101 XD-12) 24 Volt w/6' (1.83 m) leads with Deutsch connectorsand 5/16" (.79 cm) mounting hardware. Solid stainless steel billet endIncluded in Heavy Duty PerformanceTab KitsStroke: 2-1/4" (5.72 cm)Length overall: 11-3/8" (28.89 cm)Length pin to pin: 10-3/4" (27.31)Diameter (upper housing): 2-1/2" (6.35 cm)Top cap gland seal sheaths the actuator cable outer jacket as well as both internal conductors for maximum waterproofingCorrosion proof Vandar mounts Stainless steel ram won't flex, even under extreme loadsDouble O-ring for maximum protectionBallscrew rotates freely on 12 ball bearings at both ends of its stroke so there's no need for complicated limit switches and clutchesSelf-locking ballscrew locks into position and will not driftPrecision molded, powdered metal, high alloy gears provide high accuracy, high wear resistance, and high strength for long lifeTough, high-torque motor easily transfers 750 lbsHigh-impact, ultraviolet resistant nylon 66, 50% glass fiber reinforced thermoplastic housingCorrosion proof Vandar cap and mount, stands up to severe loads

<b>101 XD Extreme Duty Actuator</b><br/><br/>Part # (Superseded #)<br/>15062-001(101 XD-12) 24 Volt w/6' (1.83 m) leads with Deutsch connectors<br/>and 5/16" (.79 cm) mounting hardware. Solid stainless steel billet end<br/>Included in Heavy Duty PerformanceTab Kits<br/>Stroke: 2-1/4" (5.72 cm)<br/>Length overall: 11-3/8" (28.89 cm)<br/>Length pin to pin: 10-3/4" (27.31)<br/>Diameter (upper housing): 2-1/2" (6.35 cm)<br/><br/><ul><li>Top cap gland seal sheaths the actuator cable outer jacket as well as both internal conductors for maximum waterproofing<br/><li>Corrosion proof Vandar mounts <br/><li>Stainless steel ram won't flex, even under extreme loads<br/><li>Double O-ring for maximum protection<br/><li>Ballscrew rotates freely on 12 ball bearings at both ends of its stroke so there's no need for complicated limit switches and clutches<br/><li>Self-locking ballscrew locks into position and will not drift<br/><li>Precision molded, powdered metal, high alloy gears provide high accuracy, high wear resistance, and high strength for long life<br/><li>Tough, high-torque motor easily transfers 750 lbs<br/><li>High-impact, ultraviolet resistant nylon 66, 50% glass fiber reinforced thermoplastic housing<br/><li>Corrosion proof Vandar cap and mount, stands up to severe loads </li></ul>
