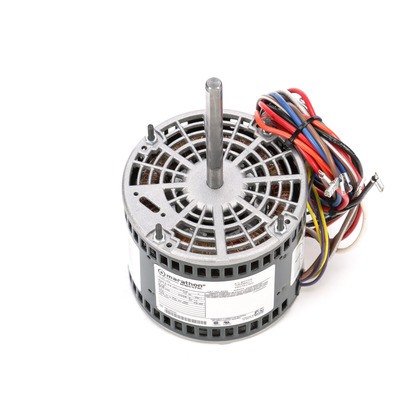

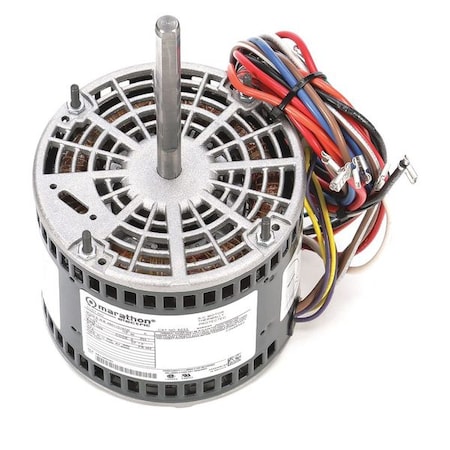

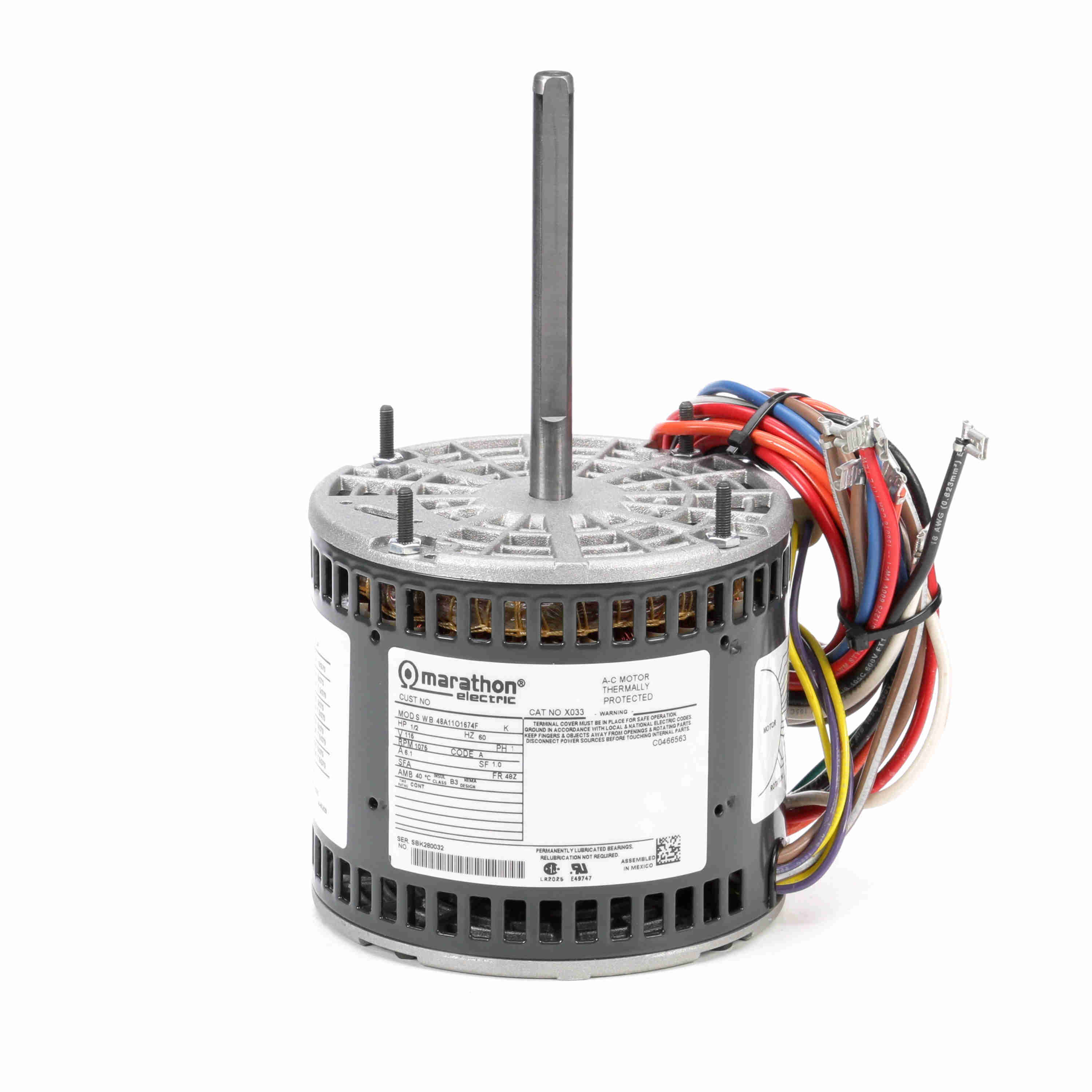

Marathon 048A11O1674, Fan & Blower Direct Drive HVAC Motor, 1/2 HP, 115 Volts, 6.1 Amps, 1 Phase, 1075 RPM, OAO Enclosure, 48Z Frame, Round - Extended Studs, Rolled Steel Frame, Catalog No: X033

'Direct Drive Blower Motor, Permanent Split Capacitor Motor Type, Open Air-Over Enclosure, 1/2 HP, 1075 Nameplate RPM, Voltage 115, 6.1 Full Load Amps, 60 Hz, 1 Phase, 48Y Frame, Service Factor 1.0, Max. Ambient Temp. 40 Degrees C, Insulation Class B, Duty Continuous, Number of Speeds 4, Mounting Stud, Shaft Orientation Horizontal, Bearings Ball, Thermal Protection Auto, Rotation CW/CCW, Nominal Efficiency 56.9 Percent, Body Dia. 5-11/16 In., Length Less Shaft 5 In., Overall Length 10 In.'

Keep air circulating with this direct drive blower motor. It features a permanent split capacitor motor design, and is suitable for use in direct-drive fans and blowers. It also features an open, air-over enclosure design, which mounts within the airflow of the fan to stay cool. Auto thermal protection allows the motor to start automatically after tripping.<br /><br /> Item: Direct Drive Blower Motor<br /> Motor Application: HVAC/R<br /> Motor Sub Application: Direct Drive Fan/Blower<br /> Motor Design: Permanent Split Capacitor<br /> Motor Enclosure Design: Open Air-Over<br /> HP: 1/2<br /> Nameplate RPM: 1075<br /> Voltage: 115<br /> Full Load Amps: 6.1<br /> Hz: 60<br /> Phase: 1<br /> Frame: 48Y<br /> Motor Service Factor: 1.00<br /> Max. Ambient Temp.: 40 Degrees C<br /> Ins. Class: B<br /> Duty: Continuous<br /> No. of Speeds: 4<br /> Motor Mounting Type: Stud<br /> Motor Mounting Position: Horizontal<br /> Motor Bearings: Ball<br /> Motor Thermal Protection: Auto<br /> Motor Shaft Rotation: CW/CCW<br /> Nominal Efficiency: 56.9%<br /> Body Dia.: 5-11/16"<br /> Length Less Shaft: 5"<br /> Overall Length: 10"<br /> Shaft Dia.: 1/2"<br /> Shaft Length: 5"<br /> Motor Shaft Design: Flat<br /> Capacitor Required: 2MDV7<br /> Mounting Stud Location: Both Ends<br /> Mounting Stud Pattern: 3-5/8" x 3-5/8"<br /> Stud Size: #10-32<br /> Mounting Stud Length: 3/4", 9/16"<br /> Bolt Circle Dia.: 5-1/8"<br /> RPM Range: 1001-1100<br /> Standards: UL Recognized ( E6312); CSA Certified(LR2025)<br /> Application: Blowers, Fans and Air Circulators<br /> Manufacturers Warranty Length: 1 yr.<br />
