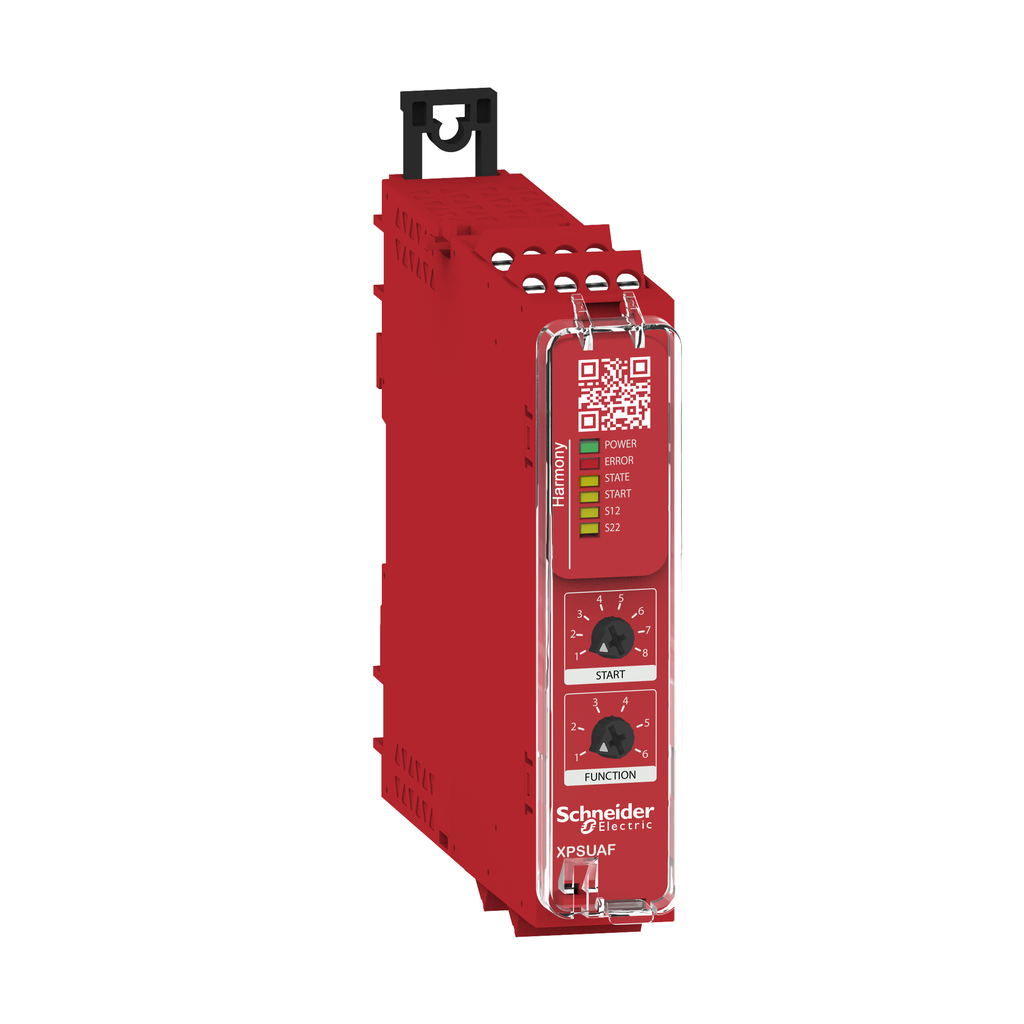

Safety module, Harmony Safety Automation, Cat.4, potential free NC/NC, NO/NC, PNP/PNP, 24v AC/DC, screw | Mayer Electric

SQUARE D . SQDXPSUAF13AP

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
Attribute0024 V AC - 15...10 % || 24 V DC - 20...20 %
Attribute01Harmony Safety Automation
Attribute02safety module
Attribute03XPSUAF
Attribute04removable screw terminal block, 0.2...2.5 mm? solid or flexible || removable screw terminal block, 0.25...2.5 mm? flexible with ferrule single conductor || removable screw terminal block, 0.2...1.5 mm? solid or flexible twin conductor || removable screw terminal block, 2 x 0.25...1 mm? flexible with ferrule without cable end, with bezel || removable screw terminal block, 2 x 0.5...1.5 mm? flexible with ferrule with cable end, with bezel
Attribute05monitoring antivalent contacts || for emergency stop, guard and light curtain monitoring
Attribute06MTTFd > 30 years ISO 13849-1 || Dcavg >= 99 % ISO 13849-1 || PFHd = 1.13E-09 ISO 13849-1 || HFT = 1 IEC 62061 || PFHd = 1.13E-09 IEC 62061 || SFF > 99% IEC 62061 || HFT = 1 IEC 61508-1 || PFHd = 1.13E-09 IEC 61508-1 || SFF > 99% IEC 61508-1 || type = B IEC 61508-1
Attribute07NC pair || PNP pair || antivalent pair || OSSD pair
Attribute08emergency stop button with 2 NC contacts || guard monitoring with 1 or 2 limit switches || monitoring 2 PNP sensors || magnetic switch monitoring || light curtain monitoring || RFID switch || monitoring of electro-sensitive protection equipment (ESPE) || proximity sensor monitoring
Attribute09can reach PL e/category 4 ISO 13849-1 || can reach SILCL 3 IEC 62061 || can reach SIL 3 IEC 61508
Attribute103 pulsed output
Attribute11100 mm
Attribute1235 mm symmetrical DIN rail
Attribute1315 V relay output
Attribute1410 mA relay output
Attribute158 A
Attribute16semiconductor pulsed diagnostic output Z1, 20 mA
Attribute1710 A gG NO relay output circuit IEC 60947-1
Attribute184 kV II EN/IEC 60947-1
Attribute190.200 kg
Attribute20automatic/manual/monitored
Attribute212
Attribute22normally closed circuit ISO 14119 || XC limit switch ISO 14119 || mechanical contact ISO 14119 || normally closed circuit ISO 13850 || antivalent pair ISO 14119 || OSSD pair IEC 61496-1-2 || 3-wire proximity sensors PNP
Attribute235.0 VA 24 V AC 50/60 Hz
Attribute245 A AC-1 || 3 A AC-15 || 5 A DC-1 || 3 A DC-13
Attribute253 NO
Attribute26250 V 2)EN/IEC 60947-1
Attribute272.0 W 24 V DC
Attribute28500 Ohm
Attribute29for power ON LED (green) || for error LED (red) || for start LED (yellow) || for safety status LED (yellow) || for safety input S12 LED (yellow) || for safety input S22 LED (yellow)
Attribute30internal, electronic
Attribute3122.5 mm
Attribute32120 mm
Attribute330.5 s || 2 s || 4 s
Attribute3420 ms
Attribute35, Attribute36, Attribute39Yes
Attribute37ENVPEP1811003EN
Attribute38Green Premium product
Attribute40Reference contains Substances of Very High Concern above the threshold
Attribute41Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Attribute42The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Attribute43X
Attribute44ENVEOLI1811003EN
Attribute45Pro-active compliance (Product out of EU RoHS legal scope)
Attribute46T?V || cULus
Attribute47IP20 terminals)EN/IEC 60529 || IP40 housing)EN/IEC 60529 || IP54 mounting area)EN/IEC 60529
Attribute48IEC 60947-5-1 || IEC 61508-1 functional safety standard || IEC 61508-2 functional safety standard || IEC 61508-3 functional safety standard || IEC 61508-4 functional safety standard || IEC 61508-5 functional safety standard || IEC 61508-6 functional safety standard || IEC 61508-7 functional safety standard || ISO 13849-1 functional safety standard || IEC 62061 functional safety standard
Attribute49-25-85 ?C
Attribute505-95 % non-condensing
AttributeKey00[Us] Rated Supply Voltage
AttributeKey01Range Of Product
AttributeKey02Product Or Component Type
AttributeKey03Safety Module Name
AttributeKey04Connections - Terminals
AttributeKey05Safety Module Application
AttributeKey06Safety Reliability Data
AttributeKey07Electrical Circuit Type
AttributeKey08Function Of Module
AttributeKey09Safety Level
AttributeKey10Number Of Outputs
AttributeKey11, height_AttribHeight
AttributeKey12Mounting Support
AttributeKey13Minimum Output Voltage
AttributeKey14Minimum Output Current
AttributeKey15[Ith] Conventional Free Air Thermal Current
AttributeKey16Input/Output Type
AttributeKey17Associated Fuse Rating
AttributeKey18[Uimp] Rated Impulse Withstand Voltage
AttributeKey19, Weight_AttribNet Weight
AttributeKey20Type Of Start
AttributeKey21Number Of Inputs
AttributeKey22Input Compatibility
AttributeKey23Power Consumption In Va
AttributeKey24[Ie] Rated Operational Current
AttributeKey25Auxiliary Contact Composition
AttributeKey26[Ui] Rated Insulation Voltage
AttributeKey27Power Consumption In W
AttributeKey28Maximum Line Resistance
AttributeKey29Local Signalling
AttributeKey30Input Protection Type
AttributeKey31, width_AttribWidth
AttributeKey32, length_AttribDepth
AttributeKey33Synchronisation Time Between Inputs
AttributeKey34Maximum Response Time On Input Open
AttributeKey35Rohs Exemption Information
AttributeKey36Mercury Free
AttributeKey37Environmental Disclosure
AttributeKey38Sustainable Offer Status
AttributeKey39Pvc Free
AttributeKey40Reach Regulation
AttributeKey41California Proposition 65 : WARNING: This product can expose you to chemicals including
AttributeKey42Weee
AttributeKey43China Rohs Regulation
AttributeKey44Circularity Profile
AttributeKey45Eu Rohs Directive
AttributeKey46Product Certifications
AttributeKey47Ip Degree Of Protection
AttributeKey48Standards
AttributeKey49Ambient Air Temperature For Storage
AttributeKey50Relative Humidity
DimensionUnitmm
Extra Product NameSafety module, Harmony Safety Automation, Cat.4, potential free NC/NC, NO/NC, PNP/PNP, 24v AC/DC, screw | Mayer Electric
UPC3606489601614
Weight0.200
WeightUnitkg
depth, length120.0
height100.0
jsonUrlData/Product/SQUARE-D-Safety-module-Harmony-Safety-Automation-Cat-4-potential-free-NC-NC-NO-NC-PNP-PNP-24v-AC-DC-screw-3606489601614
jsonUrlData2b3b07fba-fdb0-42d0-9c6a-add700533be3
moq, multiple, tierMinQty11
MPN, SKUSQDXPSUAF13AP
qtyInStock0
tierPrice1229.79
width22.5

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDXPSUAF13AP111 @ $229.79
