Service Caster

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product Name, Brand, Label, Publisher, StudioService Caster
Attribute008
Attribute012
Attribute02(2) Swivel caster w/side lock brake & bolt on swivel lock & (2) swivel casters w/side lock brakes
Attribute03Thermoplastic Rubber on Polyolefin
Attribute04Bright Zinc Plated Finish
Attribute054" x 4-1/2"
Attribute069-1/2"
Attribute07-20 degrees F to 180 degrees F
Attribute08Top Plate
Attribute09, Model, ModelNumber, Model_numberSeries#KP30
Attribute104 Top Lock Brakes & 2 Bolt On Swivel Locks
Attribute1175A
Attribute122-5/8" x 3-5/8" to 3" x 3"
Attribute132400
Attribute14, countryOfOriginUnited States
AttributeKey00, length_AttribWheel Dia.
AttributeKey01, width_AttribWheel Width
AttributeKey02Type
AttributeKey03Material
AttributeKey04Finish
AttributeKey05Plate Size
AttributeKey06, height_AttribMounting Height
AttributeKey07Caster Temp. Range
AttributeKey08Caster Mounting Type
AttributeKey09Series
AttributeKey10Caster Swivel Lock Type
AttributeKey11Durometer
AttributeKey12Plate Caster Bolt Hole Pattern
AttributeKey13Capacity (Lb.)
AttributeKey14Country of Origin (subject to change)
DimensionUnitinch
WeightUnitlbs
diameter, length8.0
extendedLead26
extendedQty-2
height9.5
jsonUrlData924526ffbdad25e5923b
moq, multiple, tierMinQty1, Item_package_quantity, PackageQuantity1
MPN, PartNumber, Part_numberSCC-KP30S820-TPRRF-SLB-BSL-2-SLB-2
qtyInStock0
tierPrice1615.67
urlhttps://www.zoro.com/service-caster-8-inch-kingpinless-thermoplastic-rubber-wheel-caster-brakes-2-swivel-locks-4pk-scc-kp30s820-tprrf-slb-bsl-2-slb-2/i/G705436712/
width2.0
ASINB08KGRW7KP B08KHCYMR1
AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
Amount0.00
AsinB08KGRW7KP
Bullet_pointBrake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster. Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing. These Service Caster Series #KP30 Thermoplastic Rubber Flat Tread casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height. Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on. Weight capacity ranges from 300 lbs on the 4” caster, 350 lbs on the 5”, 500 lbs on the 6” and 600 lbs. on the 8”.
ClassificationId511228
Color4 Swivel w/4 Brakes & 2 Swivel Locks
Compatible_with_vehicle_typeTruck
Currency, CurrencyCodeUSD
DisplayNameHardware
FetchTime1697523884 1704397885
Height, Width1000 500 75
ItemClassificationBASE_PRODUCT
ItemName, Item_name, TitleKingpinless Thermo Rubber Flat Tread Swivel Top Plate Caster Set 4 w/8' x 2" Gray Wheels-Includes 2 Swivel with Brakes and Bolt on Swvl Locks&2 Swvl with Brakes-2400lbs Total Cpty-Service Caster Brand
Item_type_keywordplate-casters
KeywordSCC-KP30S820-TPRRF-SLB-BSL-2-BSL-2
Linkhttps://m.media-amazon.com/images/I/41Kvl+LNXsL._SL75_.jpg https://m.media-amazon.com/images/I/41Kvl+LNXsL.jpg https://m.media-amazon.com/images/I/41lhTA1aSzL._SL75_.jpg https://m.media-amazon.com/images/I/41lhTA1aSzL.jpg https://m.media-amazon.com/images/I/51ViUzr1QrL._SL75_.jpg https://m.media-amazon.com/images/I/51ViUzr1QrL.jpg https://m.media-amazon.com/images/I/51kvYpvRWCL._SL75_.jpg https://m.media-amazon.com/images/I/51kvYpvRWCL.jpg https://m.media-amazon.com/images/I/51xs42N1k0L._SL75_.jpg https://m.media-amazon.com/images/I/51xs42N1k0L.jpg https://m.media-amazon.com/images/I/51yAWcDoYWL.jpg https://m.media-amazon.com/images/I/51zL-ecbp+L._SL75_.jpg https://m.media-amazon.com/images/I/51zL-ecbp+L.jpg https://m.media-amazon.com/images/I/61+oR9-3mdL.jpg https://m.media-amazon.com/images/I/61OX5C1Hy-L.jpg https://m.media-amazon.com/images/I/61PP01j6zlL.jpg https://m.media-amazon.com/images/I/61WdhmR8IIL.jpg https://m.media-amazon.com/images/I/71bNmgWiyEL.jpg
List_price0.0
Load_capacity600.0
Marketplace_idATVPDKIKX0DER
Material, MaterialTypeThermoplastic Rubber Tread on Polyolefin Core
Name, ThemeSIZE_NAME/COLOR_NAME
NumberOfItems, Number_of_items4
ParentAsinsB08KHCYMR1
ProductGroup, WebsiteDisplayGroupNameBISS Basic
ProductType, ProductTypeNameWHEEL
Product_descriptionListing is for a set of four (4) Service Caster Series #KP30 casters, two (2) swivel casters with side lock brakes & bolt on swivel locks and two (2) swivel casters with a side lock brakes, with 8" diameter by 2" wide thermoplastic rubber flat tread wheels capable of supporting a total weight of 2,400 lbs. (600 lbs./caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series KP30 thermoplastic rubber on polyolefin core flat tread casters. The soft flat tread is made of thermoplastic rubber that is non-marking and non-marring, and on the polyolefin core provides a long lasting, high capacity wheel that is capable of easy rolling under heavy loads. Featuring a Kingpinless hot forged ASTM1045 steel design that increases caster durability and integrity, the series KP30 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features 3/8” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series KP30 casters are finely crafted with grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series KP30, keeping you moving forward.
Product_site_launch_date2020-09-30T13:18:42.894Z
Size2.0 8" Wheel
Supplier_declared_dg_hz_regulationnot_applicable
TypeVARIATION
URLhttps://m.media-amazon.com/images/I/41Kvl+LNXsL._SL75_.jpg
Unitinches pounds
Unitspixels
VariantMAIN PT01 PT02 PT03 PT04 PT05
VariationThemecolor size
WebsiteDisplayGroupbiss_basic_display_on_website
Website_shipping_weight31.8

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG705436712111 @ $615.67

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

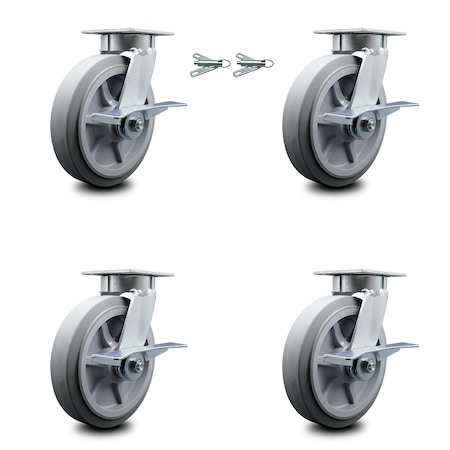

Kingpinless Thermo Rubber Flat Tread Swivel Top Plate Caster Set 4 w/8' x 2" Gray Wheels-Includes 2 Swivel with Brakes and Bolt on Swvl Locks&2 Swvl with Brakes-2400lbs Total Cpty-Service Caster Brand
Brand: Service Caster
Listing is for a set of four (4) Service Caster Series #KP30 casters, two (2) swivel casters with side lock brakes & bolt on swivel locks and two (2) swivel casters with a side lock brakes, with 8" diameter by 2" wide thermoplastic rubber flat tread wheels capable of supporting a total weight of 2,400 lbs. (600 lbs./caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series KP30 thermoplastic rubber on polyolefin core flat tread casters. The soft flat tread is made of thermoplastic rubber that is non-marking and non-marring, and on the polyolefin core provides a long lasting, high capacity wheel that is capable of easy rolling under heavy loads. Featuring a Kingpinless hot forged ASTM1045 steel design that increases caster durability and integrity, the series KP30 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features 3/8” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series KP30 casters are finely crafted with grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series KP30, keeping you moving forward.
Details
  • These Service Caster Series #KP30 Thermoplastic Rubber Flat Tread casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height.
  • Weight capacity ranges from 300 lbs on the 4” caster, 350 lbs on the 5”, 500 lbs on the 6” and 600 lbs. on the 8”.
  • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.
  • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.
  • Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing.
Listing
Product groupBISS Basic
Product typeWHEEL
ModelSeries#KP30
Part numberSCC-KP30S820-TPRRF-SLB-BSL-2-SLB-2
Items per pack4
LabelService Caster
ManufacturerService Caster
