Order CTP1B100PSIG-NC by Cecomp Electronics CTP1B Digital Pressure Gauge - US Mega Store

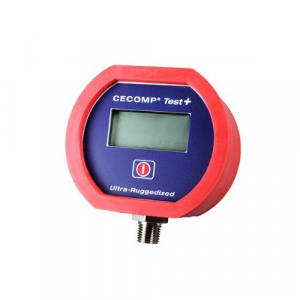

Cecomp Electronics . CTP1B100PSIG-NC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerCecomp Electronics
Attribute00, Attribute18±0.01% FS, included in accuracy
Attribute01, Attribute19±0.015% FS, included in accuracy
Attribute02, Attribute20±0.25% full scale ±1 least significant digit
Attribute03, Attribute21±0.1% full scale, ±1 least significant digit
Attribute04, Attribute223 readings per second nominal display update rate 4 digit LCD, 0.5"H and 5 character 0.25"H alphanumeric White LED backlight active with button keypress
Attribute05, Attribute232 AA alkaline included Approx. 150-1500 hours depending on backlight usage Low battery symbol on display
Attribute06, Attribute24Minimum and/or maximum readings stored in memory, readings cleared or stored at shutoff. User configurable.
Attribute07, Attribute25User selectable 1 minute to 8 hours or front button on/off
Attribute08, Attribute269 ounces (approximately)
Attribute09, Attribute27Epoxy powder coated aluminum case and bezel, front and rear rubber gaskets, polycarbonate label, rubber boot
Attribute10, Attribute28All wetted parts are 316L stainless steel
Attribute11, Attribute291/4" NPT male fitting
Attribute12, Attribute303.67"W x 3.19"H x 2"D with boot, not including fitting
Attribute13, Attribute3132 to 158°F (0 to 70°C)
Attribute14, Attribute32-4 to 185°F (-20 to 85°C)
Attribute15, Attribute33-40 to 203°F (-40 to 95°C)
Attribute16, Attribute340-100 psi
Attribute17, Attribute35100
AttributeKey00, AttributeKey18Accuracy Sensor repeatability
AttributeKey01, AttributeKey19Accuracy Sensor hysteresis
AttributeKey02, AttributeKey20Accuracy Vacuum, compound, bipolar ranges
AttributeKey03, AttributeKey21Accuracy Pressure and absolute ranges
AttributeKey04, AttributeKey22Display
AttributeKey05, AttributeKey23Batteries, Battery Life, Low Battery Indication
AttributeKey06, AttributeKey24Min/Max Memory
AttributeKey07, AttributeKey25Auto Shutoff
AttributeKey08, AttributeKey26, Weight_AttribWeight Gauge
AttributeKey09, AttributeKey27Housing Materials
AttributeKey10, AttributeKey28Material
AttributeKey11, AttributeKey29Connection
AttributeKey12, AttributeKey30Dimensions
AttributeKey13, AttributeKey31Environmental Temperature Compensated range
AttributeKey14, AttributeKey32Environmental Temperature Operating
AttributeKey15, AttributeKey33Environmental Temperature Storage
AttributeKey16, AttributeKey34Pounds/sq. inch
AttributeKey17, AttributeKey35PSI
CategoryL1Process Control & Automation
CategoryL2Gauges
CategoryL3Pressure & Vacuum
CategoryL4Cecomp Electronics CTP1B100PSIG-NC
ConditionNEW
Extra Product NameOrder CTP1B100PSIG-NC by Cecomp Electronics CTP1B Digital Pressure Gauge - US Mega Store
Weight9
WeightUnitoz
moq, multiple, tierMinQty11
MPN, SKUCTP1B100PSIG-NC
qtyInStock2 Weeks Factory Lead Time
snippet<p><strong>Cecomp Electronics, CTP1B100PSIG-NC, CTP1B Battery Powered Digital Pressure Gauge with 1 Button Operation and NIST Traceability Documentation, 0-100 PSI </strong> </p> <p><strong>Power-Up </strong> </p> <p>Press and hold the front button for approximately 1 second. The display is tested, the default full-scale range is indicated, the full-scale range in the selected units are indicated, the display is tested again, then the actual pressure and units are displayed. The back lighting will turn on for 1 minute and then automatically shut off. Display back lighting can be turned on by momentarily pressing the power button whenever the gauge is on. This also restarts the auto shutoff timer. The display back lighting will not be apparent under bright lighting conditions. </p> <p><strong>Power-Up with Zero </strong> </p> <p>Absolute reference gauges do not use the zero feature since they read atmospheric pressure under normal conditions. Be sure the gauge port is exposed to normal atmospheric pressure and no pressure is applied. The zeroing function is only activated at each power-up and the stored zero correction is erased when the gauge is shut off. Press and hold the front button. The display is tested and then oooo is displayed. The gauge is now zeroed. Release the button and the full-scale range in the selected units are indicated, the display is tested again, then the actual pressure and units are displayed. Attempting to zero the gauge with pressure greater than approximately 3% of full-scale pressure or vacuum applied will result in an error condition, and the display will alternately indicate Err 0 and the actual measured pressure. The gauge must be powered down to reset the error condition. </p> <p><strong>Shut-Down </strong> </p> <p>To shut off the gauge manually at any time, press and hold the button until the display indicates OFF (about 5 seconds) and then release. When an auto shutoff timer is used, the display indicates OFF five seconds prior to auto shutoff. The button can be pressed to keep the gauge on. The auto shutoff and backlight (if equipped) timers are reset whenever the button is pressed and released. If the gauge is set up without auto shutoff (on/off operation) it will stay on until manually shut off or until the batteries are depleted. Turn gauge off when not in use to conserve battery life. </p> <p><strong>Options </strong> </p> <ul><li><strong>NC </strong> - NIST traceability documentation, 5 points and date </li> </ul> <p>Red rubber boot White LED backlight All metal case Port reinforcement Coated circuit boards </p> <p><strong>Features: </strong> </p> <ul><li>&plusmn;0.1% Test Gauge Accuracy in Most Ranges </li> <li>Ultra-Ruggedized Design </li> <li>316L Stainless Steel Wetted Parts </li> <li>Selectable Units and Auto Shutoff Times </li> <li>White LED Display Backlight </li> <li>Min/Max Memory </li> </ul>
tierPrice1608

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comCTP1B100PSIG-NC12 Weeks Factory Lead Time11 @ $608.00
heavydutydepot.comCTP1B100PSIG-NC111 @ $608.00
MegadepotCTP1B100PSIG-NC111 @ $573.00
