MEAN WELL . SP-320-24

[Taiwan] meanwell authorized general agent SP-320-24 320W 24V13A meanwell switching power supply with PFC

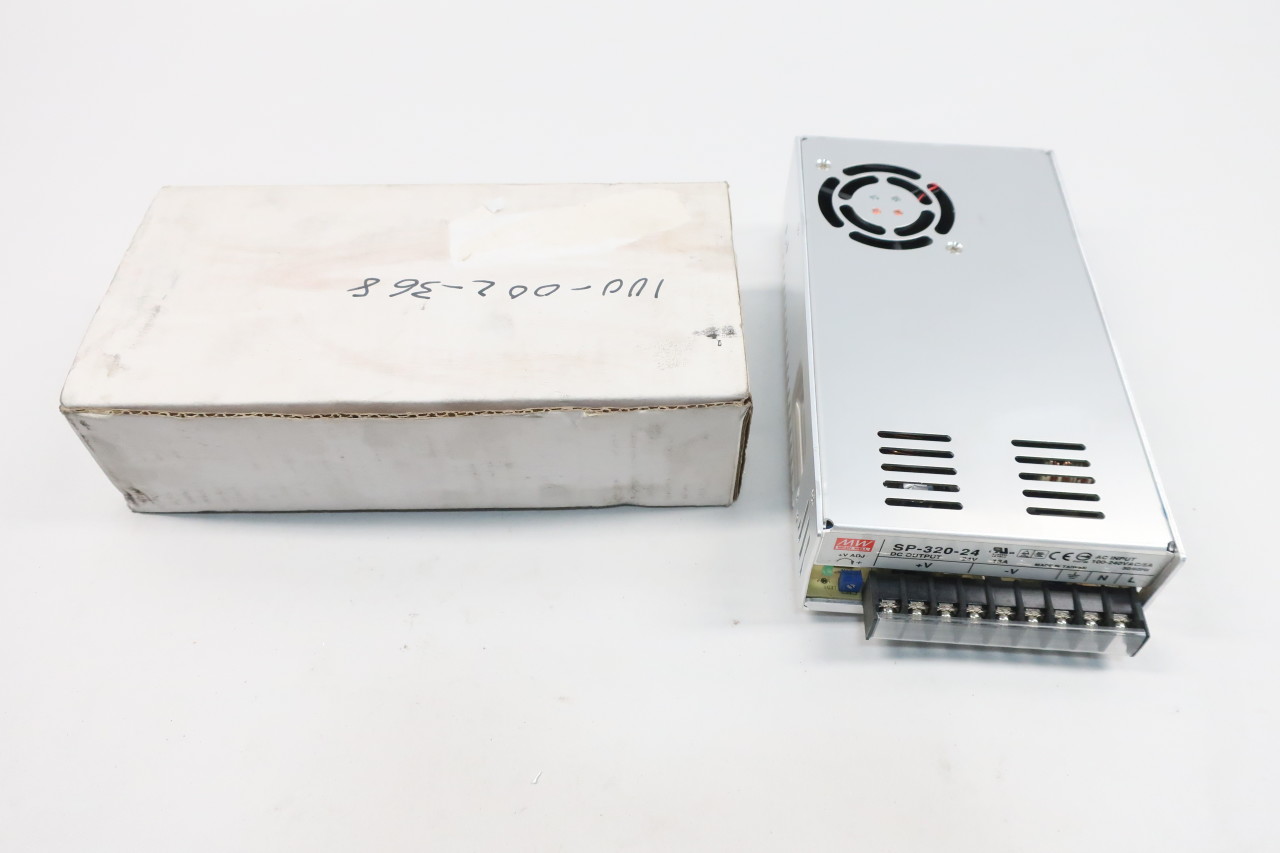

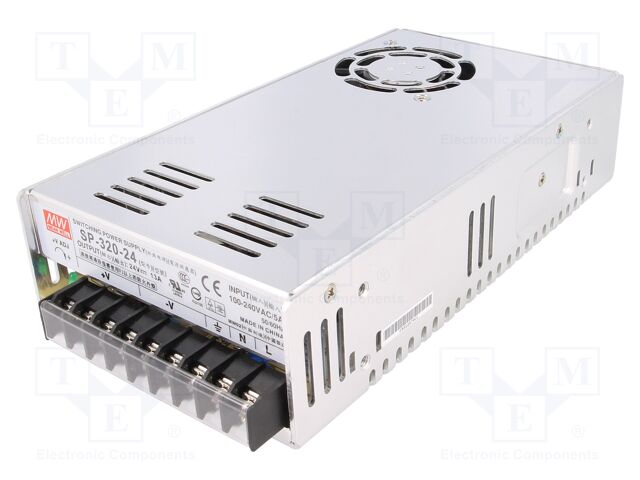

SP-320-24 Mean Well Power Supply

Welcome,you can buy all of the MEAN WELL power supplies in <strong>Power home</strong>.<br /> <br /> We are MEAN WELL agents,there are more than 5000 kinds of products in stock,ensure rapid delivery,price advantage,if you are business customer or purchase <strong>more than 20 pcs</strong>,please contact us for a more favorable price!<br /> <br /> Note:too cheap products may be imitation or defective products,usually a few months later may be broken,the original product can be used for 5 years or more,the power will not burn the equipment,this is the real bargain!

<p><b>Features:</b></p> <p>Universal AC input / Full range</p> <p>Built-in active PFC function</p> <p>Protections: Short circuit / Overload / Over voltage / Over temperature</p> <p>Forced air cooling by built-in DC fan</p> <p>Optional remote ON/OFF control</p> <p>100% full load burn-in test</p> <p>3 years warranty</p> <p><b>General Specification (Please refer to images below for detailed datasheet)</b></p> <p>AC input voltage range:88~264VAC</p> <p>AC inrush current (max.):Cold start, 40A at 230VAC</p> <p>DC adjustment range:±10% rated output voltage</p> <p>Overload protection Range:105%~135%</p> <p>Overload protection Type:Hiccup mode, auto-recovery</p> <p>Over voltage protection:115%~145%</p> <p>Withstand voltage:I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC(short for SP-480), 1 minute</p> <p>Working temperature:-20~+65°C</p> <p>Safety standards:UL60950-1, TUV EN60950-1 approved; GB4943 approved also for SP-320 (expect for 3.3V/ 5PNC/ 36V)</p> <p>EMC standards:EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, GB9254</p> <p>Connection:9P / 9.5mm pitch terminal block with cover</p> <p>Dimension:(LxWxH):215x115x50</p> <p>Case No.:912G</p> <p>Packing:12pcs / 14.0kg</p>

Mingweft power suppliers worldwide (DC output) ranked the third and the top 2 power plants mostly use ODM/OEM as the main source of revenue, while 99% of the proceeds come from standard power supply, is a power supply manufacturer with its own brand - MEAN WELL as the main operating strategy. The product is highly efficient and high quality and is generally covered by 3 years warranty
