Order L6EPB-B-D-3-A by W.E. Anderson Series L6 Liquid Level Switch - US Mega Store

W.E. Anderson . L6EPB-B-D-3-A

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerW.E. Anderson
Attribute00, Attribute10Liquids compatible with wetted materials
Attribute01, Attribute11-4 to 220°F (-20 to 105°C) standard, MT high temperature option 400°F (205°C), (MT option not UL, CSA or ATEX). ATEX compliant AT option ambient temperature: -4 to 167°F (-20 to 75°C) process temperature: -4 to 220°F (-20 to 105°C)
Attribute02, Attribute12Weatherproof and explosion-proof. Listed with UL and CSA for Class I, Groups A, B, C and D; Class II, Groups E, F, and G. (Group A on stainless steel body models only.) ATEX CE 0344 EX II 2 G EEx d IIC T6 Process Temp≤75°C. EC-Type Certificate No: KEMA 04ATEX2128
Attribute03, Attribute13UL models: 18 AWG, 18" (460 mm) long. CSA and ATEX models: terminal block
Attribute04, Attribute14Brass
Attribute05, Attribute153/4" male NPT standard, 3/4" female NPT on junction box models
Attribute06, Attribute161" male NPT on models without external float chamber, 1" female NPT on models with external float chamber
Attribute07, Attribute17Horizontal with index arrow pointing down
Attribute08, Attribute18Approximately 1 lb (.5 kg) without external float chamber, 1.75 lb (.8 kg) with external float chamber
Attribute09, Attribute19ATEX, CE, CSA, IECEx, UL
AttributeKey00, AttributeKey10Service
AttributeKey01, AttributeKey11Temperature Limits
AttributeKey02, AttributeKey12Enclosure Rating
AttributeKey03, AttributeKey13Electrical Connections
AttributeKey04, AttributeKey14Upper Body
AttributeKey05, AttributeKey15Conduit Connection
AttributeKey06, AttributeKey16Process Connection
AttributeKey07, AttributeKey17Mounting Orientation
AttributeKey08, AttributeKey18, Weight_AttribWeight
AttributeKey09, AttributeKey19Agency Approvals
CategoryL1Process Control & Automation
CategoryL2Switches
CategoryL3Level
CategoryL4W.E. Anderson L6EPB-B-D-3-A
ConditionNEW
Extra Product NameOrder L6EPB-B-D-3-A by W.E. Anderson Series L6 Liquid Level Switch - US Mega Store
Weight, moq, multiple, tierMinQty11
WeightUnitlbs
MPN, SKUL6EPB-B-D-3-A
qtyInStock-2
qtySourceFieldMap

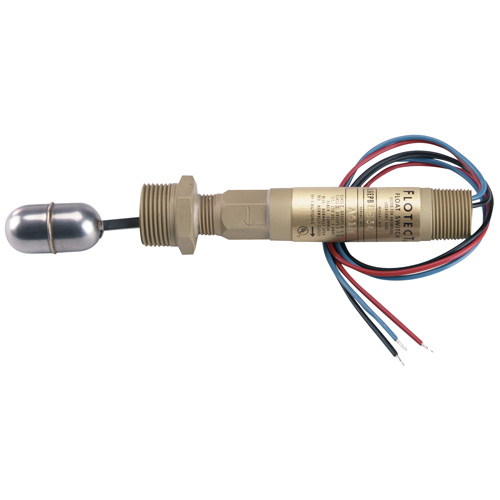

snippet<p><strong>W.E. Anderson, L6EPB-B-D-3-A, Series L6 Flotect Liquid Level Switch, Brass Body, DPDT, Side Wall Mount </strong> </p> <p>Easy In-wall or External Installation </p> <p><strong>Surprisingly compact, </strong> the Series L6 Flotect&#174; Level Switch is designed and built for years of trouble-free service in a wide variety of process liquid level applications. Operation is simple and dependable with no mechanical linkage as the level switch is magnetically actuated. The float lever pivoted within the body moves when the process liquid displaces the float. A magnet on the opposite end of the float lever controls a second magnet on the switch actuating lever located in the switch housing. </p> <p><strong>Features </strong> </p> <ul><li>Leak proof lower body machined from bar stock </li> <li>Choice of models for direct side wall mounting or mounted in a tee to act as an external float chamber </li> <li>Weatherproof </li> <li>Explosion-proof </li> <li>Electrical assembly can be easily replaced without removing the unit from the installation so that the process does not have to be shut down </li> <li>Sensitive to level changes of less than 1/2" (12 mm). </li> </ul> <p><strong>Applications </strong> </p> <ul> <li>Direct pump control for maintaining level </li> <li>Automatic tank dump operations </li> <li>Level control </li> <li>Valve control </li> <li>Level alarm in sumps, scrubber systems, hydro-pneumatic tanks, boilers, and water/ wastewater treatment processes </li> </ul> <p><strong>Approvals </strong> </p> <ul><li>ATEX Certificate </li> <li>ATEX QAN </li> <li>CE Approval (L6) </li> <li>CSA Approval-Industrial Control Equipment </li> <li>IECEx Certificate </li> <li>UL-Switches </li> </ul>
tierPrice1411.8

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comL6EPB-B-D-3-A1-211 @ $411.80
heavydutydepot.comL6EPB-B-D-3-A1-211 @ $395.80
MegadepotL6EPB-B-D-3-A111 @ $395.80
