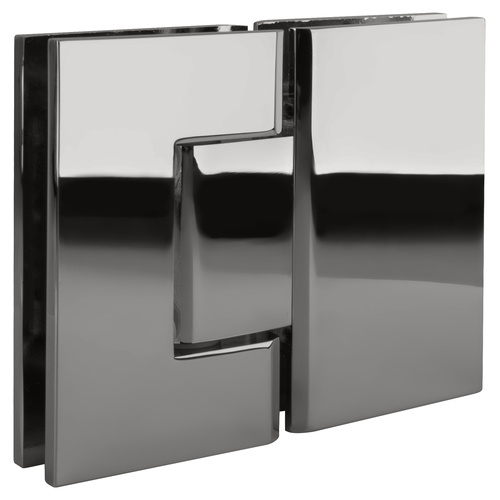

CRL ALUM-GEN580CH-VCP-1 Chrome Geneva 580 Series 180 Degree Glass-To-Glass Hinge With 5 Degree Offset

CRL-USALUM . ALUM-GEN580CH-VCP-1

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerCRL-USALUM
Attribute00, Attribute193-1/2
Attribute012-3/16" (56 mm)
Attribute02, Attribute08Polished Chrome
Attribute03, Attribute18Glass To Glass
Attribute04Brass
Attribute055/16 To 1/2
Attribute06Square
Attribute07No
Attribute09, Attribute16, Attribute212-3/16
Attribute10, Attribute11Yes
Attribute12, Attribute2428
Attribute13, Attribute2332
Attribute14, Attribute20, Weight120
Attribute15, Attribute2280
Attribute17180
AttributeKey00Height
AttributeKey01, width_AttribWidth
AttributeKey02Finish
AttributeKey03Mounting Type
AttributeKey04Material
AttributeKey05Glazing Thickness
AttributeKey06Edge Profile
AttributeKey07Adjustable
AttributeKey08Finish/Color
AttributeKey09Width - Sidelite Portion (Inches)
AttributeKey10Self-Centering
AttributeKey115 Degree Pre-Set
AttributeKey12Maximum Door Width - 2 Hinges (Inches)
AttributeKey13Maximum Door Width - 3 Hinges (Inches)
AttributeKey14, Weight_AttribMaximum Door Weight - 3 Hinges (Pounds)
AttributeKey15Maximum Door Weight - 2 Hinges (Pounds)
AttributeKey16Width - Door Portion (Inches)
AttributeKey17Glass To Glass Angle (Degrees)
AttributeKey18Mounting Style
AttributeKey19Height (Inches)
AttributeKey20Max Dr Weight - 3 Hinges (Lbs)
AttributeKey21Width - Sidelite Portion (Inch
AttributeKey22Max Dr Weight - 2 Hinges (Lbs)
AttributeKey23Max Dr Width - 3 Hinges (Inch)
AttributeKey24Max Dr Width - 2 Hinges (Inch)
CategoryIdL3180 Degree Glass-to-Glass Mount Hinges
CategoryL1Bathroom Hardware
CategoryL2Shower Door Hinges & Hinge Replacement Parts
DimensionUnitinch
Extra Product NameCRL ALUM-GEN580CH-VCP-1 Chrome Geneva 580 Series 180 Degree Glass-To-Glass Hinge With 5 Degree Offset
WeightUnitlbs
atoms, moq, multiple, tierMinQty11
extendedQty, qtyInStock0
MPNALUM-GEN580CH-VCP-1
qtySourceupdateFromUrlEntry
snippet<br/> The <b>CRL Geneva Series</b> of professional Hinges is able to accommodate 5/16" (8 mm) to 1/2" (12 mm) glass. A variety of six styles gives design flexibility, including three different Wall Mount and three different Glass-to-Glass types. Geneva Hinges are self-centering and contain a Reversible 5 degree Pivot Pin. In addition, Custom Pivot Pins are available to accommodate "off-angle" installations. Made of solid brass with all moving parts (pins and springs) in stainless steel.<br/><b>Standard Reversible Pivot Pin:</b> Each Geneva Hinge contains a Reversible Pivot Pin. One side of the Pin is marked 90 Degrees. The opposite side is marked 85 Degrees. Standard Geneva Hinges come with the 90 Degrees side activated. Offset Models come with the Pin pre-set to 85 Degrees (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.<br/><b>Custom Pivot Pin:</b> Custom Pivot Pins (Cat. No. GENP1N) are available to accommodate "off-angle" installations. If the 5 Degree Reversible Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degrees). If using the Custom Pivot Pin, contact our Technical Sales Shower Door Department. Your glass sizes and the aesthetics of the enclosure may be affected by the use of the Custom Pivot Pin.<br/> Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).<br/> Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).<br/><b>SPECIFICATIONS:</b><br/><b>Glass Thickness:</b> 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass<br/><b>Special Feature:</b> Offers choice of Standard Model factory set at standard 0 degree closing position, or 5 degree Pre-Set Model for tighter closure into shower interior.<br/><b>Construction:</b> Solid Brass <br/><b>Hinge Swings:</b> 90 degree in and 90 degree Out<br/><b>Closing Type:</b> Self-Centering when within 15 degree of Closed Position<br/><b>Cut-Out Required Includes:</b> Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.<br/> Custom finishes are available on request. Contact Technical Sales Shower Door Division.<br/><b>Product Warning:</b><br/>CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.<br/> Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.<br/><p>.</p>
tierPrice159
width2.1875

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareALUM-GEN580CH-VCP-1111 @ $59.00
