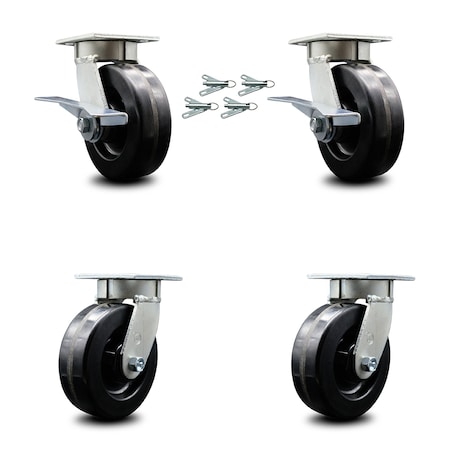

6 Inch Kingpinless Phenolic Wheel Caster Swivel Locks 2 Brakes SCC, 4PK

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Brand, Label, Publisher, StudioService Caster
Attribute00, atoms6
Attribute012
Attribute024" x 4-1/2"
Attribute037-1/2"
Attribute046" x 2"
Attribute053/8" (hardware not included)
Attribute06(2) Swivel caster w/side lock brake & bolt on swivel lock & (2) swivel casters w/bolt on swivel locks
Attribute074800
Attribute08, Model, ModelNumber, Model_numberSeries#KP30
Attribute09, Material, MaterialTypePhenolic
Attribute104 Bolt on Swivel Locks & 2 Top Lock Brakes
Attribute112-5/8" x 3-5/8" to 3" x 3"
Attribute1290D
Attribute13-50 degrees F to 250 degrees F
Attribute14Top Plate
Attribute15Bright Zinc Plated Finish
Attribute16Roller Bearing
AttributeKey00, length_AttribWheel Dia.
AttributeKey01, width_AttribWheel Width
AttributeKey02Plate Size
AttributeKey03, height_AttribMounting Height
AttributeKey04Size
AttributeKey05Bolt Size
AttributeKey06Type
AttributeKey07Capacity (Lb.)
AttributeKey08Series
AttributeKey09Material
AttributeKey10Caster Swivel Lock Type
AttributeKey11Plate Caster Bolt Hole Pattern
AttributeKey12Durometer
AttributeKey13Caster Temp. Range
AttributeKey14Caster Mounting Type
AttributeKey15Finish
AttributeKey16Bearing Type
CategoryId, CategoryIdL46740
CategoryIdL1, CategoryIdL214394
CategoryIdL34473
CategoryL1Material Handling
CategoryL2Casters & Wheels
CategoryL3Casters
CategoryL4Plate Casters
DimensionUnitinch
Extra Product Name6 Inch Kingpinless Phenolic Wheel Caster Swivel Locks 2 Brakes SCC, 4PK
UPCNone
WeightUnitlbs
diameter, length6.0
extendedLead26
extendedQty-2
height7.5
jsonUrlData924526ffbdad25e5923b
moq, multiple, tierMinQty1, Item_package_quantity, PackageQuantity1
MPN, PartNumber, Part_numberSCC-KP30S620-PHR-SLB-BSL-2-BSL-2
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG705436538
tierPrice1582.26
urlhttps://www.zoro.com/service-caster-6-inch-kingpinless-phenolic-wheel-caster-swivel-locks-2-brakes-scc-4pk-scc-kp30s620-phr-slb-bsl-2-bsl-2/i/G705436538/
width2.0
ASINB08K1LXZR3 B08KHKX7JH
AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
Amount0.00
AsinB08K1LXZR3
Bullet_pointBrake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster. Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing. These Service Caster Series #KP30 Phenolic casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height. Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on. Weight capacity ranges from 800 lbs on the 4” caster, 1000 lbs on the 5”, 1200 lbs on the 6” and 1250 lbs. on the 8”.
ClassificationId511228
Color4 Swivel w/2 Brakes & 4 Swivel Locks
Currency, CurrencyCodeUSD
DisplayNameHardware
FetchTime1702244088 1704821403
Height, Width1000 500 75
ItemClassificationBASE_PRODUCT
ItemName, Item_name, TitleKingpinless Phenolic Swivel Top Plate Caster Set 4 w/6" x 2" Black Wheels-Includes 2 Swvl w/Brakes and Bolt on Swvl Lcks& 2 Swvl w/Bolt on Swvl Lcks-4800 lbs Total Cpty- Service Caster Brand
Item_type_keywordplate-casters
KeywordSCC-KP30S820-PHR-SLB-BSL-2-SLB-2
Linkhttps://m.media-amazon.com/images/I/4111hD92qrL._SL75_.jpg https://m.media-amazon.com/images/I/4111hD92qrL.jpg https://m.media-amazon.com/images/I/41kJAiM8ntL._SL75_.jpg https://m.media-amazon.com/images/I/41kJAiM8ntL.jpg https://m.media-amazon.com/images/I/512cuDuzdlL._SL75_.jpg https://m.media-amazon.com/images/I/512cuDuzdlL.jpg https://m.media-amazon.com/images/I/51Fe+Qk9ZRL._SL75_.jpg https://m.media-amazon.com/images/I/51Fe+Qk9ZRL.jpg https://m.media-amazon.com/images/I/51ZJdZo5W0L._SL75_.jpg https://m.media-amazon.com/images/I/51ZJdZo5W0L.jpg https://m.media-amazon.com/images/I/51dABpzS7bL.jpg https://m.media-amazon.com/images/I/51zL-ecbp+L._SL75_.jpg https://m.media-amazon.com/images/I/51zL-ecbp+L.jpg https://m.media-amazon.com/images/I/61JwSSIudeL.jpg https://m.media-amazon.com/images/I/61PP01j6zlL.jpg https://m.media-amazon.com/images/I/61RvIelc1tL.jpg https://m.media-amazon.com/images/I/61j656hZH8L.jpg https://m.media-amazon.com/images/I/71+KahgeiYL.jpg
List_price0.0
Load_capacity1200.0
Marketplace_idATVPDKIKX0DER
Name, ThemeSIZE_NAME/COLOR_NAME
NumberOfItems, Number_of_items4
ParentAsinsB08KHKX7JH
ProductGroup, WebsiteDisplayGroupNameBISS Basic
ProductType, ProductTypeNameWHEEL
Product_descriptionListing is for a set of four (4) Service Caster Series #KP30 casters, two (2) swivel casters with side lock brakes & bolt on swivel locks and two (2) swivel casters with a bolt on swivel locks, with 6" diameter by 2" wide phenolic wheels capable of supporting a total weight of 4,800 lbs. (1,200 lbs./caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster Series KP30 phenolic wheel casters. The Service Caster Series KP30 is ideal for material handling, carts, shop projects and industrial equipment. The phenolic resin wheels are highly resistant to impact damage, providing protection for floors in commercial and industrial settings. Not only are they resistant to water, oil, and grease, but because they are non-metallic, are also spark proof. Featuring a Kingpinless hot forged ASTM1045 steel design that increases caster durability and integrity, the series KP30 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features 3/8” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series KP30 casters are finely crafted with zinc plating, grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series KP30, keeping you moving forward.
Product_site_launch_date2020-09-24T19:59:35.406Z
Size6" Wheel
Supplier_declared_dg_hz_regulationnot_applicable
TypeVARIATION
URLhttps://m.media-amazon.com/images/I/4111hD92qrL._SL75_.jpg
Unitpounds
Unitspixels
VariantMAIN PT01 PT02 PT03 PT04 PT05
VariationThemecolor size
WebsiteDisplayGroupbiss_basic_display_on_website
Website_shipping_weight31.1

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG705436538111 @ $582.26

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Kingpinless Phenolic Swivel Top Plate Caster Set 4 w/6" x 2" Black Wheels-Includes 2 Swvl w/Brakes and Bolt on Swvl Lcks& 2 Swvl w/Bolt on Swvl Lcks-4800 lbs Total Cpty- Service Caster Brand
Brand: Service Caster
Listing is for a set of four (4) Service Caster Series #KP30 casters, two (2) swivel casters with side lock brakes & bolt on swivel locks and two (2) swivel casters with a bolt on swivel locks, with 6" diameter by 2" wide phenolic wheels capable of supporting a total weight of 4,800 lbs. (1,200 lbs./caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster Series KP30 phenolic wheel casters. The Service Caster Series KP30 is ideal for material handling, carts, shop projects and industrial equipment. The phenolic resin wheels are highly resistant to impact damage, providing protection for floors in commercial and industrial settings. Not only are they resistant to water, oil, and grease, but because they are non-metallic, are also spark proof. Featuring a Kingpinless hot forged ASTM1045 steel design that increases caster durability and integrity, the series KP30 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features 3/8” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series KP30 casters are finely crafted with zinc plating, grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series KP30, keeping you moving forward.
Details
  • These Service Caster Series #KP30 Phenolic casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height.
  • Weight capacity ranges from 800 lbs on the 4” caster, 1000 lbs on the 5”, 1200 lbs on the 6” and 1250 lbs. on the 8”.
  • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.
  • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.
  • Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing.
Listing
Product groupBISS Basic
Product typeWHEEL
ModelSeries#KP30
Part numberSCC-KP30S620-PHR-SLB-BSL-2-BSL-2
Items per pack4
LabelService Caster
ManufacturerService Caster
