Edwards Signaling Products Door Hldr,surface - 1508-AQN5

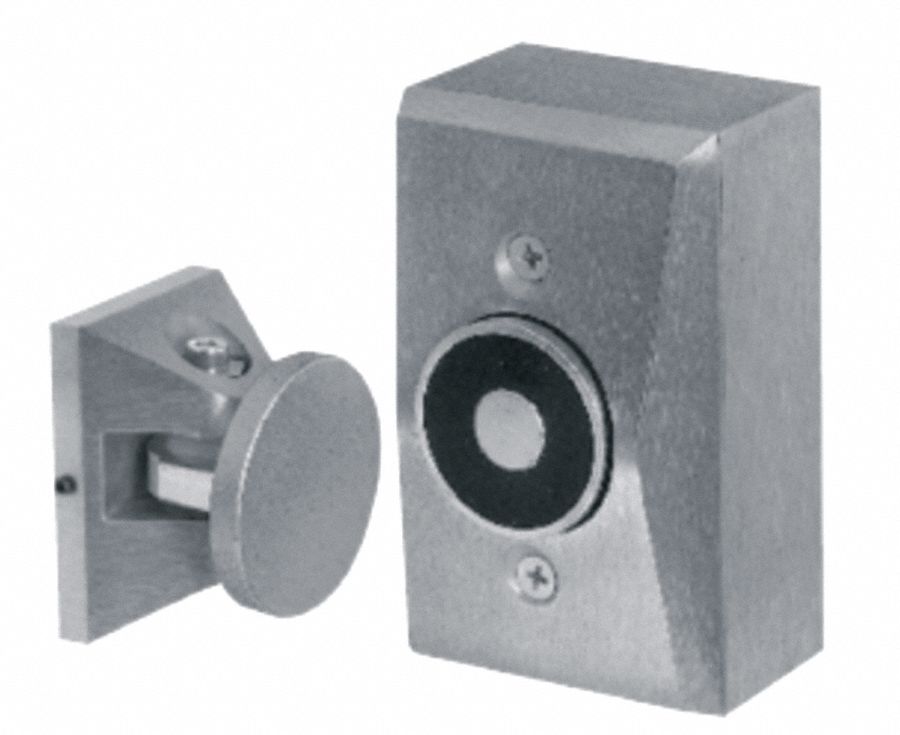

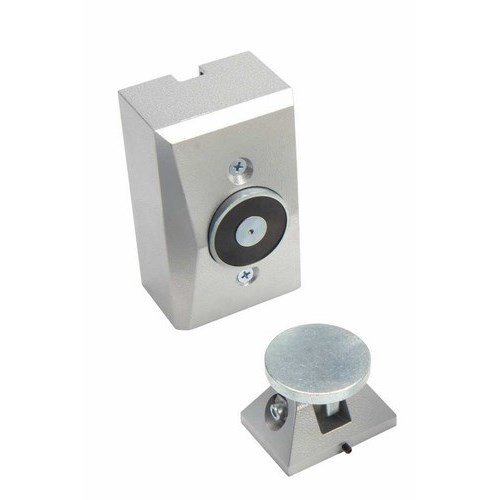

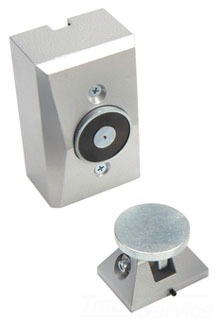

The 1508 Series electromagnetic door holder is a high quality device for use with single doors. The electromagnet assembly is designed for surface wall mounting. The electromagnet is designed to be surface wall mounted inside a standard single gang outlet box (supplied). Field wiring connections are made to the electromagnet inside the electrical box. The catch plate assembly may be mounted to the door either by through-bolting or by using the concealed surface mounting plates.

' Electromagnetic Door Holder, Surface Wall Mount, Amp Draw @ 24V .015 AC/DC, Input Voltage 24 VAC/DC, 120 VAC, Holding Force 25 Lb, Armature Length 1 5/8 In, Armature Width 2 1/4 In, Armature Depth 2 1/4 In, Lock Body Length 4 5/8 In, Lock Body Width 2 3/4 In, Lock Body Depth 2 7/16 In, Powder Epoxy Aluminum Finish, UL Listed, FM Approved, Includes Mounting Hardware '

GE Security Electromagnetic Door Holders are ruggedly constructed and attractively designed. The housing is finished with an aluminum color, durable baked polyester powder paint. The floor or wall section houses the electromagnet while the contact plate attaches to the door. The contact plate has a shock absorbing nylon (swivel) ball which allows the plate to adjust to any door angle. GE Security door releases should be installed wherever doors may be effectively used to confine smoke and fire, or where the release of a self-closing door from a remote location is desirable for other reasons.

Door Holder, 24V AC/DC, 120V AC, 0.015 A, Surface wall mount
