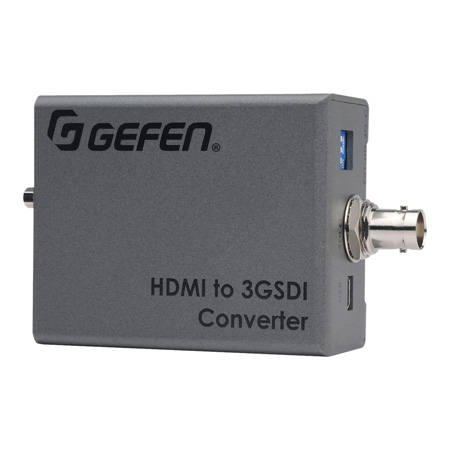

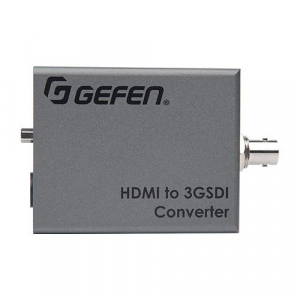

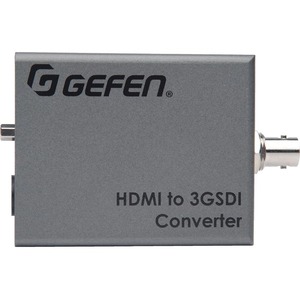

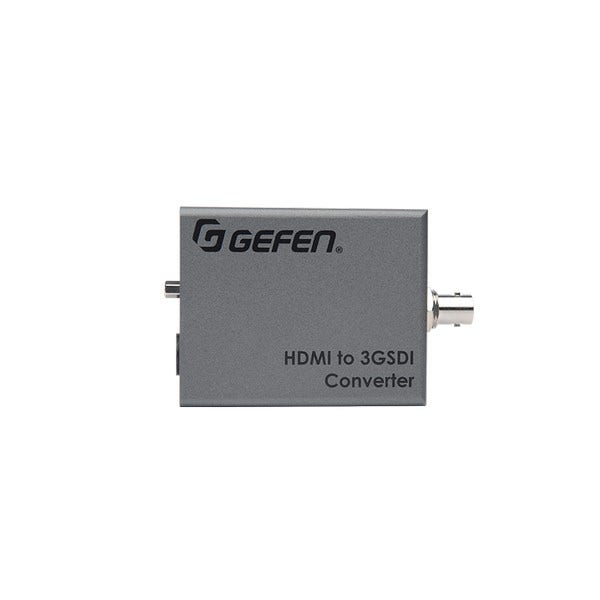

Gefen HDMI to 3GSDI Converter EXT-HD-3G-C - Filmtools

The Excellent Quality HDMI to 3GSDI Converter - The Gefen HD-3G-C converts audio and video from HDMI to 3G-SDI and single link HD-SDI. Resolutions up to 1080p Full HD and audio formats up to 8 channels of LPCM are supported. This product is fully compatible with the Gefen Syner-G software suite. The Gefen Syner-G is a powerful set of software tools specifically designed to help discover, configure/customize, manage, monitor, and upgrade Gefen products. The Gefen EXT-HD-3G-C?s compact enclosure, while light enough to be held in place using double sided Velcro tape, features an ISO standard 1/4-20 attachment provision as well as a detachable surface-mounting bracket. This, along with a flexible power input circuitry capable of accepting a wide range of DC voltages and a locking power supply connector, make the EXT-HD-3G-C ideal for cutting edge mobile A/V applications as well as high performance fixed installations

100% Genuine- Computer/Laptop Replacement or Internal parts<br>Part Number: EXT-HD-3G-C<br>EXT-HD-3G-C<br><br> Maximum Resolution Input: WUXGA (1920 x 1200)<br> Output: 1080p60<br> 10-bit support on input and output<br> Color Spaces Supported HDMI 4:4:4 (YCbCr/RGB), 4:2:2 (YCbCr) up to 12-Bit<br> SDI: Up to 10-bit<br> Audio Support LPCM up to 7.1 channels<br> Clock Speed Max Pixel Clock: 150 MHz<br> Maz TMDS Clock: 225 MHz<br> I/O Connections 1 x Locking HDMI Type A female input<br> 1 x SDI (BNC) female output<br> 1 x USB mini-B<br> 1 x 3-pin locking power connector<br> Dip Switches 3 x DIP configuration switches<br> LED Indicators 1 x Green LED<br> 1 x Blue LED<br> Power Supply 12 VDC nominal (6 to 24 VDC operating range)<br> Power Consumption 3 W maximum<br> Operating Temperature 32 to 122°F / 0 to 50°C<br> Storage Temperature -4 to 185°F / -20 to 85°C<br> Operating Humidity 5 to 90% RH (non-condensing)<br> Storage Humidity 0 to 95% RH (non-condensing)<br> Dimensions 2.9 x 1.2 x 2.3" / 74 x 30 x 59 mm<br> Weight 0.3 lb / 150 g<br><b>Note:</b><br>Picture may not match actual product. Please ensure that your original part number matches this exactly, or check with the manufactuer for compatiblity. Customers are responsible for compatiblity.

The Gefen HD-3G-C converts audio and video from HDMI to 3G-SDI and single link HD-SDI. Resolutions up to 1080p Full HD and audio formats up to 8 channels of LPCM are supported. This product is fully compatible with the Gefen Syner-G software suite. The Gefen Syner-G is a powerful set of software tools specifically designed to help discover, configure/customize, manage, monitor, and upgrade Gefen products. The Gefen EXT-HD-3G-C's compact enclosure, while light enough to be held in place using double sided Velcro tape, features an ISO standard 1/4-20 attachment provision as well as a detachable surface-mounting bracket. This, along with a flexible power input circuitry capable of accepting a wide range of DC voltages and a locking power supply connector, make the EXT-HD-3G-C ideal for cutting edge mobile A/V applications as well as high performance fixed installations.
