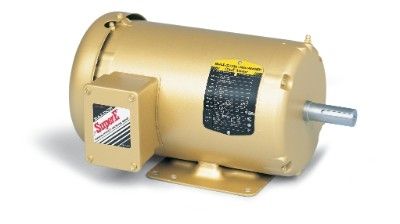

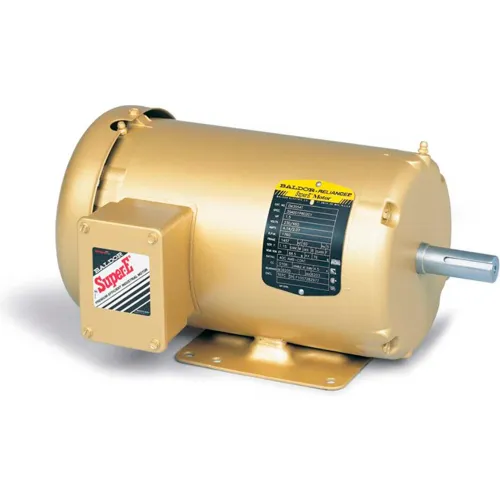

Baldor, EM3611T-G, 3HP, Motor w/Aegis Shaft Grounding Ring

Baldor EM3611T-G3HP1760RPM3PH60HZ182T3631MTEFCF1

THIS LISTING IS FOR ( 1 ) PIECE: EM3611T-G - ABB - BALDOR - 3HP,1760RPM,3PH,60HZ,182T,3632M,TEFC,F1 - NEW!

Baldor Electric, EM3611T-G, 3HP, 1760RPM, 3PH, 460V;230V;208V, 182T Frame, Standard Flange, Foot Mount, TEFC, Motor w/Aegis Shaft Grounding Ring

<p><b>Specifications: </b><ul><li>Motor Category:-Shaft Grounding Motor </li><li> Motor Phase:-3 ph </li><li> Motor Horsepower:-3.00 hp, 3 hp </li><li> Synchronous RPM:-1800 rpm </li><li> Motor Supply Voltage:-208-230/460 V </li><li> Frame Size:-182T </li><li> Enclosure Type:-TEFC (Totally Enclosed Fan Cooled) </li><li> Frequency Rating:-60 Hz </li><li> Duty / Condition Type:-Continuous Duty </li><li> Mounting Type:-Footed </li><li> Full Load Current:-9.00–8.40 / 4.20 A </li><li> Full Load Efficiency:-89.50 % </li><li> Amps @ Voltage:-9.0 A @ 208 V; 8.4 A @ 230 V; 4.2 A @ 460 V </li><li> Volts @ Frequency:-208 V @ 60 Hz; 230 V @ 60 Hz; 460 V @ 60 Hz </li><li> Shaft Diameter:-1.13 in </li><li> Overall Length (C-Dimension):-16.54 in </li><li> Frame Material:-Steel </li><li> Insulation Class:-H </li><li> Service Factor:-1.15 </li><li> Standards Met:-UR, CSA EEV, CSA </li><li> Weight:-74 lbs </li><li> Harmonization Code:-8501.52.4000 </li><li> Applications:-Heating, ventilation and air conditioning blower and fan motors, pump motors, and other general purpose applications using an adjustable speed drive. </li><li> Additional Details:-Baldor shaft grounding brush installed internally. Class H insulated motor. Regreasable ball bearings. Dynamically balanced rotors for reduced vibration and quiet operation. All models are Super-E designs which meet NEMA Premium efficiencies, are Inverter Ready, and have a 3-year warranty.</li></ul></p>
