Order SAV-STE3-NO by W.E. Anderson Series SAV-ST Angle Seat Valve - US Mega Store

W.E. Anderson . SAV-STE3-NO

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerW.E. Anderson
Attribute01, Attribute14Gases and liquids compatible with wetted materials
Attribute02, Attribute15Valve Body: AISI 316L Stainless Steel; Plug and Stem: AISI 316L Stainless Steel; Stem O-ring: Fluoroelastomer; Seat and Seal: PTFE
Attribute03, Attribute161-1/2" NPT
Attribute04, Attribute17Max Line Pres., 230 psi, Max Steam Pres., 150 psi
Attribute05, Attribute18Meets ANSI Class VI
Attribute06, Attribute1914 to 356°F (-10 to 180°C)
Attribute08, Attribute21Piston/pneumatic spring
Attribute09, Attribute221/4" BSP
Attribute10, Attribute23Air, water, inert gas
Attribute11, Attribute24Min Pilot Pres.60 psi , Max Pilot Pres.114 psi
Attribute12, Attribute25140°F (60°C)
AttributeKey00, AttributeKey13Valve body
AttributeKey01, AttributeKey14Service
AttributeKey02, AttributeKey15Wetted Materials
AttributeKey03, AttributeKey16Line Sizes
AttributeKey04, AttributeKey11, AttributeKey17, AttributeKey24Pressure Limits
AttributeKey05, AttributeKey18Flow Leakage
AttributeKey06, AttributeKey19Temperature Limits
AttributeKey07, AttributeKey20Actuator
AttributeKey08, AttributeKey21Type
AttributeKey09, AttributeKey22Pilot Connections
AttributeKey10, AttributeKey23Pilot Media
AttributeKey12, AttributeKey25Temperature Limit
CategoryL1Process Control & Automation
CategoryL2Valves
CategoryL3Pneumatic
CategoryL4W.E. Anderson SAV-STE3-NO
ConditionNEW
Extra Product NameOrder SAV-STE3-NO by W.E. Anderson Series SAV-ST Angle Seat Valve - US Mega Store
moq, multiple, tierMinQty11
MPN, SKUSAV-STE3-NO
qtyInStockContact Us

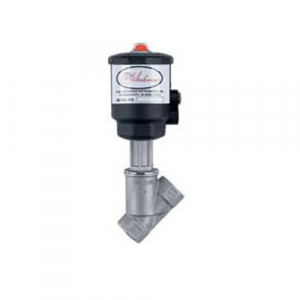

snippet<p><strong>W.E. Anderson, SAV-STE3-NO, Series SAV-ST Angle Seat Valve, Stainless Steel, 1-1/2" NPT, 3-9/16" Actuator Diameter </strong> </p> <p><strong>Save space while maintaining flow rates </strong> with the compact Series SAV-ST Angle Seat Valve. The pneumatic, externally piloted angle seat valve is operated by a single acting actuator with a mechanical spring for fail-safe operation. Bi-directional valves (normally closed) are designed for special applications that require flow in both directions and incorporate an anti-water hammer design for liquid applications flowing under the seat. Normally open valves can also be used to prevent water hammer on valve closure in liquid applications. </p> <p>Constructed of investment case stainless steel and PTFE seals, the Series SAV-ST can be used in most gas, liquid, and steam applications. Integral heat sinks dissipate heat protecting the polyamide actuator, ensuring longer life. </p> <p>The Series SAV-ST can be mounted in any position. For added flexibility, the actuator housing rotates 360 degrees for positioning of the pressure ports. Standard visual indicator shows open or closed position. </p>
tierPrice11224

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comSAV-STE3-NO1Contact Us11 @ $1224.00
heavydutydepot.comSAV-STE3-NO111 @ $1227.00
MegadepotSAV-STE3-NO11
