Order 43300-10CM by Dwyer Capsu-Photohelic Switch / Gages - US Mega Store

Dwyer . 43300-10CM

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDwyer
Attribute00, Attribute14Compatible gases and liquids
Attribute01, Attribute15±3% of FS at 70°F (21.1°C)
Attribute02, Attribute16-20 Hg to 500 psig (-0.677 to 34.5 bar)
Attribute03, Attribute1720 to 120°F (-6.67 to 48.9°C)
Attribute04, Attribute181/4" female NPT
Attribute05, Attribute194" (101.6 mm.) dial face / 5" (127 mm.) O.D. x 9-3/16" (233.36 mm.)
Attribute06, Attribute205 lb. 8 oz (2.49 kg)
Attribute07, Attribute21Each setpoint has 2 form C relays (DPDT)
Attribute08, Attribute22±1% of FS
Attribute09, Attribute2310 A at 120 VAC, 6 A at 240 VAC, 60 Hz res. 10 A at 28 VDC
Attribute10, Attribute24Screw terminals
Attribute11, Attribute25120 VAC, 50 / 60 Hz
Attribute12, Attribute26Diaphragm in vertical position
Attribute13, Attribute27Adjustable knobs on face
AttributeKey00, AttributeKey14Service
AttributeKey01, AttributeKey15Accuracy
AttributeKey02, AttributeKey16Pressure Limits
AttributeKey03, AttributeKey17Temperature Limits
AttributeKey04, AttributeKey18Process Connections
AttributeKey05, AttributeKey19Size
AttributeKey06, AttributeKey20, Weight_AttribWeight
AttributeKey07, AttributeKey21Switch Type
AttributeKey08, AttributeKey22Repeatability
AttributeKey09, AttributeKey23Electrical Rating
AttributeKey10, AttributeKey24Electrical Connections
AttributeKey11, AttributeKey25Power Requirements
AttributeKey12, AttributeKey26Mounting Orientation
AttributeKey13, AttributeKey27Set Point Adjustment
CategoryL1Test Equipment
CategoryL2Meters
CategoryL3Pressure Meters
CategoryL4Gage
ConditionNEW
Extra Product NameOrder 43300-10CM by Dwyer Capsu-Photohelic Switch / Gages - US Mega Store
Weight5
WeightUnitlbs
moq, multiple, tierMinQty11
MPN, SKU43300-10CM
qtyInStockContact Us

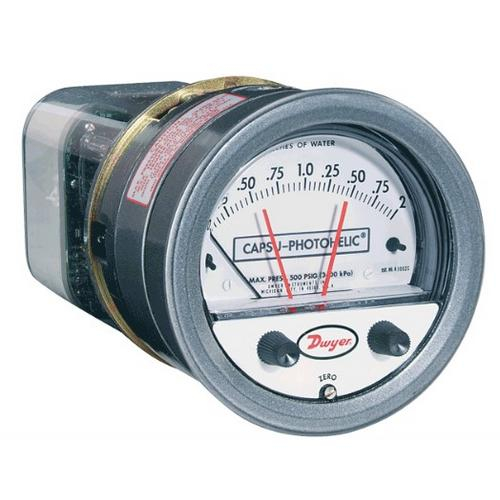

snippet<p><strong>Dwyer Instruments, 43300-10CM, Capsu-Photohelic Switch / Gages, 5 - 0 - 5 cm. w.c. </strong> </p> <p><strong>Features: </strong> </p> <ul><li>Gage capsule permits high-pressure usage with small differentials </li> <li>Zero and range adjustments outside of gage means no disassembly in normal service </li> <li>Time-proven, simple, frictionless movement that permits full scale readings as low as 0.5 in w.c. </li> <li>Photo-electronic relays provide fast-acting switching with variable deadband control for chatter-free operation </li> </ul> <p><strong>Applications: </strong> </p> <ul><li>Pump control </li> <li>Pumping systems </li> <li>Waste water </li> <li>Compatible liquid or gas applications </li> </ul> <p><strong>Capsu-Photohelic Switch / Gage </strong> function as versatile, highly repeatable pressure switch combined with a precise pressure gage employing the time-proven Magnehelic gage design. The Capsu-Photohelic switch / gage employs an encapsulated sensing element for use with both liquids and gases at pressures to 500 psig (34 bar). Two photo-transistors actuated, DPDT relays are included for low/high limit control. Easy to adjust set point indicators are controlled by knobs located on the gage face. Individual set point deadband is one pointer width - less than 1% of full scale. Set points can be interlocked to provide variable deadband - ideal for control of pumps. </p>
tierPrice11557

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.com43300-10CM1Contact Us11 @ $1557.00
Megadepot43300-10CM11
cappusa.com4124478111 @ $0.00
blackhawksupply.com43300-10CM1Get a Quote1
alliedcontrols.com43300-10CM1Factory Stock11 @ $1968.75
Transcat43300-10CM111 @ $1844.00
Radwell43300-10CM11
Galco43300-10CM-DWYR111 @ $1500.00
