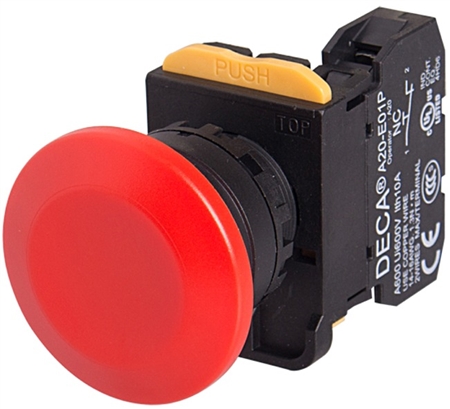

The Deca A20B-M4E20R 22 mm momentary push button has a red mushroom head with a 2NO contact arrangement. Not illuminated. Rated IP 65

Deca . A20B-M4E20R

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDeca
Attribute00Plastic
Attribute01Momentary
Attribute0240mm Dia. Mushroom Head, Red
Attribute032NO
Attribute04Silver
Attribute05250VAC
Attribute0610A
Attribute07600V
Attribute083V AC/DC x 3mA
Attribute09Max. 50 mOhm
Attribute10100 MOhm at 500VDC
Attribute112500 VAC for 1 min
Attribute125-55Mhz, amplitude: 0.5mm (Operation Extremes), 50Mhz, amplitude 1.5mm (Damage Extremes)
Attribute13Operation Extremes: 100m/s
Attribute145,000,000 (1 contact), 1,000,000 (2 contacts)
Attribute15250,000 (1 contact), 100,000 (2 contacts)
Attribute1645-85% RH
Attribute17IP 65
Attribute18UL & CUL Listed, CE
AttributeKey00Bezel
AttributeKey01Push Button Type
AttributeKey02Push Button Shape & Color
AttributeKey03Contact Arrangement
AttributeKey04Contact Material
AttributeKey05Rated Insulation Voltage
AttributeKey06Thermal Current
AttributeKey07Max Voltage
AttributeKey08Min Applicable Load
AttributeKey09Contact Resistance
AttributeKey10Insulation Resistance
AttributeKey11Dielectric Strength
AttributeKey12Vibration Resistance
AttributeKey13Shock Resistance
AttributeKey14Mechanical Durability
AttributeKey15Electrical Life
AttributeKey16Ambient Humidity
AttributeKey17Degree of Protection
AttributeKey18Approvals
Weight0.1
WeightUnitlbs
moq, multiple, tierMinQty11
MPN, SKUA20B-M4E20R
qtyInStock0
snippetThe Deca A20B-M4E20R 22 mm momentary push button has a red mushroom head with a 2NO contact arrangement. Not illuminated. Rated IP 65
tierPrice110.35

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Products For AutomationA20B-M4E20R111 @ $10.35
