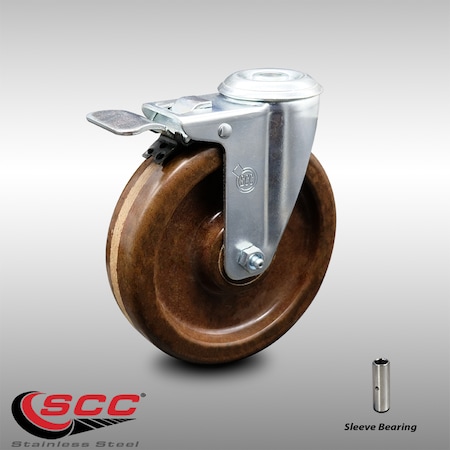

5 Inch SS High Temp Phenolic Wheel Swivel Bolt Hole Caster with Total Lock Brake

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Brand, Label, Publisher, StudioService Caster
Attribute00, atoms5
Attribute01, width1.25
Attribute026-1/8"
Attribute035" x 1-1/4"
Attribute04Plain Bore
Attribute05, Attribute13Total lock brake
Attribute06300
Attribute0790D
Attribute08, Material, MaterialTypeHigh Temperature Phenolic
Attribute09475 degrees F continuous usage and 525 degrees F intermittent usage
Attribute10swivel caster w/ total lock brake
Attribute11Bolt Hole
Attribute12, Model, ModelNumber, Model_numberSeries #20
Attribute14Polished Stainless Steel
AttributeKey00, length_AttribWheel Dia.
AttributeKey01, width_AttribWheel Width
AttributeKey02, height_AttribMounting Height
AttributeKey03Size
AttributeKey04Wheel Bearing Type
AttributeKey05Features
AttributeKey06Load Capacity
AttributeKey07Durometer
AttributeKey08Material
AttributeKey09Caster Temp. Range
AttributeKey10Type
AttributeKey11Caster Mounting Type
AttributeKey12Series
AttributeKey13Caster Swivel Lock Type
AttributeKey14Finish
CategoryId, CategoryIdL410640
CategoryIdL1, CategoryIdL214394
CategoryIdL34473
CategoryL1Material Handling
CategoryL2Casters & Wheels
CategoryL3Casters
CategoryL4Bolt Hole Casters
DimensionUnitinch
Extra Product Name5 Inch SS High Temp Phenolic Wheel Swivel Bolt Hole Caster with Total Lock Brake
UPC670533927701
WeightUnitlbs
diameter, length, Decimal_value5.0
extendedLead26
extendedQty-2
height6.125
jsonUrlData924526ffbdad25e5923b
moq, multiple, tierMinQty1, Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity1
MPN, Keyword, PartNumber, Part_numberSCC-SSBHTTL20S514-PHSHT
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG305433098
tierPrice1115.54
urlhttps://www.zoro.com/service-caster-5-inch-ss-high-temp-phenolic-wheel-swivel-bolt-hole-caster-with-total-lock-brake-scc-ssbhttl20s514-phsht/i/G305433098/
ASINB07Y5LH3TC B0896WZVR2
AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
Amount0.00
AsinB07Y5LH3TC
Bullet_pointAll casters feature a 1/2” diameter bolt hole. Bolt hole casters have a hole in the rivet which can accept a bolt or a customized stem for any type of mounting requirement. Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position. Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing. These Service Caster Series #20 High Temperature Phenolic casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height. Weight Capacity: 300 lbs Capacity/Caster
ClassificationId511228
ColorSwivel - Total Lock Brake - Brown
Currency, CurrencyCodeUSD
DisplayNameHardware
Externally_assigned_product_identifier, Identifier0670533927701 670533927701
FetchTime1697531702 1704416052
Height, Width1000 500 75
IdentifierTypeEAN UPC
ItemClassificationBASE_PRODUCT
ItemName, Item_name, TitleStainless Steel High Temp Phenolic Swivel Bolt Hole Caster w/5" x 1.25" Brown Wheel & Total Locking Brake - 300 lbs Capacity/Caster - Service Caster Brand
Item_type_keywordplate-casters
Linkhttps://m.media-amazon.com/images/I/411o2CyXs3L._SL75_.jpg https://m.media-amazon.com/images/I/411o2CyXs3L.jpg https://m.media-amazon.com/images/I/41SdtXIIAdL._SL75_.jpg https://m.media-amazon.com/images/I/41SdtXIIAdL.jpg https://m.media-amazon.com/images/I/514fZWHE7jL._SL75_.jpg https://m.media-amazon.com/images/I/514fZWHE7jL.jpg https://m.media-amazon.com/images/I/51tmItdS7bL._SL75_.jpg https://m.media-amazon.com/images/I/51tmItdS7bL.jpg https://m.media-amazon.com/images/I/51v7LTWYMML.jpg https://m.media-amazon.com/images/I/61LX3RSf6zL.jpg https://m.media-amazon.com/images/I/61WbyrlmBIL.jpg https://m.media-amazon.com/images/I/71YLlguZx+L.jpg
List_price0.0
Load_capacity300.0
Marketplace_idATVPDKIKX0DER
Name, ThemeSIZE_NAME/COLOR_NAME
ParentAsinsB0896WZVR2
ProductGroup, WebsiteDisplayGroupNameBISS Basic
ProductType, ProductTypeNameINDUSTRIAL_CASTERS
Product_descriptionListing is for one (1) Service Caster Series #20 stainless steel swivel caster with a 5" diameter by 1-1/4" wide high temp phenolic wheel and a bolt hole with total lock brake capable of supporting 300 lbs./caster.When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 20 sleeve bearing stainless steel hi temp phenolic casters. The Service Caster Series #20 is ideal for bakery racks, light and medium duty material handling, carts, equipment, and shop projects. The high temp phenolic wheels- quieter than comparable steel wheels- have a high resistance to impact damage, providing protection for floors in commercial and industrial settings. Sleeve bearings provide a metal sleeve inserted in a wheel to rest directly on the axle. This option is only recommended when rolling ease is less critical. This caster is ideal for use in high temperatures associated with baking, performing consistently in temperature ratings of 475°F continuous usage to 525°F intermittent usage. Not only are they resistant to water, oil, and grease, but because they are non-metallic, these wheels are spark proof, keeping you safely moving forward. In contrast to the zinc plated caster, the luxuriously polished stainless steel finish resists rust and corrosion in indoor or outdoor applications where moisture is a factor. Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.
Product_site_launch_date2019-09-20T15:14:59.858Z
Size5" Wheel
Supplier_declared_dg_hz_regulationnot_applicable
TypeVARIATION ean upc
URLhttps://m.media-amazon.com/images/I/411o2CyXs3L._SL75_.jpg
Unitinches pounds
Unitspixels
VariantMAIN PT01 PT02 PT03
VariationThemecolor size
WebsiteDisplayGroupbiss_basic_display_on_website

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG305433098111 @ $115.54

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Stainless Steel High Temp Phenolic Swivel Bolt Hole Caster w/5" x 1.25" Brown Wheel & Total Locking Brake - 300 lbs Capacity/Caster - Service Caster Brand
Brand: Service Caster
Listing is for one (1) Service Caster Series #20 stainless steel swivel caster with a 5" diameter by 1-1/4" wide high temp phenolic wheel and a bolt hole with total lock brake capable of supporting 300 lbs./caster.When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 20 sleeve bearing stainless steel hi temp phenolic casters. The Service Caster Series #20 is ideal for bakery racks, light and medium duty material handling, carts, equipment, and shop projects. The high temp phenolic wheels- quieter than comparable steel wheels- have a high resistance to impact damage, providing protection for floors in commercial and industrial settings. Sleeve bearings provide a metal sleeve inserted in a wheel to rest directly on the axle. This option is only recommended when rolling ease is less critical. This caster is ideal for use in high temperatures associated with baking, performing consistently in temperature ratings of 475°F continuous usage to 525°F intermittent usage. Not only are they resistant to water, oil, and grease, but because they are non-metallic, these wheels are spark proof, keeping you safely moving forward. In contrast to the zinc plated caster, the luxuriously polished stainless steel finish resists rust and corrosion in indoor or outdoor applications where moisture is a factor. Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.
Details
  • These Service Caster Series #20 High Temperature Phenolic casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height.
  • Weight Capacity: 300 lbs Capacity/Caster
  • All casters feature a 1/2” diameter bolt hole. Bolt hole casters have a hole in the rivet which can accept a bolt or a customized stem for any type of mounting requirement.
  • Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
  • Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing.
Listing
Product groupBISS Basic
Product typeINDUSTRIAL_CASTERS
ModelSeries #20
Part numberSCC-SSBHTTL20S514-PHSHT
Items per pack1
LabelService Caster
ManufacturerService Caster
