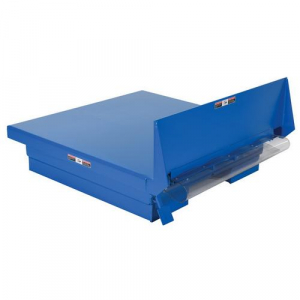

Order UNI-P-5448-4 by Vestil Portable Uni-Tilt, 54" x 48" - US Mega Store

The Portable Uni-Tilt can transport your tilter from workstation to workstation quickly and easily with a fork truck. The unique design reduces fatigue by minimizing repetitive bending and stretching required to obtain components from containers. The platform has a high lip the tilt side and a selector pedal that allows the operator to lift while tilting or tilt then lift. The unit has a hand pendant control standard and optional voltages available. Limited Warranty: 1 year. Uniform Capacity (lbs.): 4000, Platform Width (in.): 54, Platform Length (in.): 48, Level Height (in.): 12, Maximum Tilt Degree: 40, Power Unit: Internal, Lip Height (in.): 12, Motor Horsepower

Unitilt single scissor lift & tilt table is designed to position containers within easy reach of assembly line workers and machine operators. This unique design reduces fatigue by minimizing repetitive bending and stretching required to obtain components from containers. U.S.A. Max. Degree of Tilt 40, Table Type Uni-Tilt Lift & Tilt, HP 2, Platform Height in. 8, Platform Size L x W in. 48 x 54, Overall Dimensions L x W x H in. 51 1/2 x 54 x 24, Raised Height in. 12in. level height, Load Capacity lbs. 4,000. Portable - transform from workstation to workstation Usable fork pockets measure 7 1/2in.W x 2 1/2in.H Capacity 4000 lbs. Platform Size 48in.L x 54in.W Level Height 12in. Maximum Tilt 40 Platform includes a 12in. high lip on tilt side Selector pedal allows the operator to lift while tilting or tilt then lift 2 HP AC power unit with hand pendant control Standard 208-230/460V, 3 phase Integrated maintenance lock Pressure plated pump Pressure compensated flow valve Lowering valve Independent oil return Adjustable upward travel limit switch Model Number: UNI-P-5448-4. Size: 48 Inch. Color: Fatigue. Age Group: Adult.
