Order DA-35-3-7N by Mercoid Series DA-7035N Temperature Switch - US Mega Store

Mercoid . DA-35-3-7N

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMercoid
Attribute00, Attribute17Compatible liquids or gases
Attribute01, Attribute18Bulb and connection: 304 SS
Attribute02, Attribute19Ambient: 180°F (82°C)
Attribute03, Attribute20300 psi (20.6 bar)
Attribute04, Attribute21General purpose
Attribute05, Attribute22±1% of full scale
Attribute06, Attribute23SPDT snap switch
Attribute07, Attribute2410A @ 120/240/480 VAC
Attribute08, Attribute25Screw terminal
Attribute09, Attribute267/8" (22.23 mm) hole for 1/2" (12.7 mm) conduit hub
Attribute10, Attribute273/4" male NPT
Attribute11, Attribute28Vertical and level
Attribute12, Attribute29External knobs for set point and reset point
Attribute13, Attribute305 lb (2.3 kg)
Attribute14, Attribute31Adjustable from minimum in model chart to full range
Attribute15, Attribute326 ft (1.8 m) standard
Attribute16, Attribute33Indication in °F and °C
AttributeKey00, AttributeKey17Service
AttributeKey01, AttributeKey18Wetted Materials
AttributeKey02, AttributeKey19Temperature Limit
AttributeKey03, AttributeKey20Pressure Limit
AttributeKey04, AttributeKey21Enclosure Rating
AttributeKey05, AttributeKey22Repeatability
AttributeKey06, AttributeKey23Switch Type
AttributeKey07, AttributeKey24Electrical Rating
AttributeKey08, AttributeKey25Electrical Connections
AttributeKey09, AttributeKey26Conduit Connection
AttributeKey10, AttributeKey27Process Connection
AttributeKey11, AttributeKey28Mounting Orientation
AttributeKey12, AttributeKey29Set Point Adjustment
AttributeKey13, AttributeKey30, Weight_AttribWeight
AttributeKey14, AttributeKey31Deadband
AttributeKey15, AttributeKey32Capillary
AttributeKey16, AttributeKey33Set Point Scale
CategoryL1Process Control & Automation
CategoryL2Switches
CategoryL3Temperature
CategoryL4Mercoid DA-35-3-7N
ConditionNEW
Extra Product NameOrder DA-35-3-7N by Mercoid Series DA-7035N Temperature Switch - US Mega Store
Weight5
WeightUnitlbs
moq, multiple, tierMinQty11
MPN, SKUDA-35-3-7N
qtyInStock2 Weeks Factory Lead Time

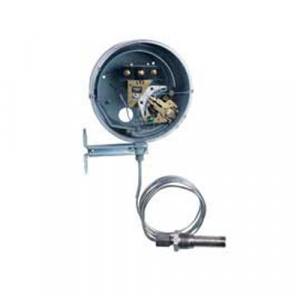

snippet<p><strong>Mercoid, DA-35-3-7N, Series DA-7035N Temperature Switch, 9-51 NO, SPST, 140-300 F </strong> </p> <p><strong>Series DA-7035N Temperature Switch, Mercury Switch Tilt Type, Single Stage Temperature Control with Capillary & Bulb, 9-51 NO, SPST, 140-300 &#176;F </strong> </p> <p><strong>Series DA-7035N Temperature Switches </strong> include the same time-proven switching mechanism used in our Series DA Pressure Switches. Bourdon tube assures high sensitivity and long life. Fully adjustable deadband makes units suitable for a wide range of control applications. Visible, calibrated dial and external adjustments make changing set points simple and fast. </p> <p><strong>Features </strong> </p> <ul><li>Adjustable deadband </li> <li>Snap action switch standard </li> <li>Inert gas activated Bourdon tube </li> <li>No cross ambient temperature effects </li> <li>No bulb elevation correction required </li> <li>Visible dial calibrated in both &#176;F and &#176;C </li> <li>Visible on/off indication </li> </ul>
tierPrice12469

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comDA-35-3-7N12 Weeks Factory Lead Time11 @ $2469.00
MegadepotDA-35-3-7N111 @ $2422.00
