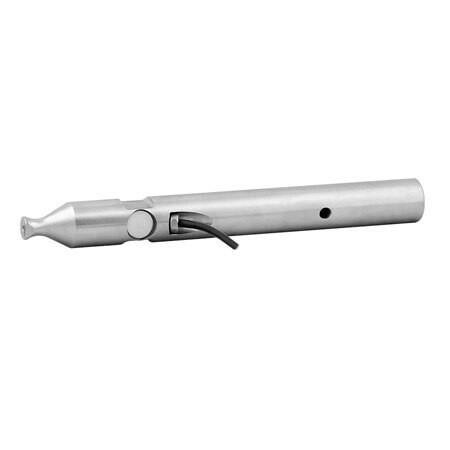

Anyload 563WS-YZ-1.25Klb 1.25K lb Stainless Steel Single Ended Beam Load Cell - Scales Plus

Anyload . 563WS-1.25KLB-YZ

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Attribute00Anyload
Attribute01563WS-1.25Klb-YZ
Attribute02CE, RoHS, and Ex
Attribute031,250 lb
Attribute04150% capacity
Attribute0511.50"
Attribute06, Attribute071.25"
Attribute08#8-32
Attribute09Stainless steel
Attribute10Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
Attribute1110 V (maximum of 15 V)
Attribute122.0 mV/V ?1%
Attribute13350 (? 3) ohms
Attribute14350 (? 7) ohms
Attribute1514?F to 122?F/-10?C to 50?C
Attribute16Environmentally sealed
Attribute17IP67
Attribute186 m
AttributeKey00Manufacturer
AttributeKey01Model
AttributeKey02Approvals
AttributeKey03Capacity
AttributeKey04Safe Overload
AttributeKey05, length_AttribLength
AttributeKey06, height_AttribHeight
AttributeKey07, width_AttribWidth
AttributeKey08Hole Thread
AttributeKey09Construction
AttributeKey10Cable Color Code
AttributeKey11Rated Excitation
AttributeKey12Full Scale Output
AttributeKey13Output Resistance
AttributeKey14Input Resistance
AttributeKey15Compensated Temperature Range
AttributeKey16Seal Type
AttributeKey17IP Rating
AttributeKey18Cable Length
DimensionUnitinch
Extra Product NameAnyload 563WS-YZ-1.25Klb 1.25K lb Stainless Steel Single Ended Beam Load Cell - Scales Plus
height, width1.25
keywordsIndustrial Scales, Digital Scales, Laboratory Balances, Calibration Weights, Cannabis Scales, Jewelry Scales, NTEP Certified Scales, Load Cells
length11.5
moq, multiple, tierMinQty11
MPN, SKU563WS-1.25KLB-YZ
qtyInStock0
snippetScales Plus offers free product support from experienced technicians. Have questions about the Anyload 563WS-1.25Klb-YZ? Contact us for free product support!
tierPrice1426

Distributor offers

SellerSKUMOQIn stockMultiplePrices
scalesplus.com563WS-1.25KLB-YZ111 @ $426.00
