Order ZM2004-AI0100 by Meriam Digital Calibrator, 100 PSI, Absolute - US Mega Store

Meriam . ZM2004-AI0100

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMeriam
Attribute00, Attribute09+/- 0.020% Full Scale + 0.005% of Reading
Attribute01, Attribute10100 PSI (5171.48 mmHg)
Attribute02, Attribute110 to 15, 30, 100, 1000 psi Absolute
Attribute03, Attribute12Offering over 30 measurement units including psi, kPa, mmHg, inH2O, mbar, and user defined units - available with optional MTS
Attribute04, Attribute13Up to 6 digits depending on pressure unit selected
Attribute05, Attribute14Storage: -20 °C to 70 °C (-4 °F to 158 °F), Operating: -10 °C to 50 °C
Attribute06, Attribute151/8'' Female NPT 316SS USB, Meriam Tethered Sensor (MTS) Port, USB
Attribute07, Attribute169.8 in (248.9 mm) x 5.2 in (132.1 mm) x 2.3 in (58.4 mm)
Attribute08, Attribute174 AA batteries
AttributeKey00, AttributeKey09Pressure Accuracy
AttributeKey01, AttributeKey10Pressure ranges
AttributeKey02, AttributeKey11Media-isolated
AttributeKey03, AttributeKey12Measurement Units
AttributeKey04, AttributeKey13Display Resolution
AttributeKey05, AttributeKey14Temperature Specifications
AttributeKey06, AttributeKey15Connections
AttributeKey07, AttributeKey16Dimensions
AttributeKey08, AttributeKey17Power
CategoryL1Test Equipment
CategoryL2Calibrators
CategoryL3Pressure
CategoryL4Meriam ZM2004-AI0100
ConditionNEW
Extra Product NameOrder ZM2004-AI0100 by Meriam Digital Calibrator, 100 PSI, Absolute - US Mega Store
moq, multiple, tierMinQty11
MPN, SKUZM2004-AI0100
qtyInStockContact Us

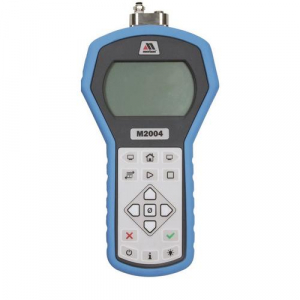

snippet<p><strong>M2004 Series Smart Manometer (Medical) </strong> </p> <p>Meriam's M2004 Digital Calibrator is a portable pressure instrument that offers flexible features to help meet the demand of your everyday pressure measurement needs. The M2004 features NIST traceable accuracy +/- 0.025 % of a Full-Scale standard on each device. Pressure sensors both non-isolated and isolated (316SS) measure absolute, differential, compound. </p> <p>A significant benefit of the M2004 is its ability to measure a second pressure range with the addition of a Meriam Tethered Sensor (MTS). Choose from any available pressure sensor type and range and connect your accessory MTS via a locking tether cable. See our attached data sheet for available pressure ranges. </p> <p>With an easy to use and intuitive interface, the M2004 offers fast and simple operation. Mobile data logging allows for computer-free use when measuring out in the field. </p> <p>Add Data Log Pro to expand on the M2004 data logging capabilities. Data Log Pro adds the ability to store up to 128 log files or 100,000 data points while also giving you the ability to modify data log options and settings. </p> <p><strong>Features </strong> </p> <ul><li>Damping to stabilize fluctuating pressure signals </li> <li>6-digit display resolution </li> <li>MeriSuite CG software Lite installed </li> <li>Mobile Data Logging and computer configuration, calibration and a data logging application. No computer required while taking measurements. </li> <li>One fixed sensor and one optional interchangeable accessory sensor </li> <li>Backlight </li> <li>Leak Test function </li> <li>Battery life display (0% to 100%) </li> <li>USB connection </li> <li>Protective Blue Boot </li> <li>Absolute isolated pressure sensor </li> <li>Min/Max pressure capture and hold function </li> <li>RTD (Temperature) accessory sensor option class A PT 100 available <ul><li>Temperature Accuracy +/- 0.15 + 0.002 ltl C&deg; </li> <li>Measurement range of -50 C&deg; to 250 C&deg; </li> </ul> </li> </ul> <p><strong>Applications: </strong> </p> <ul><li>Very low differential pressure measurement for ventilator instrument testing </li> <li>Sterilizer vacuum measurements </li> <li>Non-Invasive blood pressure instruments </li> <li>Medical gases testing </li> <li>Gas systems leak testing </li> <li>Pressure drop monitoring for filters </li> <li>Monitoring vacuum on condensers or pumps </li> <li>CPAP and BIPAP testing </li> <li>316SS Compatible with most media <ul><li>Liquids </li> <li>Medical gases </li> <li>Pharmaceuticals </li> <li>Biological fluids </li> <li>Sterilization agents </li> </ul> </li> <li>Refrigeration units, freezers, incubators, cryogenics, therapy baths and lab baths (with RTD accessory probe) </li> </ul>
tierPrice11323

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comZM2004-AI01001Contact Us11 @ $1323.00
