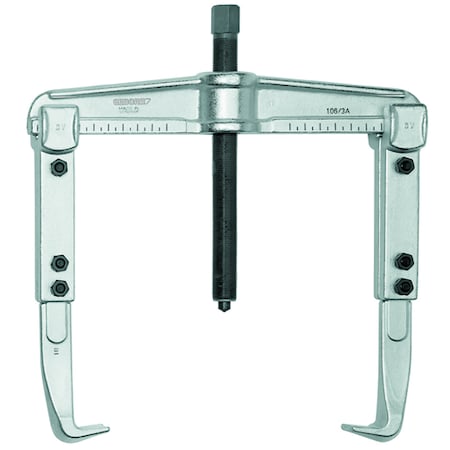

Gedore 1.06/3A-4 Universal puller, 2-arm pattern 350x400 mm - Tillman Tools

1.06/3A-4 Size: 14" x 16" Features: -Universal puller.-2 Arm pattern.-Scale for uniform adjustment of the puller legs.-Allows centered pulling with optimized application of force even when extremely high pulling forces are required.-Strong drop forged design.-Extended legs.-By reversing the legs tool can be used as an internal or external puller.-Comes with extra or replacement legs.-Upgradeable with hydraulic spindle.-Maximum loading: 3, 5, 7.5 and 10 tone.-Spindle size (thread x length): M 14 x1.5 x 140, G 0.5 x 210, G 0.75 x 280 and G 1 x 310.-Hydraulic spindle: 1.06/HSP1/HSP2/HSP3.-Width across flat/actuating hexagon: 0.67", 0.87", 1.06" and 1.42".-Maximum clamping spread external pulling (a, a1): 5.12 ", 5.51", 3.64", 6.3", 7.87", 9.84", 13.78" and 20.47".-Minimum clamping spread internal pulling (a2): 2.76", 2.36", 3.15", 3.54", 4.92" and 7.28".-Maximum clamping spread internal pulling (a2): 7.09", 8.67", 13", 16.54" and 23.62".-Clamping reach: 7.87 ", 12", 16" and 20",.-Thickness of hooked foot at tip (e): 0.12", 0.14" and 0.26".-Width of hooked foot (c): 0.87", 1.18" and 1.42".-Depth of hooked foot (d): 0.47", 0.71" and 1.1".
