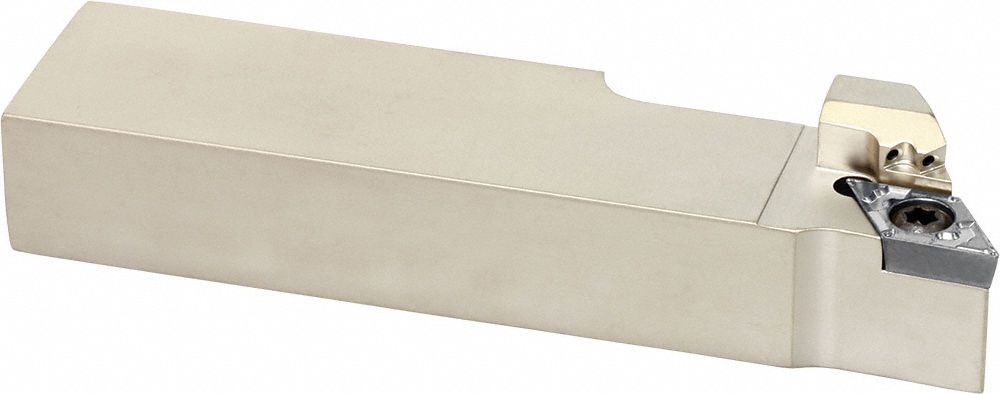

KYOCERA, Indexable Turning Toolholder - 61NX73|SDJCR1220H11FFJCT - Grainger

<li>Toolholder Style: SDJC</li><li>Hand of Holder: Right-Hand</li><li>Rake: Positive</li><li>Series: SDJC-JCT</li><li>Lead Angle (Degree): 93</li><li>[H] Shank Height (Decimal Inch): 0.4724</li><li>[H] Shank Height (mm): 12.00</li><li>[HF] Cutting Edge Height (Decimal Inch): 0.4724</li><li>[HF] Cutting Edge Height (mm): 12.00</li><li>[B] Shank Width (Decimal Inch): 0.7874</li><li>[B] Shank Width (mm): 20.00</li><li>[LF] Functional Length (Decimal Inch): 3.9370</li><li>[LF] Functional Length (mm): 100.00</li><li>[LN] Neck Length (Decimal Inch): 1.1024</li><li>[LN] Neck Length (mm): 28.00</li><li>[WF] Cutting Edge Distance (Decimal Inch): 0.7874</li><li>[WF] Cutting Edge Distance (mm): 20.00</li><li>[WF2/WFS] Cutting Edge Distance Secondary (Decimal Inch): 0.0000</li><li>[WF2/WFS] Cutting Edge Distance Secondary (mm): 0</li><li>[RE] Standard Corner Radius (Decimal Inch): 0.0079</li><li>[RE] Standard Corner Radius (mm): 0.20</li><li>Coolant Through: Yes</li><li>Coolant Pressure Resistance (psi): 2,900</li><li>Insert Holding Method: Screw Clamp</li><li>Insert Shape: 55 Degree Diamond</li><li>[IC] Insert Inscribed Circle (Decimal Inch): 0.3752</li><li>[IC] Insert Inscribed Circle (mm): 9.53</li><li>[S] Insert Thickness (Decimal Inch): 0.1563</li><li>[S] Insert Thickness (mm): 3.97</li><li>Multi-Use Tool: Yes</li><li>Application: Swiss, External Turning, Copying</li><li>Toolholder Material: Steel</li><li>Unit of Measure: Metric</li><li>Compatible Insert Hand: Right-Hand</li><li>Compatible Inserts (Partial): DCGT325…, DCMX325…, DCMT325…, DCET325…, DCGW325…, DCMW325…</li>
