9013FRG2J35 | Pressure Switch: 230 VAC 1HP F + Options | Square D by Schneider Electric

Pressure Switch, Water Pump, Manual Switch Action None, (1) Port, 1/4 in FNPS, Pressure Switch Factory On/Off Setting 50/30 psi, No Pressure Switch Unloader, Pressure Switch Differential 15 to 30 psi, Pressure Switch Range 8 to 65 psi, Pressure Switch Electrical Contact Form DPST, Pressure Switch Action Reverse, NEMA Rating 1, Series 9013FRG, HP @ 1 Phase - 120V 1 hp, HP @ 1 Phase - 240V 1 hp, HP @ 3 Phase - 240V 1 hp, Temp. Range -22 Degrees to 257 Degrees F

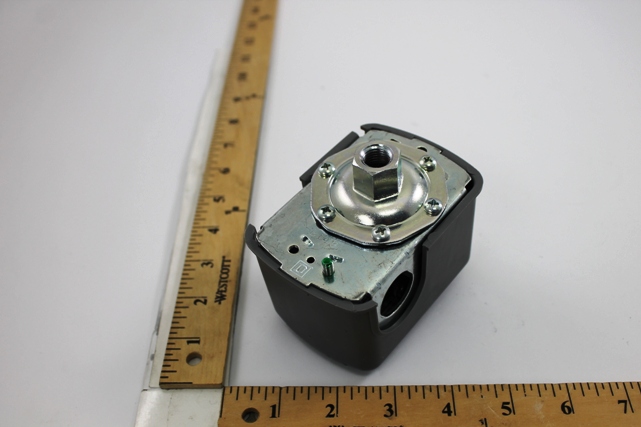

<p><ul><li>This Square D Pumptrol 9013FRG2J35 electromechanical pressure switch with 50-30 psi pressure setting range activates an electrically driven water pump within a power circuit when the adjustable rising and falling thresholds are reached. The NEMA 1 enclosure has a 1/4" NPSF internal fluid connection and screw clamp terminals. The switch works with a 1 hp or less pump. The reverse-acting adjustable differential range is 15-30 psi and the cut-out range is 20-65 psi. This switch includes a copper pulsation plug. The enclosure is National Electrical Manufacturers Association (NEMA) Type 1 and Ingress Protection (IP) 20 rated. The switch is Underwriters Laboratory (UL) Listed and Canadian Standards Association (CSA) Certified. Square D Pumptrol pressure switches are manufactured by Schneider Electric.</li></ul></p><p><b>Specifications: </b><ul><li>Connection Type:FNPS </li><li> Connection Size:1/4" </li><li> Poles:2 </li><li> Min Pressure (PSI):8 </li><li> Max Pressure (PSI):65 </li><li> Action:Reverse Acting </li><li> Close Pressure (PSI):50 </li><li> Open Pressure (PSI):30</li></ul></p>
